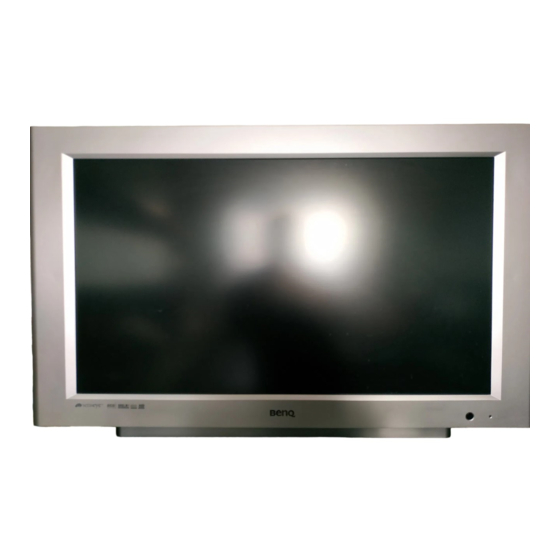

BenQ DV3750 LCD Display

External Speakers Installation Guide

Package contents

Check the contents in the package. If any item is missing or damaged,

contact your place of purchase immediately.

• External speaker x 2

• Screw x 6

• Speaker cable x 2

• Rubber cover x 2

Installing the speakers

1. Turn off the LCD display. Disconnect the display from the power outlet

and remove all connected audio and video signal cables.

2. Place the display on a flat and stable surface and then put a piece of dry,

soft and clean cloth with appropriate size in front of the display. Slowly

tilt the display forward against the cloth until the display completely lies

down.

All manuals and user guides at all-guides.com

• Installation guide x 1

3. Place the speakers against the left

and right sides of the display, and

then align the top and bottom sides

with the display.

Locate the screw holes as indicated

by the white circles in the illustra-

tion.

4. Use a suitable screwdriver to secure

the speakers with the screws.

Página 1 All manuals and user guides at all-guides.com Speaker_E-MX_ES-3750_46.M3504.001.fm Page i Thursday, August 4, 2005 6:16 PM BenQ DV3750 LCD Display External Speakers Installation Guide Package contents 3. Place the speakers against the left and right sides of the display, and Check the contents in the package.
Página 2 To achieve 2.1-channel sound effect, you need to connect connector. an optional subwoofer to the SUBWOOFER output of the display and use it in combination with the DV3750 external speakers. 7. Install the rubber covers onto the speakers.
Página 3 All manuals and user guides at all-guides.com Speaker_E-MX_ES-3750_46.M3504.001.fm Page iii Thursday, August 4, 2005 6:16 PM Pantalla LCD BenQ DV3750 Guía de instalación de las bocinas externas 3. Coloque las bocinas a la izquierda y Contenido suministrado derecha del monitor y luego alinee la parte superior e inferior con la Revise el contenido del paquete.
Página 4 Para lograr los efectos de sonido de canal 2.1, tiene que conector negro. conectar un subwoofer opcional a la salida de SUBWOOFER en la pantalla y usarlo en combinación con las DV3750 bocinas externas. 7. Instale las cubiertas de goma en las bocinas. P/N: 46.M3504.001...
