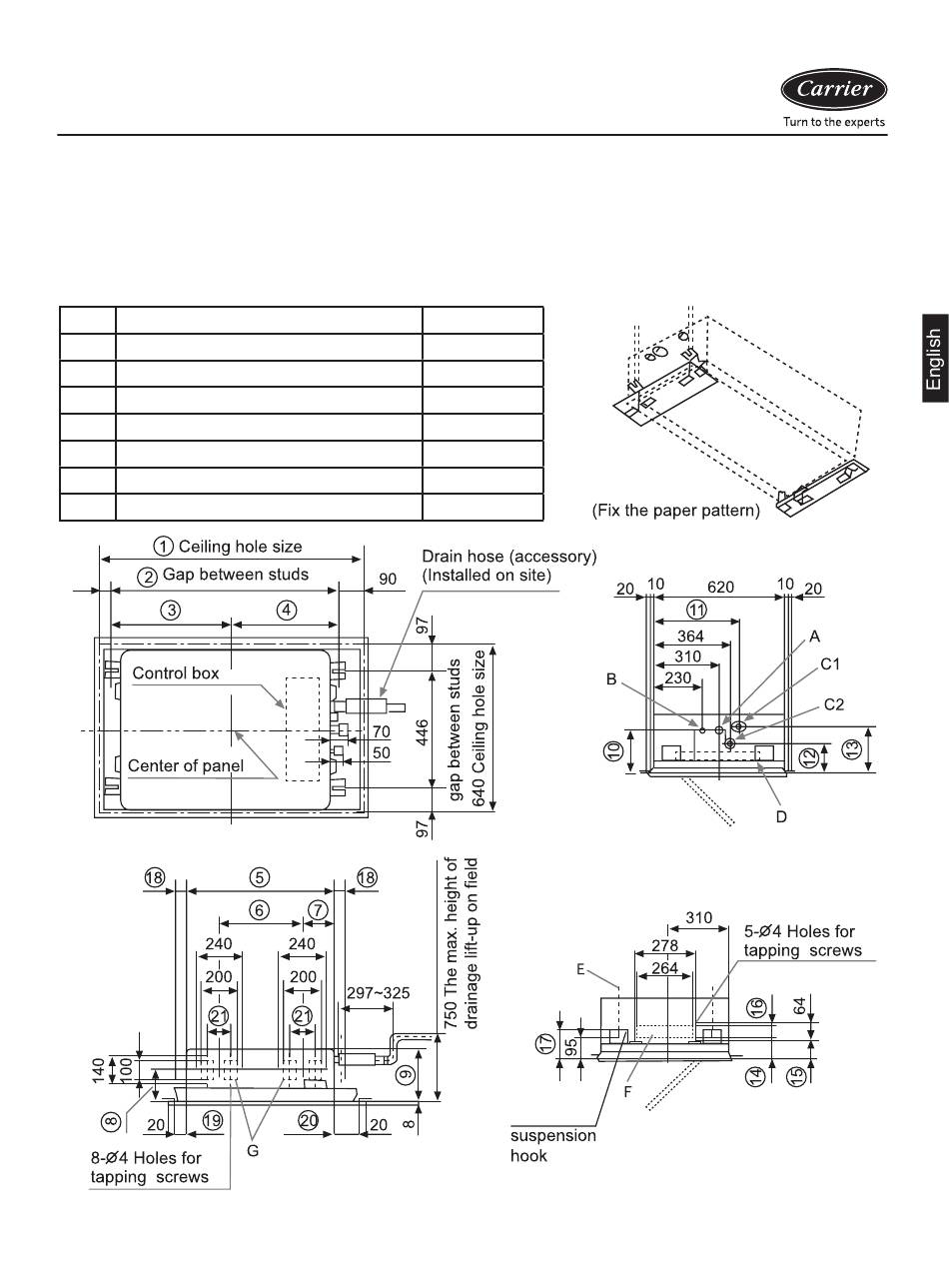

Installation Procedures
Install ceiling later
1. Install the Unit block and template paper according to step 2-4.
2. Cut along external boundary line in the ceiling.
3. Fasten the unit after inspecting installation height and level.
A gas pipe connector
B liquid pipe connector
C1 drainage pipe connector
C2 natural drainage outlet
D power inlet
E suspension bolts
F fresh air inlet
G air supply branch pipe connector
VP25
VP20
M10 or M3/8
8
