GROUNDING INSTRUCTIONS

• For your protection, Waring
equipped with a 3-conductor cord set.

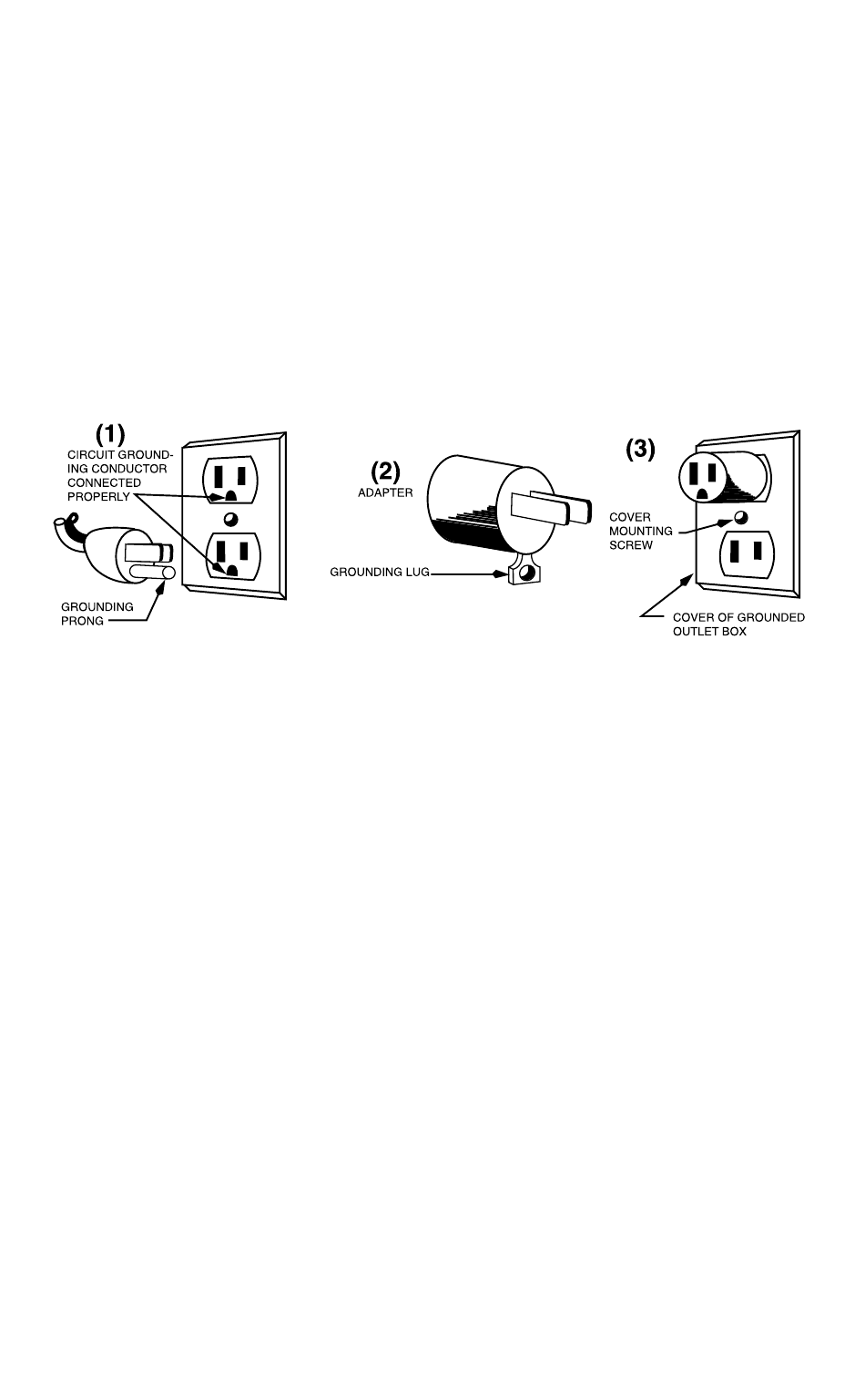

• 120 volt units are supplied with a molded 3-prong grounding-
type plug and should be used in combination with a properly
connected grounding-type outlet, as shown in Figure 1.
If a grounding-type outlet is not available, an adapter, shown in
Figure 2, may be obtained to enable a 2-slot wall outlet to be
used with a 3-prong plug.
Referring to Figure 3, the adapter must be grounded by attaching
its grounding lug under the screw of the outlet cover plate.
CAUTION: Before using an adapter, it must be determined that
the outlet cover plate screw is properly grounded. If in doubt,
consult a licensed electrician.
Never use an adapter unless you are sure it is properly grounded.
NOTE: Use of an adapter is not permitted in Canada.
BLENDER SPECIFICATIONS
• Capacity: 48 oz. Working Capacity
• Rating: 220-240 Volts, 60 Hz, 13.0 Amps
• Base Material: Polycarbonate
• Bearing: High-Precision Ball Bearing
• Cord: 6-Foot, Three-Conductor Ground Cord with Strain Relief
in Base
• Overall Height: 17 Inches
• cETLus, NSF Listed
• Operating Cycle: 1 min. ON/3 min. OFF
Controls:
TBB145 / TBB160 – LO 20,500, HI 24,000, PULSE 24,000
TBB175 – Variable speed dial from 1,000 to 17,000 RPM with
Pulse, 24,000 RPM
Commercial Blenders are
®
4
