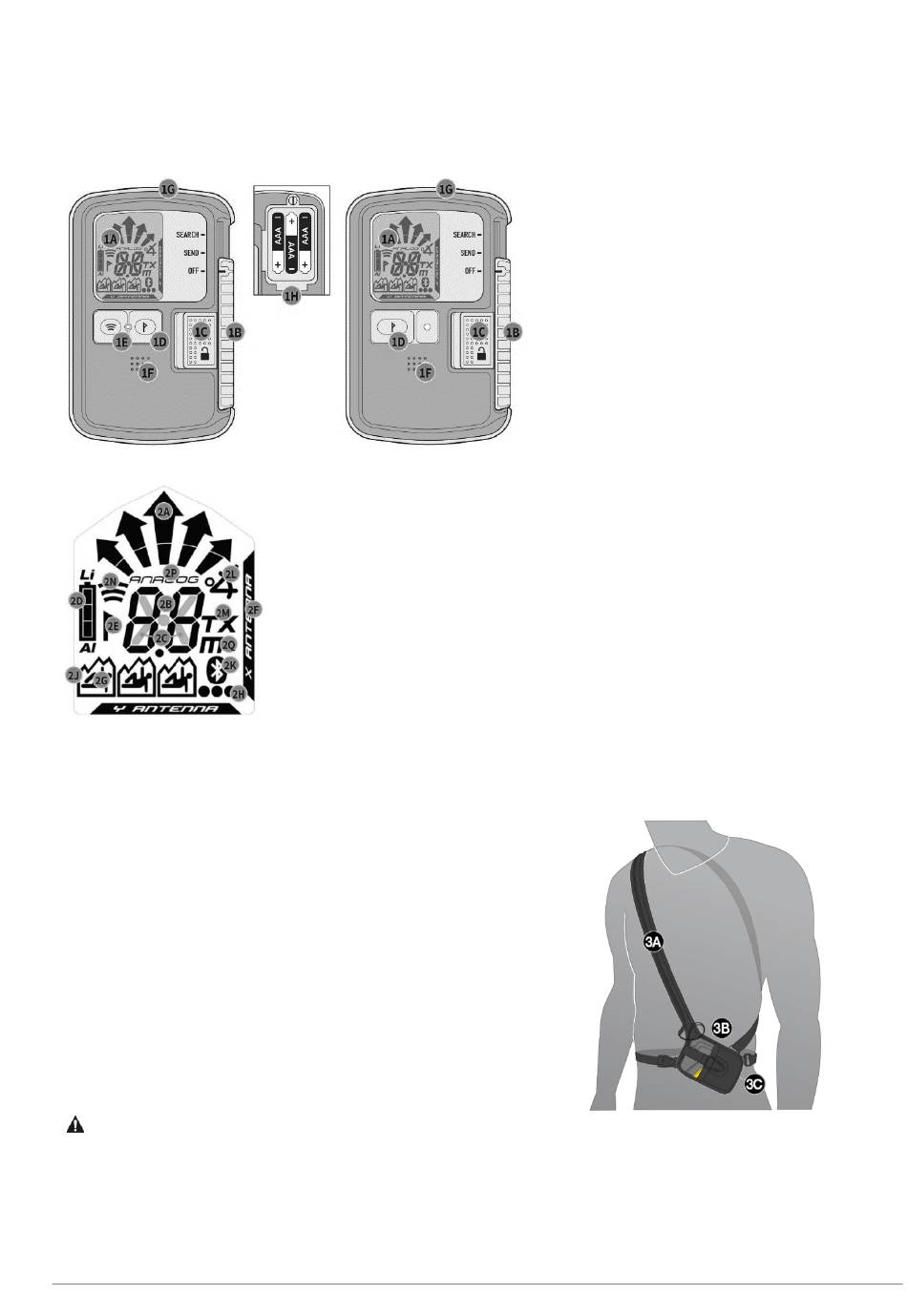

4. GENERAL DESCRIPTION

4.1 STRUCTURE

GUIDE BT

4.2 CARRYING SYSTEM

BLACK DIAMOND recommends using the included carrying system
(3A). In order to protect the beacon's display, carry the beacon with
its display facing inwards (3B). The transmit control LED (1G) is
visible in the pouch´s window (3C).
The included hand loop (Guide BT only) is intended to be used for
training sessions.
DANGER Risk of device loss
Always carry the device in the included carrying system! Always leave the device cord-secured!
Manual BLACK DIAMOND GUIDE BT/RECON BT
RECON BT
(2A) Direction indication
(2B) Distance indication
(2C) Transmit symbol
(2D) Battery capacity/type
(2E) MARK (marking possible)
(2F) Active transmitting antenna
(2G) Number of burials (1-3)
(2H) Number of burials (4 or
more)
(1A) LCD display (backlight)
(1B) Slider OFF/SEND/SEARCH
(1C) Slider lock
(1D) Button MARK
(1E) Button SCAN*
(1F) Speaker
(1G) Transmit control LED
(1H) Battery compartment
(2J) Transmitter marked
(2K) Bluetooth active
(2L) Inclinometer mode*
(2M) TX600 mode*
(2N) SCAN mode*
(2P) Analog mode*
(2Q) Meter symbol for SCAN /analog
mode*
* GUIDE BT only
