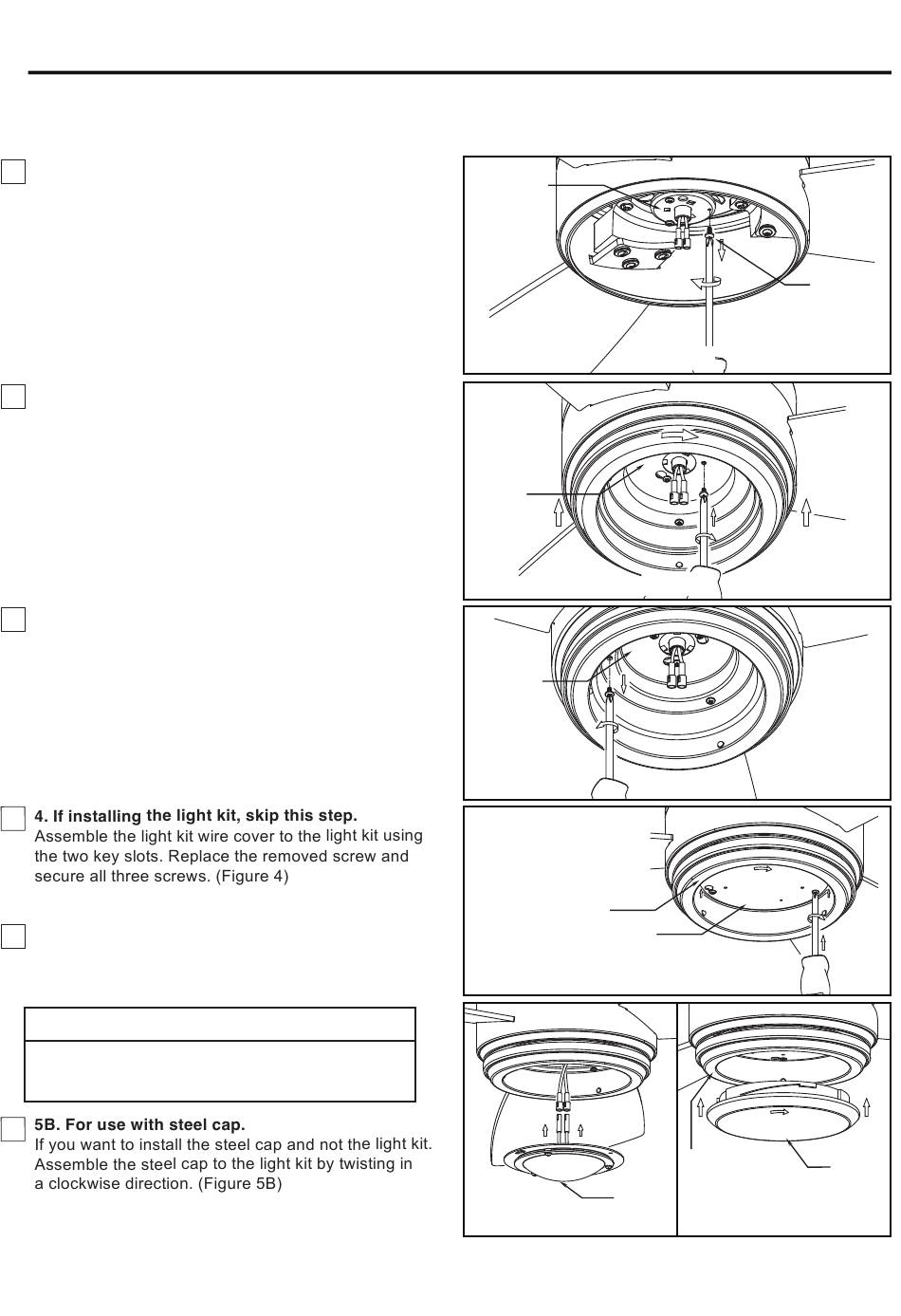

How to Assemble the Light Kit Assembly or Cap
1. Remove one of the three screws in the support bracket
at the bottom of the motor assembly. Retain the screw
for later and slightly loosen the remaining two screws.
(Figure 1)
2. Assemble the light kit to the support bracket using
the two key slots in the light kit. Replace the previously
removed screw and securely tighten all three screws.
(Figure 2)
3. Remove one of the three screws in the light kit.
Retain the screw for later and slightly loosen the
remaining two screws. (Figure 3)
5A. For use with light kit.
Connect the 2 single pin connectors from the LED
assembly to the 2 single pin connectors from motor
assembly. (Figure 5A)
CAUTION
To reduce the risk of electric shock, disconnect the
electrical supply circult to the fan before installing
light kit.
NOTE: If you have installed your fan with the steel
cap, skip Steps 6 and 7.
Motor
Assembly
Light Kit
Light Kit
Light Kit
Light Kit Wire Cover
LED
Assembly
Figure 5A
9
Screws (3)
Figure 1
Figure 2
Figure 3
Figure 4
Light Kit
Figure 5B
Steel Cap
