GENERATOR AUTO START

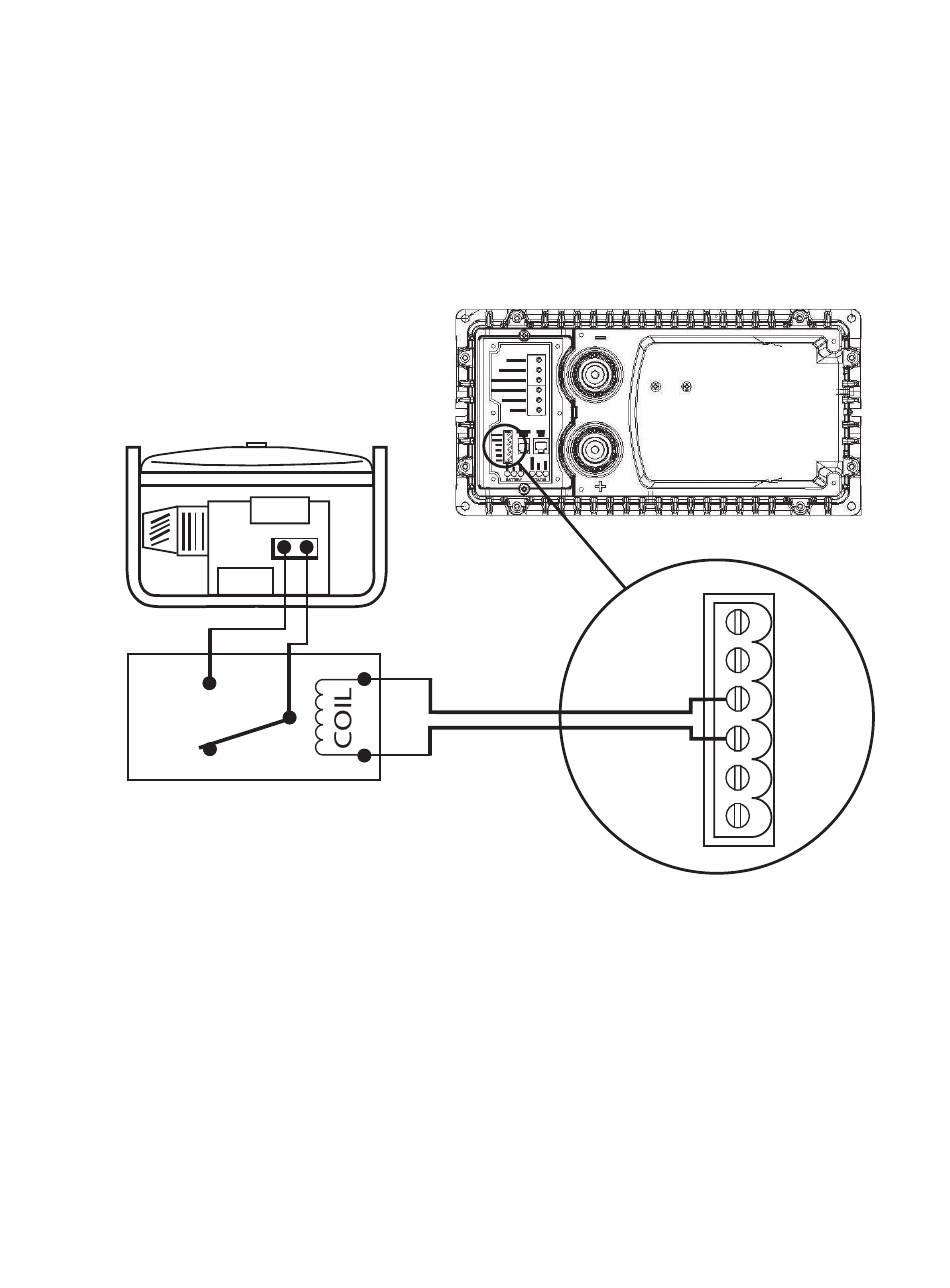

The following schematic shows how to hook up a relay that interfaces with the two-wire start
generator. Three-wire start generators require an adapter like the Atkinson GSCM available at
www.atkinsonelectronics.com.
TWO WIRE START
GENERATOR
HOOK UP
GENERATOR
NO
COM
NC
Most 12V relays will work for generator starting.
Select one between 2 and 30 amp contacts.
12V RELAY
INVERTER
ON/OFF
AUX +
AUX -
XCT -
XCT +
