V2 LEX-RM Manual Del Usuario página 5

120V MODELS
I
COLLEGAMENTI
1. GIALLO - ingresso sensori
2. BIANCO - Neutro
3.
NERO - Fase
4.
ROSSO - Pulsante
5. VERDE - Terra
P
LIGAÇÕES
1.
AMARELO - entrada sensores
2. BRANCO - neutro
3. PRETO - fase
4. VERMELHO - botão
5. VERDE - terra
Yellow
White
Black
Red
Yellow / Green
Yellow
White
Black
Red
Yellow / Green

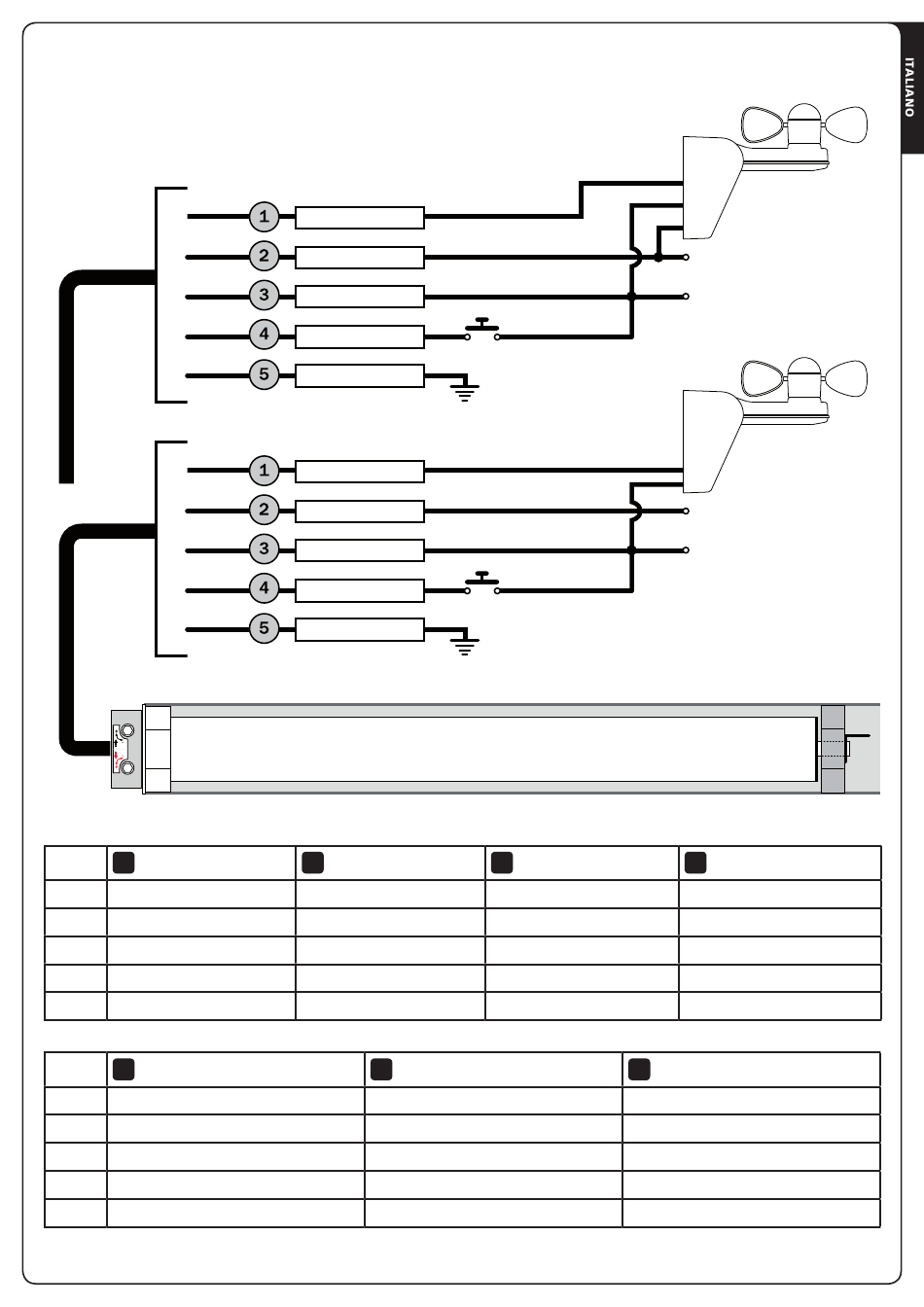

GB
CONNECTIONS
YELLOW - input of sensors
WHITE - Neutral
BLACK - Phase
RED - External switch
GREEN - Ground
D
ANSCHLÜSSE
GELB - Sensoreneingang
WEISS - Nullleiter
SCHWARZ - Phase
ROT - Taste
GRÜN - Masse
- 5 -
METEO / HURRICANE
WIND / MISTRAL
F
BRANCHEMENTS
JAUNE - entrée capteurs
BLANC - neutre
NOIR - phase
ROUGE - touche
VERT - terre
NL
AANSLUITINGEN
GEEL - Aansluiten van sensoren
WIT - Neutraal
ZWART - Fase
ROOD - Drukknop
GROEN - Aarding
L
N
N
L
N
L
E
CONEXIONES
AMARILLO - entrada sensores
BLANCO - Neutro
NEGRO - Fase
ROJO - Pulsador
VERDE - Tierra
