5. Once the scoreboard is fastened to the wall by the top nuts, make two additional
holes in the wall through the eyelets at the bottom of the brackets; after drilling
remove all dust from holes.
6. Slightly loosen the top end nuts and distance the bottom part of the board from the
wall in order to insert the dowels in the holes; then insert the screws (tightening
them with the 13 mm wrench) and washers. Move the board close to the wall
again, making sure the screws pass through the eyelets at the bottom of the
brackets.
7. Insert the washers and tighten both the top and bottom end nuts.
Make sure that you have securely fastened the scoreboard to the wall in order to prevent possible collapse and
harm to persons or objects.
7. F
INAL CONNECTION AND SCOREBOARD TEST
Once the scoreboard has been installed on
the wall, you can proceed with connecting the
electrical power supply and serial data cable.
7.1. Connecting the scoreboards
Fig. 7.1 shows a configuration of the main
scoreboard, the side scoreboards displaying
player fouls/scores, and the lower scoreboard
displaying penalty times.
1. Make sure you have disconnected the
power supply by turning off the scoreboard
switch.
2. Insert the power cord plug for the
scoreboards into the wall socket.
3. Using the adapter provided, connect the
serial data cable of the Console to the
cable you previously inserted in the
"SERIAL DATA INPUT" port of the power
supply unit and positioned above the
scoreboard (see chapter 3.3).
4. The other FS series scoreboard panels,
such as the side scoreboards for player
fouls/scores and the lower scoreboards for
penalty times, can be connected to the
other two serial data cables of the
"SERIAL DATA OUTPUT" port by using
the adapters provided (see Fig. 7.1).
7.2. Testing the scoreboard
Once the scoreboards have been installed on the wall you can make an overall test to see if all information is
displayed correctly .
1. The first test should be made when you first switch on the scoreboards. All display panels should remain
00236-M01-03-ML - Series FS-1xx scoreboard installation

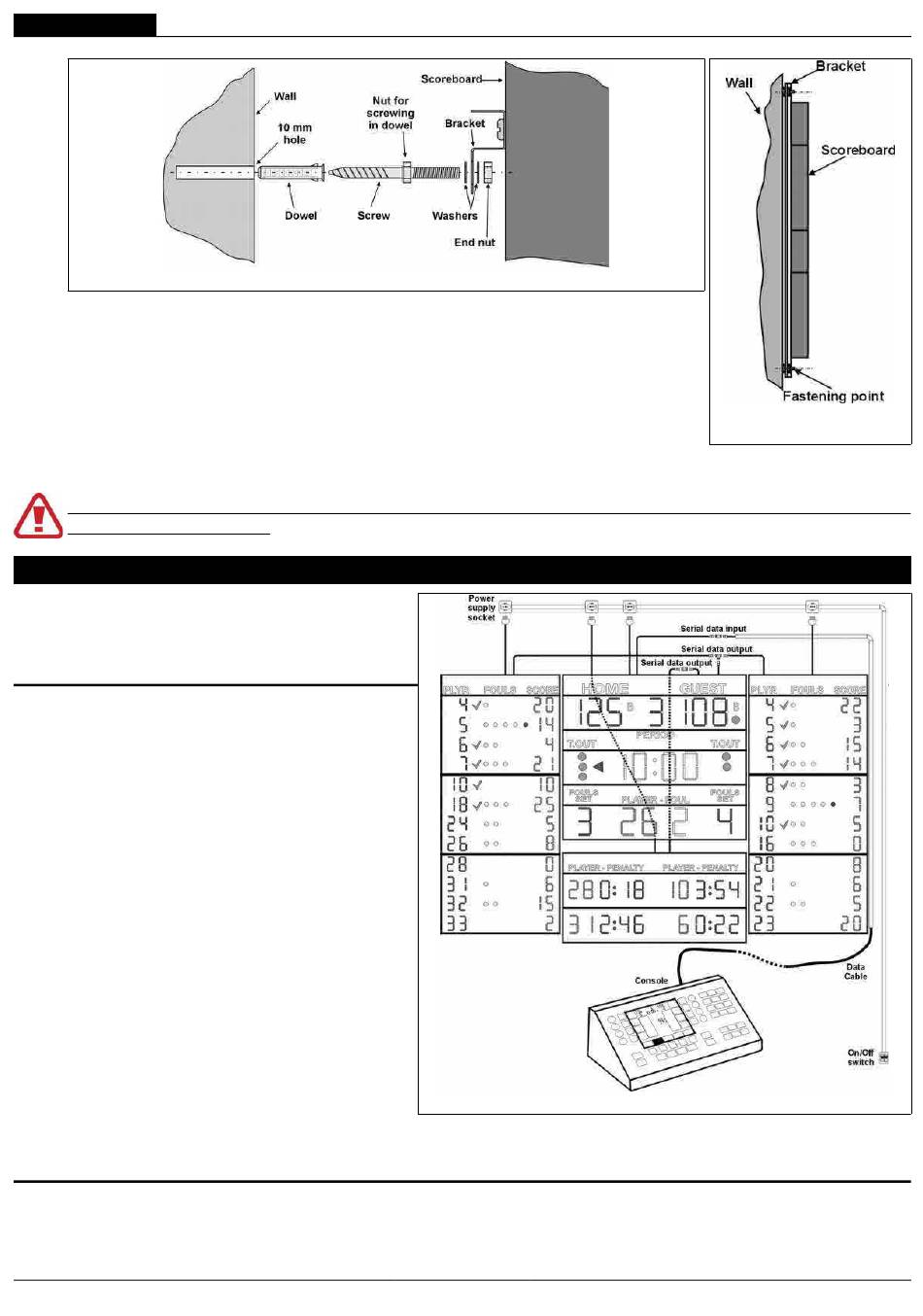

Fig. 6.1: Installation detail (view from above)
Fig. 7.1: Connecting the scoreboards
8 / 56
Fig. 6.2:
Installed board
(side view)
