Cinema Mid-High-Very High Loudspeaker System User Manual
MHV-1090
10" (254mm) mid, coax high- very high compression driver
Introduction
The MHV-1090 system provides the mid, high, and very high frequency components of
four-way screen channel loudspeaker system for high performance cinema applica-
tions. It was designed to operate with and be directly mounted on QSC's cinema low
frequency enclosures.

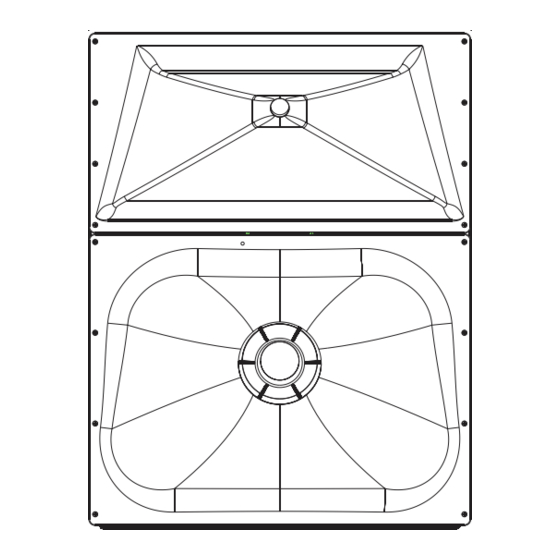

The high frequency horn is a low-distortion waveguide providing highly articulate dia-
logue without the coloration associated with conventional horn loudspeakers. Both
horns feature broad horizontal and vertical coverage to ensure audio integrity is deliv-
ered to every seat in the auditorium. The driver assemblies are mounted on an adjust-
able pan and tilt bracket that has an integral aiming sight, simplifying installation.
The MHV-1090 includes a driver protection and high-very high frequency crossover
network to assure reliable operation. DC blocking capacitors protect against DC or
low-frequency signals that could damage an unprotected driver. A 12 dB per octave
crossover seamlessly blends the high and very high frequency elements when oper-
ated in tri-amp mode. Outboard processing is required to form the crossover between
the low, mid, and high-very high frequency drivers.
Tri-amp or quad-amp operation is possible using a selector switch mounted on the
INPUTS connection panel. The tri-amp setting provides a built-in passive crossover
network between high and very high frequency drivers. Separate amplifiers and active
crossovers are required for the low, mid, high-very high frequency channels. Quad-
amp setting disables the internal high-very high frequency crossover and each driver
is driven independently by its own amplifier and active crossover; one each required
for the low, mid, high, and very high frequency drivers.
The MHV-1090 components come pre-assembled to reduce field assembly time. Three
bolts are all that are required to secure the assembly to the top of a QSC low fre-
quency enclosure.
Install in accordance with QSC Audio Product's instructions and a
licensed, professional engineer. Only use attachments, mounts,
accessories, or brackets specified by QSC Audio Products, Inc. Refer
all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way.
WARNING! Before placing, installing, rigging, or suspending any
speaker product, inspect all hardware, suspension, enclosures,
transducers, brackets and associated equipment for damage. Any
missing, corroded, deformed or non-load rated component could sig-
nificantly reduce the strength of the installation, placement, or array.
Any such condition severely reduces the safety of the installation and
should be immediately corrected. Use only hardware which is rated
for the loading conditions of the installation and any possible short-
term unexpected overloading. Never exceed the rating of the hard-
ware or equipment. Consult a licensed, professional engineer when
any doubt or questions arise regarding a physical equipment installa-
tion.
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office
39"
(991mm)
*TD-000246-00*
TD-000246-00-A
© Copyright 2007, QSC Audio Products, Inc.
30"
(762mm)
20"
(508mm)

Publicidad

Tabla de contenido
loading

Resumen de contenidos para QSC MHV-1090

  • Página 1 The MHV-1090 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the assembly to the top of a QSC low fre- quency enclosure.
  • Página 2 Attaching to Low Frequency Enclosure The MHV-1090 attaches to the top of QSC low frequency enclosures with three 0.75” long 5/16”-18 TPI bolts. ensure the use of lock washers on all bolts. The bolts and washers ship installed on the low frequency enclosure. We recommend the use of serviceable thread locking compound when installing the bolts to prevent loosening due to vibration.
  • Página 3 NOTE! Maintain proper loudspeaker connection polarity throughout the entire system for maximum performance. Do not apply full range signal to the MHV-1090! There is a high/very high frequency passive crossover for tri-amp mode only. There is no crossover connected when operating in quad-amp mode. All required signal processing must be done before the signal is applied to the loudspeaker.
  • Página 4 HF termi- nals on the INPUTS terminal strip; connect the very high frequency signal to the VHF terminals on the INPUTS terminal strip. Signal Processing MHV-1090 MF LF Amplification...
  • Página 5 High frequency: 1.5" exit, 3.5" voice coil polyester diaphragm coaxial compression driver Very High frequency: 1.5" exit, 1.75" voice coil polyester diaphragm coaxial compression driver Mounting Hardware: Attaches to top of QSC’s low frequency cinema enclosures using three 5/16”-18 x 3/4” long bolts (supplied on low fre- quency enclosure) Size 39”...
  • Página 6 MHV-1090 SPL vs. Frequency, Tri-amp, No Screen high/very high Frequency (Hz) MHV-1090 SPL vs. Frequency, Quad-amp, No Screen high very high Frequency (Hz)
  • Página 7 MHV-1090 SPL vs. Frequency, X-curve, Tri-amp, With and Without Screen without screen X-curve +3 dB X-curve -3 dB with screen Frequency (Hz) MHV-1090 SPL vs. Frequency, X-curve, Quad-amp, With and Without Screen without screen X-curve +3 dB X-curve -3 dB...
  • Página 8: Contacting Qsc Audio Products

    Warranty (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
  • Página 9 Three T-nuts in the top of the enclosure provide easy mounting of QSC’s HF-75 high fre- quency system, or MH-1063 mid-high system.
  • Página 10 Connections Normal Connection Example: Normal Connection The LF-4115 has barrier strip screw termi- Amplifier capable of nals for connection. The terminals accept driving 4 ohm loads up to #10 AWG (5.3mm ) stranded loud- speaker wiring. Use the largest wire size and shortest wire length possible for a given installation.
  • Página 11 93.5dB half space, 92.0dB full space, 35 - 1000 Hertz, 1 watt, 1 meter Recommended Processing: Subsonic filter below 30 Hertz, >18 dB per octave, maximum recommended crossover frequency is 1000 Hertz. QSC DSP configurations are available at www.qscaudio.com. Parameters for alternative processing hardware are available upon request.
  • Página 12 Warranty (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
  • Página 13: Introducción

    © Derechos de autor 2004, QSC Audio Products, Inc. QSC® es una marca comercial registrada de QSC Audio Products, Inc. “QSC” y el logotipo de QSC están registrados con la Oficina de Patentes y Marcas Comerciales de los Estados Unidos...
  • Página 14: Conexiones

    Conexiones Ejemplo de una conexión normal: Conexión normal El altavoz LF-4115 tiene terminales de tor- nillo de barra protectora para su conexión. Los terminales aceptan cableado trenzado de hasta #10 AWG (5.3 mm ) para altav- oces. Use el alambre del calibre más Amplificador con capacidad grande y de la longitud más corta posible de accionamiento de cargas...
  • Página 15 Filtro subsónico menor de 30 Hertzios, >18 dB por octava, la frecuencia máxima de cruce recomendada es de Procesamiento 1000 Hertzios. Las configuraciones DSP de QSC están disponibles en www.qscaudio.com. Los parámetros recomendado: para el herraje de procesamiento alternativo están disponibles si así se solicitan.
  • Página 16 Garantía (sólo para EE.UU.; para otros países, consulte con su vendedor o distribuidor) Renuncia de responsabilidad QSC Audio Products, Inc. no es responsable por ningún daño a los amplificadores, ni a ningún otro equipo que sea causado por negligencia o instalación y/o uso inadecuado de este altavoz.
  • Página 17 TD-000171-00 rév. C © Copyright 2004, QSC Audio Products, Inc. QSC® est une marque déposée de QSC Audio Products, Inc. QSC et le logo QSC sont des marques déposées auprès de l'U.S. Patent and Trademark Office.
  • Página 18 Branchements Branchement normal Exemple de branchement normal : Le branchement du LF-4115 se fait à partir de bornes vissables de bornier à cloisons. Les bornes acceptent des câbles de haut-parleurs toronnés pouvant atteindre #10 AWG (5,3 ). Utiliser le calibre de conducteur maximal et la longueur de conducteur Amplificateur capable de piloter minimale, dans la mesure du possible, pour...
  • Página 19 Filtre subsonique inférieur à 30 Hz, >18 dB par octave ; fréquence de filtre passif maximale recommandée : 1 000 Hz. Les configurations des processeurs de champs sonores numériques QSC sont disponibles sur le site www.qscaudio.com. Les paramètres concernant d'autres matériels de traitement sont disponibles sur demande.
  • Página 20: Pour Contacter Qsc Audio Products

    QSC Audio Products - Garantie limitée de 3 ans QSC Audio Products, Inc. (« QSC ») garantit que ses produits sont dépourvus de tout vice de fabrication et/ou de matériel pendant une période de trois (3) ans à partir de la date de vente et remplacera les pièces défectueuses et réparera les produits qui fonctionnent mal dans le cadre de cette garantie si le défaut survient dans des conditions normales d'installation et d'utilisation - à...
  • Página 21 Schwingspule aus ihrer Mittelstellung im Luftspalt bei hoher Leistung reduziert. Die Montage der Hochfrequenz-Anlage HF-75 bzw. des oberen Mittenfrequenz-Systems MH-1063 von QSC wird durch drei T-Muttern oben im Gehäuse erleichtert. Das Gehäuse ist nicht für Hänge-, Flug- oder Abspannanwendungen vorgesehen.
  • Página 22 Verbindungen Normaler Anschluss Beispiel eines normalen Anschlusses: Das Modell LF-4115 wird über Barrier-Strip- Schraubklemmen angeschlossen. Die Klemmen Verstärker kann 4- können Lautsprecher-Litzendraht bis zu einer Ohm-Lasten treiben Stärke von 10 AWG (5,3 mm ) aufnehmen. Bei der Installation stets den größtmöglichen Leiterquerschnitt und die kürzeste Leiterlänge verwenden.
  • Página 23 93,5 dB Halbraum, 92,0 dB Vollraum, 35 - 1000 Hz, 1 W, 1 m Empfohlene Verarbeitung: Untertonfrequenzfilter unter 30 Hz, >18 dB je Oktave, empfohlene maximale Crossover-Frequenz: 1000 Hz QSC DSP- Konfigurationen können im Internet unter www.qscaudio.com eingesehen werden. Parameter für alternative Verarbeitungshardware sind auf Anfrage erhältlich.
  • Página 24: Kontaktaufnahme Mit Qsc Audio Products

    Beschränkte Dreijahresgarantie durch QSC Audio Products QSC Audio Products, Inc. („QSC“) gewährleistet, dass seine Produkte für einen Zeitraum von drei (3) Jahren ab dem Kaufdatum keine Material- und/oder Ausführungsfehler aufweisen werden, und QSC verpflichtet sich zum Ersatz defekter Teile und zur Reparatur funktionsgestörter Produkte gemäß...
  • Página 25 可以增加变频器的寿命,并且减少高功率下的功率压缩问题。低切极片确保 音圈在对称磁隙 (SMG)中运行,从而减少了二次谐波失真。变频器的支架 和音圈可在高功率下提供低失真和高重低音。 机罩由优质中等密度纤维板制成,六个面板都有加强支架支持。内部和外部 端口开口都经过全辐射处理,确保气流在较高功率下可以平稳通过端口,防 止了声音端口气流紊乱。 低音端口均匀地分布在变频器两侧,使通过变频器背表面的内部压力更加一 高频或中高频系统安装点 致。这样就防止了圆锥由于力量失衡而被错误地放置在一边或另一边,从而 减少了高功率下将音圈赶出空隙中心的情况。 机罩上部的 3 个 T 形螺母使得安装 QSC 的 HF-75 高频系统或 MH-1063 中高 频系统更加容易。 机罩并没有设计成悬挂式、可操纵式、或装配式。请勿对此机罩进行 悬挂、操纵或装配。 此产品可产生对人类听觉造成永久损伤的声压强度。请将听音区域内 的声压强度总是保持在不会对人的听力造成损伤的水平。 按照 QSC Audio Product 的说明并在授权的专业工程师的指导下安 装。仅限使用 QSC Audio Product 公司规定的附件、底座、零件或支 架。所有维护请由合格的专业人士进行。设备如果受到损坏,就需要 进行维修。 警告!放置、安装、装配、或悬挂扬声器产品时,检查所有硬件、悬...
  • Página 26 连接 正常连接样例 : 正常连接 LF-4115 具有用于连接的阻挡带螺 放大器可以带动 4 旋式终端。此终端接受高达 欧姆负载 #10 AWG (5.3mm ) 的绞合式扬声器 电线。对于特定的安装,尽可能使 用最大电线尺寸和最短电线长度。 观察极性标志,确保整个系统极性 一致,以便获得最佳表现。 并联样例 : 第二个 LF-4115 并联 标有 OUTPUT 的终端可用于并联另 放大器可以带动 2 一个 LF-4115。按照右图所示连接 欧姆负载 线路。...
  • Página 27 推荐放大器功率 - 1100 瓦 rms 最大到 4 欧姆 ( 每 LF-4115) 灵敏度: 93.5dB 半间距,92.0dB 全间距,35 - 1000 赫兹,1 瓦,1 米 推荐处理: 次音速过滤低于 30 赫兹, 每八度音程大于 18 dB 最大推荐分频频率为 1000 赫兹。从 www.qscaudio.com 网站可获得 QSC DSP 的配置情况。如有要求即可获得替换处理硬件的参数。 连接器: 阻挡带螺旋式终端接受高达 #10 AWG (5.3mm2) 绞合式布线。四个终端 ( 两个 INPUT 和两个并行 OUTPUT)。 变频器:...
  • Página 28: 联系 Qsc Audio Products

    客服 (714) 957-7150 或免费电话 ( 仅限美国 ) (800) 772-2834 传真: 销售与市场部门传真 (714) 754-6174 客服传真 (714) 754-6173 网址 www.qscaudio.com E-mail:info@qscaudio.com service@qscaudio.com QSC Audio Products,Inc.1675 MacArthur Boulevard Costa Mesa, California 92626 USA ©2004 “QSC”以及 QSC 的标志在美国专利和商标管理局注册。 Kapton® 为 E.I.du Pont de Nemours and Company 的注册商标。...
