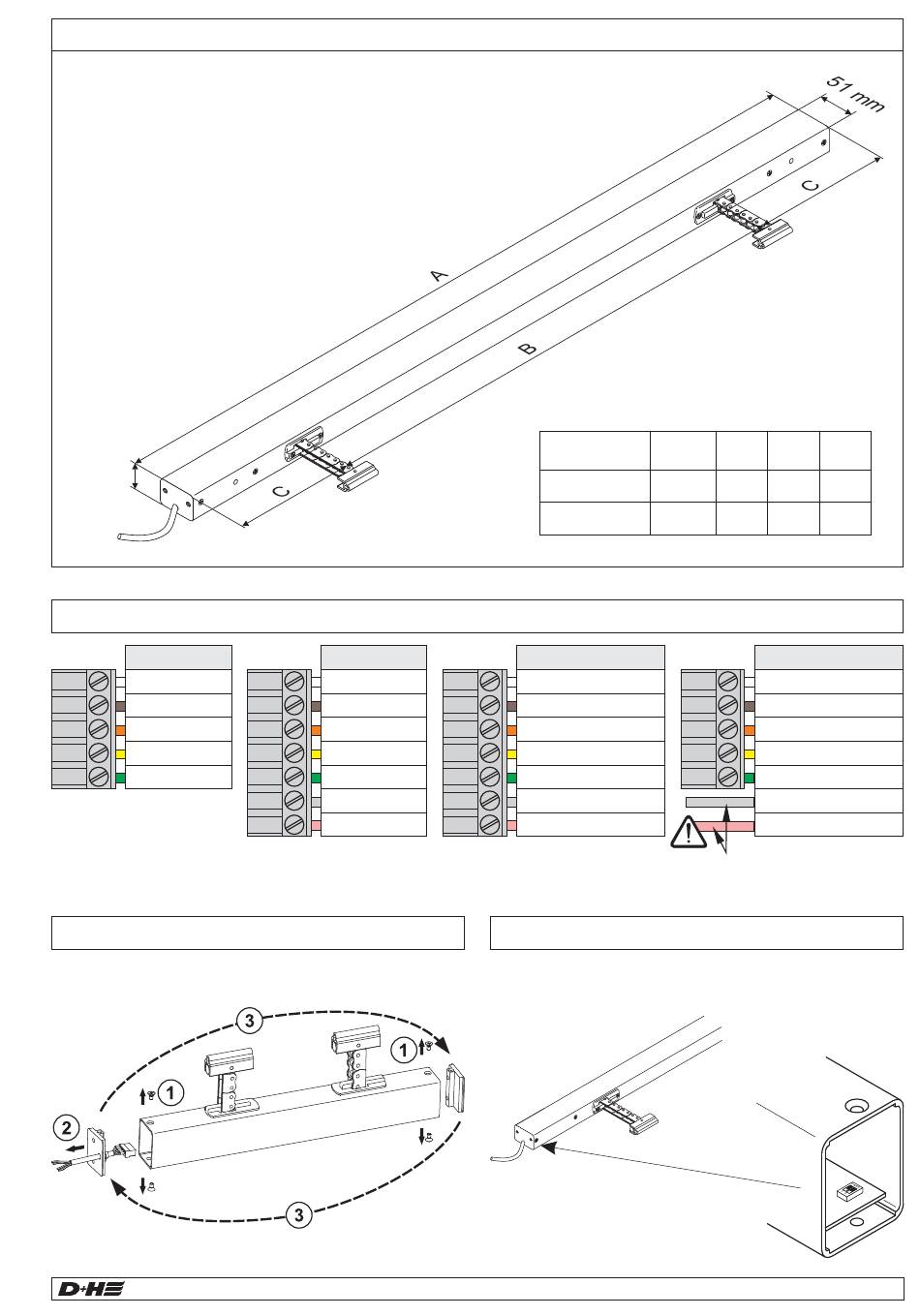

Pin Assignment - D+H KA 66-TW Manual Original

Dimensions
40 mm

Pin Assignment

Standard
WH (Mot. a)
BN (Mot. b)
OG (-HS)
YE (Data A)
GN (Data B)
Connection: page 18
Shift of drive cable
Only with standard version
99.823.90 2.2/03/12
Option -BRV
WH (Mot. a)
BN (Mot. b)
OG (-HS)
YE (Data A)
GN (Data B)
GY (-BRV)
PK (n.c.)
DIP-Switch
Only for ex-works programming
Must be switched on OFF
English
Type
Stroke
< _
KA 66-TW065 500
< _
KA 66-TW1 800
Option -SGI/-SKS
WH (Mot. a)
BN (Mot. b)
OG (-HS)
YE (Data A)
GN (Data B)
GY (- SGI / SKS)
PK (+ SGI / SKS)
The connecting cable is directly connected
to the drive and not changeable
B C
A
997 650 173,5
1347 1000 173,5
Option -SA/-SZ
WH (Mot. a)
BN (Mot. b)
OG (-HS)
YE (Data A)
GN (Data B)
GY (-SA / -SZ)
PK (-SA / -SZ)
7/20
KA 66-TW
