Environmental protection

The packaging material can be recy-
cled. Please do not place the packag-
ing into the ordinary refuse for dispos-
al, but arrange for the proper recy-
cling.
Old appliances contain valuable ma-
terials that can be recycled; these
should be sent for recycling. Batter-
ies, oil, and similar substances must
not enter the environment. Please
dispose of your old appliances using
appropriate collection systems.
Electrical and electronic devices often con-
tain components which could potentially
pose a danger to human health and the en-
vironment if handled or disposed of incor-
rectly. However, these components are
necessary for the proper operation of the
device. Devices marked with this symbol
must not be disposed of with regular house-
hold rubbish.
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH

Before Startup

Unpacking
– Check the contents of the pack before
unpacking.
– In case of transport damage inform ven-
dor immediately.
Check oil level
 Read the oil level display when the de-
vice is not running. The oil level must be
above the two pointers.
Activate deaeration of oil container
 Unscrew the fastening screws of the
device hood; remove the device hood.
 Cut off tip of oil container cover
 Fasten the device hood.

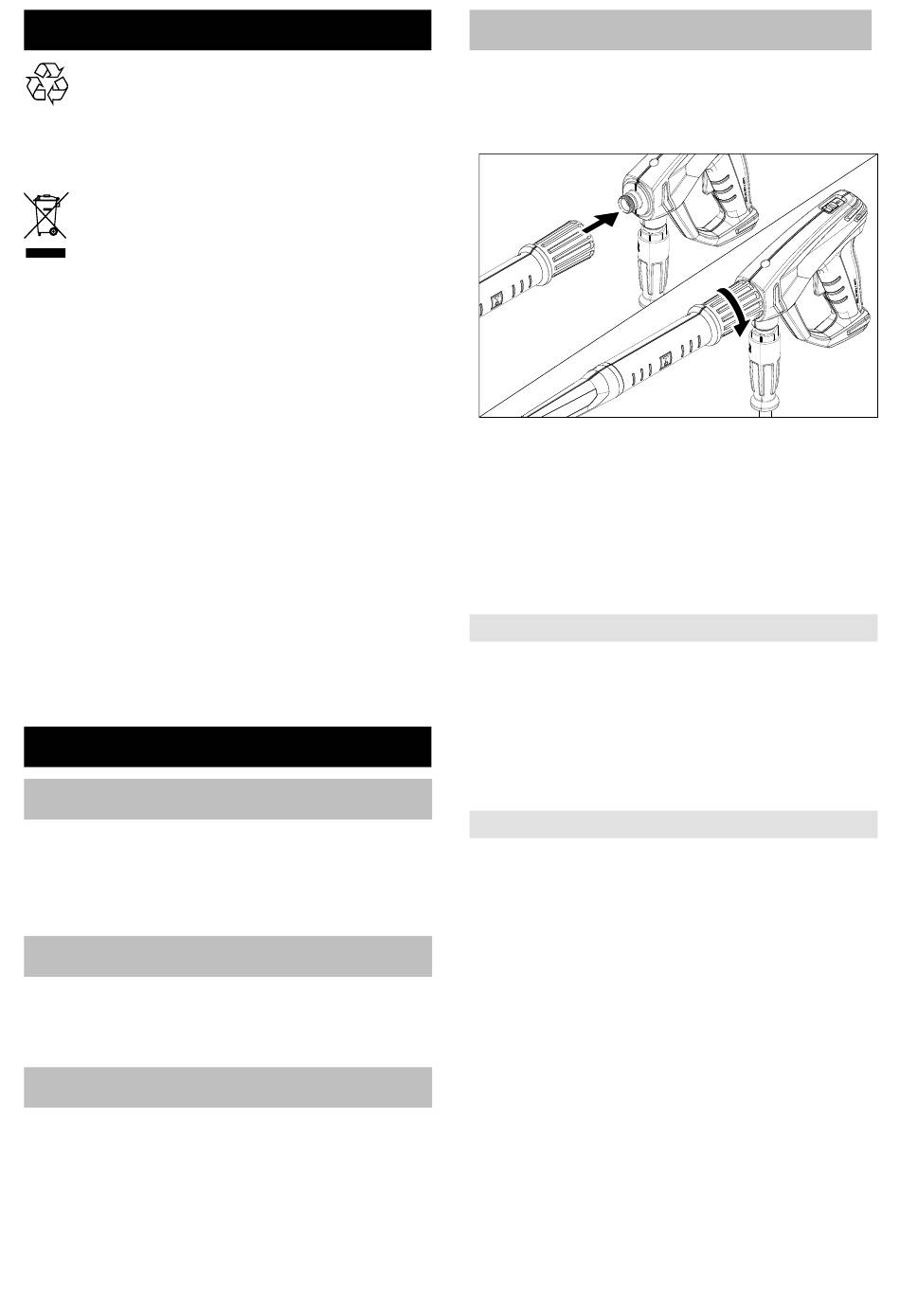

Attaching the Accessories
Note: The EASY!Lock system joins com-
ponents with a quick-fasten thread solidly
and securely with just one turn.
1.
 Insert the high pressure nozzle onto the
spray lance.
 Install union nut and hand-tighten it
(EASY!Lock).
 Join the spray lance with the trigger gun
and tighten until hand-tight
(EASY!Lock).
In devices without hose drum:
 Join the high-pressure hose with trigger
gun and high-pressure connection of
the appliance and tighten until hand-
tight (EASY!Lock).
 Lock a cable clip in the side-hole on the
handle.
In devices with hose drum:
 Insert the crank in the hose drum shaft
and lock it in.
 Before rolling up, stretch out the high
pressure hose.
 Wind the high pressure hose in uniform
layers on the hose drum by rotating the
crank. Select the rotation direction in
such a way that the high pressure hose
does not get bent.
 Join the high pressure hose with trigger
gun and tighten until hand-tight
(EASY!Lock).
EN – 3
2.
17
