Accessory parts and Parts to be procured locally

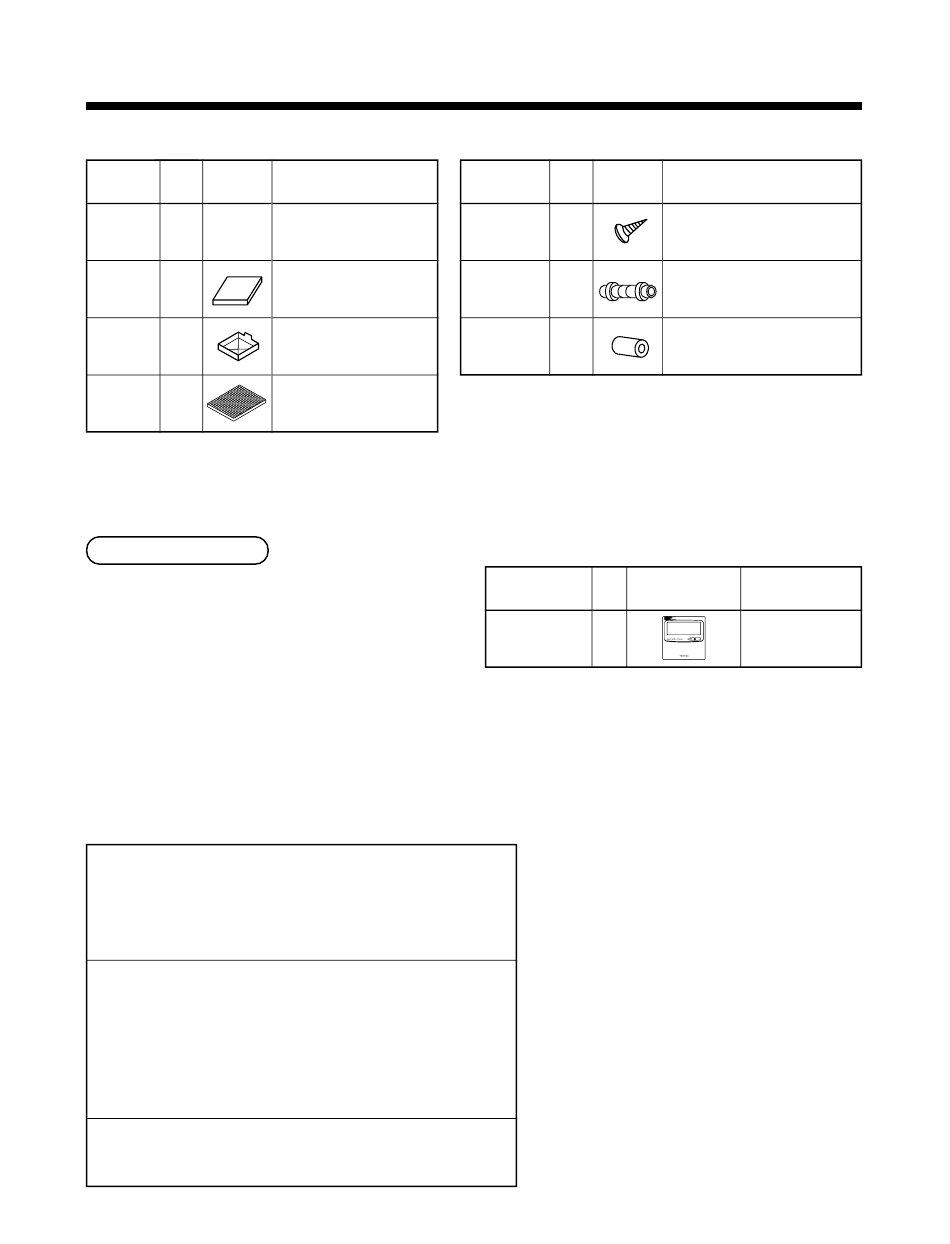

H Accessory parts
Part name Q'ty Shape
Installation This
1
Manual manual
Heat
2
insulation
Drain pan 1
Drain filter 1
Refrigerant piping
• Piping material used for the conventional
refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness
for Ø6.4, Ø9.5, Ø12.7.
Use copper pipe with 1.0 mm or more thickness
for Ø15.9.
• Flare nut and flare works are also different from
those of the conventional refrigerant. Take out
the flare nut attached to the indoor unit of the air
conditioner, and use it.
H Parts to be procured locally
Connecting pipe (Liquid side)
(6.4mm (diam.), Nominal (diam.) 1/4" thick 0.8mm)
MML-AP0071BH to MML-AP0181BH
(9.5mm (diam.), Nominal (diam.) 3/8" thick 0.8mm)
MML-AP0241BH
Connecting pipe (Gas side)
(9.5mm (diam.), Nominal (diam.) 3/8" thick 0.8mm)
MML-AP0071BH to MML-AP0121BH
(12.7mm (diam.), Nominal (diam.) 1/2" thick 0.8mm)
MML-AP0151BH, MML-AP0181BH
(15.9mm (diam.), Nominal (diam.) 5/8" thick 1.0mm)
MML-AP0241BH
Power supply cord
2
Cable 3-core 2.5mm , in conformity with Design 60245 IEC57
All manuals and user guides at all-guides.com
Use
(Be sure to hand over to
customers)
For heat insulation of drain
connecting section
For water draining
With the drain receiver
Part name Q'ty Shape
Drain receiver
1
fixing screw
Drain hose 1
Heat insulated
1
pipe
<Separate sold parts>
Part name Q'ty
Standard wired
1
remote controller
1
Use
For drain receiver fixing
For adjusting core-out of drain pipe
(with drain receiver.)
For insulating the drain receiver
(with the drain receiver.)
Shape Usage
Model
RBC-AMT21E
