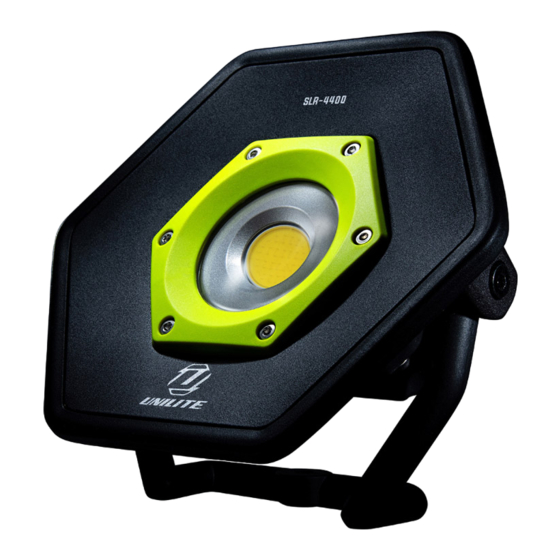

UNILITE SLR-4400 Guia De Inicio Rapido

FEATURES
• Super bright 4400 lumen 50W White 6500K COB LED
• Dual Power - rechargeable battery and mains powered
• Super tough aluminium & TPR construction
• Built-in aluminium heat sink
• 180° Vertical adjustable stand/handle
• Hole in the stand for attaching a magnet or tripods
• IP65 dust & water resistant
• IK07 shock resistant
• Powerful 11.1v 5200mAh integrated lithium-ion battery
• 3 x Battery level and charging indicator LEDs
• Mains charger included with multi-country adaptors
• Quick 4 hour charge time
• Magnet attachment and tripods available (not included)
BATTERY - 11.1v 5200mAh Li-ion Rechargeable Battery
WEIGHT - 1150g
DIMENSIONS - W 225 x H 220 x D 70mm
OPERATION
Press the yellow circle button on the back of the unit to activate. Keep
pressing to get the desired light output, 3 light modes to choose:-
press to cycle through - LOW 1200 lumen > MID 1900 lumen > HIGH
4400 lumen.
On/Off
Switch
Battery Level
& Charge Indicators
Charge
Port
www.unilite.co.uk
ANSI FL 1 Standard
LOW
MID
HIGH
CHARGING
Mains powered charger/power lead included, with UK/EU/AU/US
plug adaptors included.
Only use the 15V 1.5A charger provided otherwise damage may occur
and warranty will be void.
1. Lift the charging port cover on the back of the lamp.
2. Plug the DC end of the cable into the circular charge port.
3. Plug the AC/DC plug into a mains AC plug socket.
4. The 3 x battery indicator LEDs will illuminate and flash to show
charging status. Once fully charged, all the indicator LEDs will
illuminate continually.
5. If the battery indicators do not illuminate, remove the charger and
try again.
6. Charge Time: 4 hours
The intelligent battery and charging lead means the light can still be
used during charging. Even with a fully charged battery, the lead can
be used as a constant power supply.
Please note: brightness decreases when plugged in for safety over
heating reasons.
Fully charge before first use.
*Warranty void if not used with the charger provided*
ADVICE & IMPORTANT INFORMATION!
LEDs will become hot when switched on; do not touch and never place face down on
any surface – risk of fire! Even once the lamp has been switched off, DO NOT place
face down as the LED/Lens will stay hot/warm for a while.
Do not look directly at the LED. Do not operate in direct sunlight or extreme temperature
conditions (below -10°C or above 40°C).
Do not use the device if there is any visible damage to the housing, charge port,
switches or charger. Take care when using the charger, always check for any damage
first. Only use the charger provided. DO NOT exceed 15V 1.5A charging input or
damage may occur to the battery. Never remove the charger from the mains power
socket with wet hands, and do not attempt to remove by pulling the cord, always grasp
the plug unit.
The rechargeable battery will reach full performance after a few complete charging
and discharging cycles.
To keep the rechargeable battery in optimum condition, it should be recharged every
3-6 months, especially if it is not being used for a long period of time. Always fully
charge batteries before storage.
Always protect lithium batteries from heat, intense sunlight, fire, water and moisture –
danger of explosion!
If a battery is damaged, fluids can leak out. AVOID contact as this can lead to skin
irritation and/or burns. If skin contact occurs, rinse thoroughly with water. If irritation
persists, seek medical advice. Seek immediate medical assistance if lithium battery
fluid comes into contact with the eyes.
Children under 12 years of age should only use the product under adult supervision.
Do not open, disassemble or attempt to modify the product; this will void the warranty
and can be dangerous. Improper use or modification is not covered under the warranty.
Take care not to let the lens come into contact with hard/sharp objects, damage/
scratches to the lenses will affect light output.
This product is water resistant to IPX5 - DO NOT SUBMERGE. If the product has been
subjected to excessive water the warranty may be void.
This product has a 1 year standard warranty (or extended to 2 years once registered
online at WWW.UNILITE.CO.UK/WARRANTY) against manufacturing faults and
defects, commencing on the date of purchase. It does not cover normal wear and tear,
modifications, accidental damage or poor maintenance. Unilite warranties do not cover
battery leaks or the use of incorrect chargers and cables that can damage batteries.
Do not dispose of this device in normal household waste. It must be disposed of via
an authorised electrical appliance disposal centre or at your local waste disposal unit.
Please re-use or recycle packaging responsibly where possible.
Keep these instructions for future reference or for subsequent possessors.
SLR-4400
1200
39 M
Lumens
1900
53 M
Lumens
4400
74 M
Lumens
9 H
5 H
2 H
