150 Lbs
Weight Limits:
68 Kgs
WARNING
• WARNING FOR YOUNG CHILDREN - This product contains small components, please ensure that they are kept away from small children.Children under the age of 6,
small infants and babies must not sleep on this bed for safety reasons. To prevent injury and damage to this unit, PROHIBIT jumping on it.
• Recommended # of people needed for assembly 2 (however it is always better to have an extra hand.) Estimated assembly time is 2 hour.
• THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE
All manuals and user guides at all-guides.com
0
29986 54401
8
100 Lbs
45 Kgs
5440096

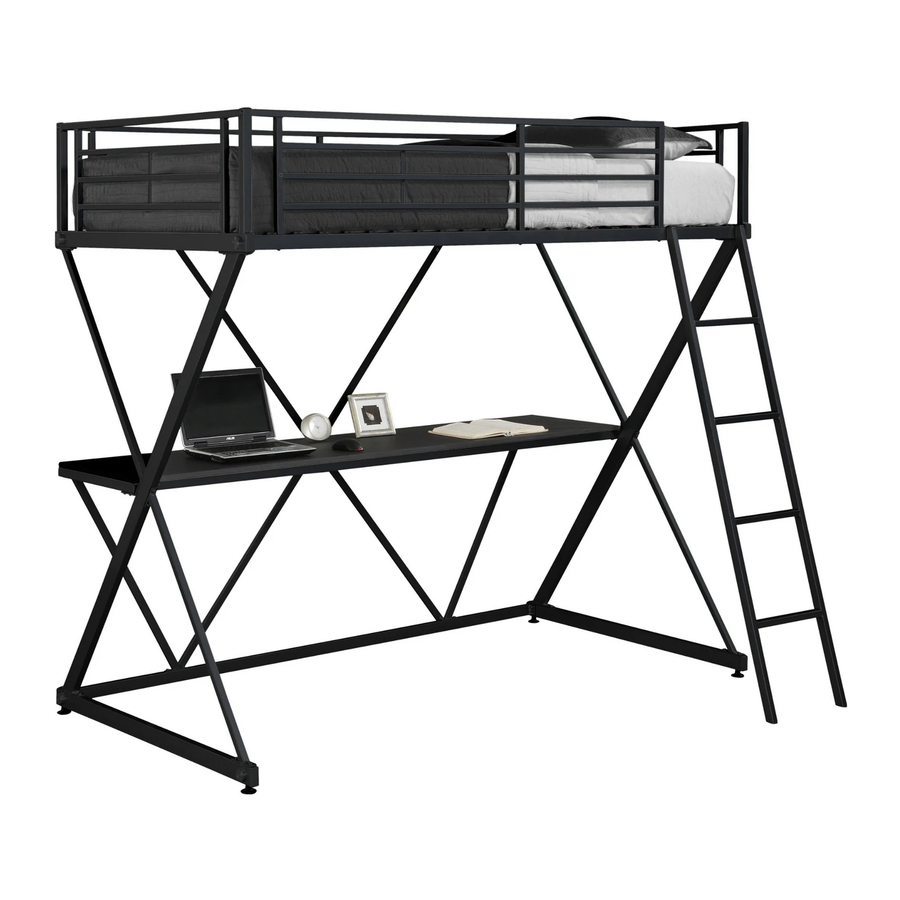

BLACK METAL X-LOFT BED - MX
DO NOT RETURN PRODUCT TO THE
STORE
STOP
Individual stores do not stock parts.
If a part is missing or damaged, call our
toll-free customer service line. We will
gladly ship your replacement parts FREE
of charge.
1-800-267-1739
Need Parts or Assistance?
or access our website
www.dhpfurniture.com
For prompt, reliable service; please have your assembly
manual ready.
Date of Purchase
___ / ___ / ___
Lot Number
_________
B34544009600
Publicidad
Manuales relacionados para DHP 5440096
Resumen de contenidos para DHP 5440096
- Página 1 All manuals and user guides at all-guides.com 5440096 29986 54401 BLACK METAL X-LOFT BED - MX 150 Lbs DO NOT RETURN PRODUCT TO THE Weight Limits: 68 Kgs STORE STOP Individual stores do not stock parts. If a part is missing or damaged, call our toll-free customer service line.
- Página 2 All manuals and user guides at all-guides.com...
- Página 3 All manuals and user guides at all-guides.com HARDWARE LEFT BASE RIGHT BASE T905690 KING SUPPORT T905630 QTY: 1 T905600 UPPER BRACE QTY: 1 QTY: 2 BOTTOM BRACE T905620 T905610 QTY: 2 QTY: 2 HOLE AGUJERO NO HOLES 0 AGUJEROS HOLE AGUJERO UPPER SIDE RAIL T905660...
- Página 4 All manuals and user guides at all-guides.com HARDWARE DESK SUPPORT REAR GUARD RAIL SLATS PACK FRONT GUARD RAIL T905730 T905710 T905720 T905700 QTY: 1 QTY: 1 QTY: 1 QTY: 1 Please respect the direction of the arrow when assembling DESK REAR STRETCHER T905760 REAR BRACE...
- Página 5 All manuals and user guides at all-guides.com HARDWARE BOLT M6 X 15 mm T136130 QTY: 48 BOLT M6 X 35 mm BOLT T136050 M6 X 40 mm BOLT QTY: 2 T136070 M6 X 45 mm QTY: 1 T136090 BOLT QTY: 3 M6 X 60 mm T136110 QTY: 6...
- Página 6 ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS. TO PREVENT INJURY, DHP RECOMMENDS ONE TWIN SIZE MATTRESS AND ONE FULL SIZE MATTRESS TO BE USED. USE ONLY A TWIN MATTRESS WHICH IS 74"-75" LONG AND 37 1/2"-38 1/2" WIDE ON UPPER BUNK.
- Página 7 All manuals and user guides at all-guides.com As shown in detail (1 & 2), attach the Right Base (D) to the King Support (A) & Bottom Brace (B). As shown in detail (3 & 6) attach the Upper Brace (C) and Safety Bracket (V) to the King Support (A). Attach the Right Guard Rail (E) to the Upper Brace (C) &...
- Página 8 All manuals and user guides at all-guides.com As shown in detail (1 & 2), attach Side Rails (H , G & I) to the Left and Right Guard Rails (E & F) with bolts (5). As shown in details (1, 3, 4 & 5), attach the Front & Rear Guard Rails (K & L) to Left and Right Guard Rails (E & F) with bolts (2), and to Side Rails (H &...
- Página 9 All manuals and user guides at all-guides.com As shown in detail (1), insert, by hand, the slats (M) into the Upper Side Rails (H & G). Attach the ends of the belt (M) to the Right & Left Guard Rails (E & F) with Screw (7), as shown in detail (2). As shown in detail (3), attach the Ladder (R) to the Ladder Side Rail (H) with Bolts (4).
- Página 10 All manuals and user guides at all-guides.com Attach the Desk (Q) to the Desk Support (N) with Bolts (6), as shown in the details below. Hardware Required 10 /15 B34544009600...
- Página 11 All manuals and user guides at all-guides.com As shown in detail (1), attach the desk "assembled in step 4" to the Upper Brace (C) with Bolts (5). STARTING FROM THE TOP as shown in detail (2), attach the Rear Stretchers (O) to the Upper Side Rail (G), Desk Support (N) and the Lower Stretcher (I) with Bolts (9 &...
- Página 12 All manuals and user guides at all-guides.com 5440096 NIGRO CAMA DE METAL- MX Limites Del Peso: 150Lbs\68Kgs , ESCRITORIO : 100 Lbs\45 kgs NO REGRESE ESTE PRODUCTO A LA TIENDA ALTO ALTO Las tiendas no tienen partes. Si faltan partes o las partes están dañadas llame gratis al servicio al cliente. Con gusto mandamos las partes. Sin cargo alguno.
- Página 13 PROBABILIDAD DE QUEDAR ATRAPADO O DE CAÍDAS. * PARA PREVENIR LESIÓN, DHP RECOMIENDA QUE SE UTILICE UN COLCHÓN DE TAMAÑO INDIVIDUAL Y UN COLCHÓN DE TAMAÑO MATRIMONIAL. * UTILICE SOLAMENTE UN COLCHÓN INDIVIDUAL QUE SEA 74"-75"DE LARGO Y 37 ½"-38 1/2" DE ANCHO EN LA CAMA SUPERIOR.
- Página 14 All manuals and user guides at all-guides.com PÁGINA 07 Según las indicaciones del detalle (1 & 2), ata la base correcta (D) al & de rey Support (A); Apoyo inferior (B). Según las indicaciones del detalle (3 & 6) ata el apoyo superior (C) y el soporte de seguridad (V) al rey Support (A). Ate el carril de protector derecho (E) al & superior del apoyo (C);...
- Página 15 All manuals and user guides at all-guides.com...
