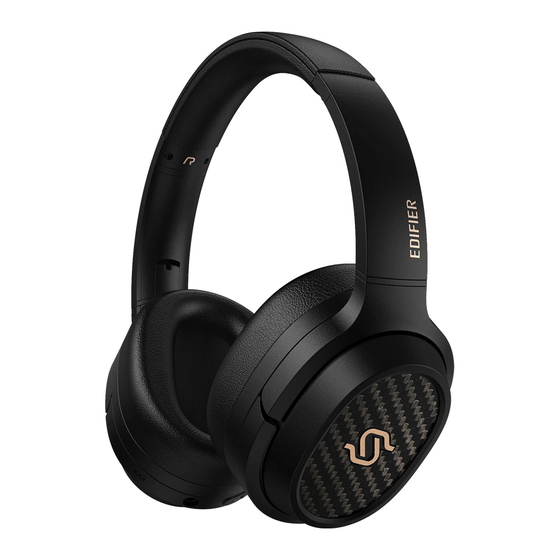

Wireless Over-Ear Headphones
EN 1. Power ON/OFF
1. Power ON: Press and hold the MFB button for 3s when power OFF.
2. Power OFF: Press and hold the MFB button for 3s when power ON.
2. Pairing
1. Press and hold the MFB button for 3s when power off. Red and Blue LED
will blink alternately and rapidly.
2. Select "EDIFIER STAX SPIRIT S3" in your device setting to connect. Blue LED
will blink twice per 5s after connected.
Note:
1. For subsequent use, the headset will auto-connect to device used last time.
2. Press and hold the MFB button for 5s when power off to skip the latest
connected device and pair the new Bluetooth device.
3. Reset
5s
1. Power on and disconnected to any Bluetooth devices.
2. Simultaneously press and hold the "+" "-" buttons for 5s to reset and start
Bluetooth pairing.
3. Blue LED will blink 6 times rapidly when successful.
4. Dual Connectivity
5s
1. Pair device A with the headphone. Upon success, disconnect the Bluetooth
of device A or power off the headphone and long press the MFB button of
headphone for 5s to enter the pairing mode.
2. Select "EDIFIER STAX SPIRIT S3" in device B to connect succesfully.
3. Select "EDIFIER STAX SPIRIT S3" in device A to connect manually. Blue LED
will blink twice per 5s when successful.
5. Charge
1. Please connect the product to power source with the included Type-C
charging cable for charging.
2. Red LED is steady lit when charging and off when fully charged.
Input: 5V
1.5A
6. AUX Cable
1. Connect the AUX cable to the headphone when power on, and the
headphone will switch to the AUX in sound source state; connect the
AUX cable to the headphone when power off, the headphone will not
power on automatically, need to press and hold the MFB button for 3s to
turn on.
2. Unplug the AUX cable from the headphone and the headphone will power
off automatically.
3. Green LED is steady lit when in the AUX in sound source state.
7. Controls
Note:
1.
: Press and hold.
2. Please do not charge the headset when there is sweat or other liquids
inside the charging port, which may damage the headset.
3. Images are for illustrative purposes only and may differ from the actual
product.
4. Download Edifier Connect App for more customizable control settings.
8. Ear cushion replacement method
For more information, please visit our website:
@Edifierglobal
Model: EDF200071
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
2022 Edifier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade,
information contained herein may be subject to change from time to
time without prior notice.
Products of EDIFIER will be customized for different applications.
Pictures and illustrations shown on this manual may be slightly
different from actual product.
If any difference is found, the actual product prevails.
S3
Manual
3s
3s
x1
x1
x2
x3
x1
x1
x2
x1
www.edifier.com
@Edifier_Global
EDIFIER STAX SPIRIT S3
A
@Edifier_Global
EDIFIER STAX SPIRIT S3
B
