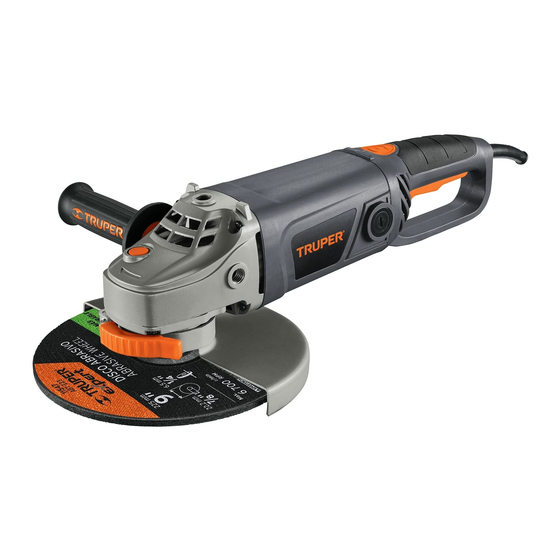

- Página 1 Manual Angle grinder 2.8 Hp 9” Power Wheel Applies for Code Model 12482 ESMA-9N3 ESMA-9N3 Read this manual thoroughly CAUTION before using the tool.
- Página 2 Contents WARNING Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General power tool safety warnings make the Warranty valid if necessary and to avoid hazards Safety warnings for angle grinders or fatal injuries please read and understand this Manual before Parts using the tool.
- Página 3 Technical Data ESMA-9N3 Code 12482 Description Angle grinder Wheel 9” Voltage 127 V Frequency 60 Hz Current 16 A Power 2.8 Hp Speed Screwed thread size 6 200 RPM 5/8-11-UNC-1A Duty cycle 50 minutes work and 20 minutes idle. Maximum 6 hours per day.
- Página 4 General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
- Página 5 Safety warnings for angle grinders This power tool is intended to function as a cutting tool. Read all safety warnings, instructions and specifications provided.Failure to follow the instructions outlined below may result in electric shock, fire and/or serious injury: While operating the grinder Select the right disc CAUTION •...
- Página 6 Safety warnings for angle grinders DANGER KICKBACK (Sharp Recoil) Abrasive discs are used for perfect grinding. If lateral forces are applied, they can break; Kickback (sharp recoil) is a sudden reaction when a e) Always use flanges in perfect condition, of the correct rotating wheel, backrest, brush, or other accessory gets size according to the shape of the selected disk.
- Página 7 Parts Spindle Handle rotation Protective lock Lock nut blocking button guard wrench Handle Guard bracket Grinding wheel Spindle 9” lock (included) Auxiliary handle Protective guard Outer Wheel flange Inner flange Auxiliary handle assembling orifice Power Guard Power cord bracket cord protector Carbon brush Switch trigger...
- Página 8 Preparation Auxiliary handle assembly • For a safer operation use the auxiliary handle. Fit it into any of the three mounting orifices. Choose the one that make your job easier. Start Up The Angle Grinder is a power tool. It is used to grind and cut steel, pipes, and angles in iron, bricks, tiles, stone and/or ceramic pieces.
- Página 9 Start Up Useful Tips • To prevent damaging the disc work using the disc into the right position. • Press onto the work piece using less force than the tool’s weight to avoid overload and damaging the motor and disc. •...
- Página 10 Notes • ENGLISH...
- Página 11 Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800-018-7873 to get information about the nearest Service Center.
- Página 12 06060, where you can also purchase parts, components, consumables and accessories. The costs of transportation of the product that derive from its fulfillment of its service network are included. Truper will not require any proof of purchase to make the warranty effective. Phone number 800-018-7873. Made in China.
