Unpacking

Carton Contents

• Lance sections
• Quick-Connect to M22 high-pressure hose adapter
• Shoulder strap
• S4 allen key
• S5 allen key
• U-pin
• Manual with registration card
1. Carefully remove the sky lance and check to see that all of
the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you find damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe + Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the sky lance. The
packaging is made of recyclable materials. Properly
dispose of these materials in accordance with local
regulations or save the packaging for long-term product
storage.
IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils, or small
parts. These items can be swallowed and pose a suffocation
risk!
Assembly

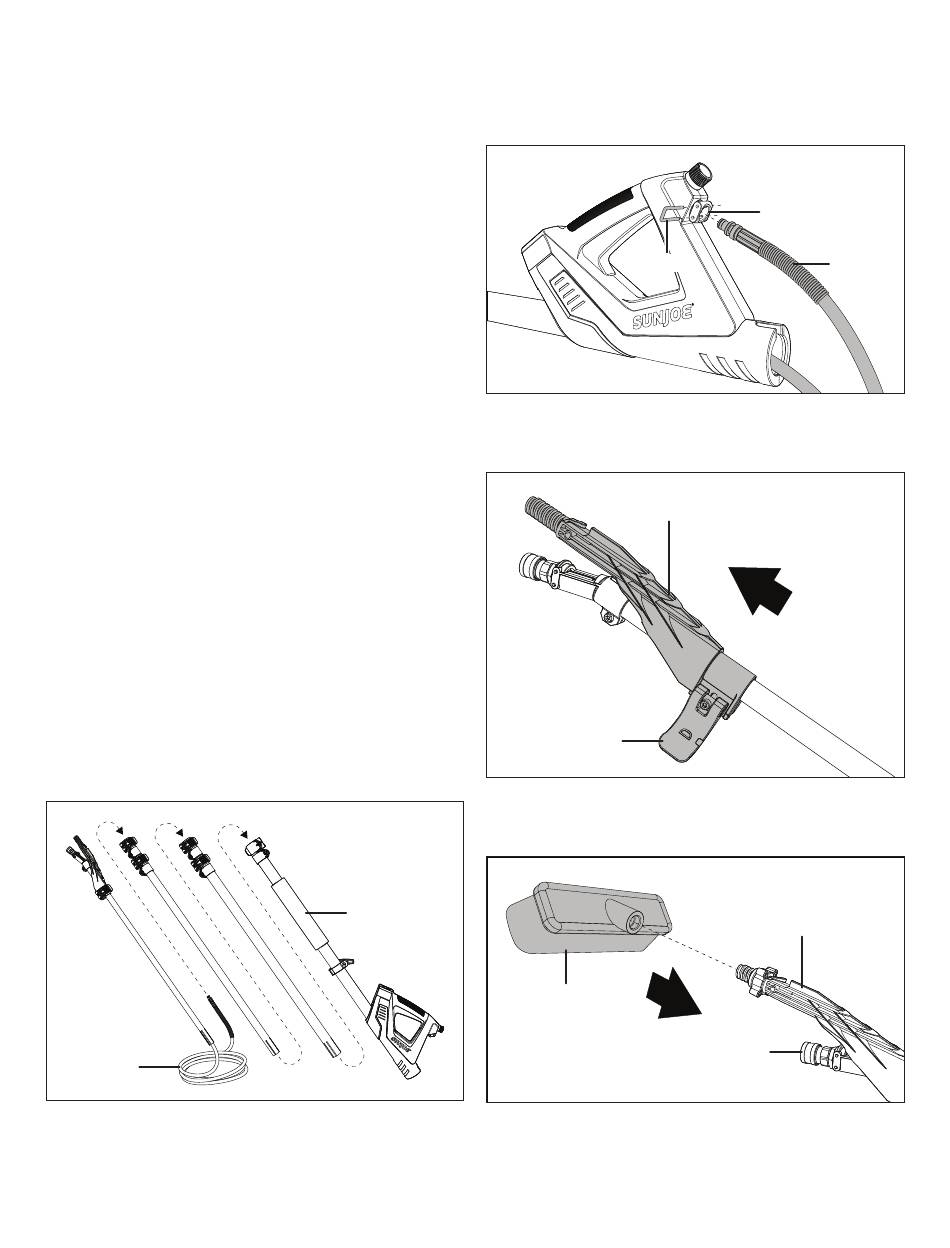

1. Connect the lance sections together. Feed the hose
attached to the brush mount thorugh all the sections. Use
the cam-locks to fix them in place (Fig. 1).
Hose
customer service center at
®
Fig. 1
Lance
sections
2. Insert the end of the hose into the valve and fix it in place
using the U-pin (Fig. 2).
Fig. 2
U-pin
3. Open the cam-lock and slide the brush mount forwards
(Fig. 3).
Brush mount
Cam-lock
4. Screw the brush onto the brush mount so that it is facing
down, in line with the quick-connect collar (Fig. 4).
Brush
Quick-Connect collar
3
Valve
Hose
Fig. 3
Fig. 4
Brush mount
