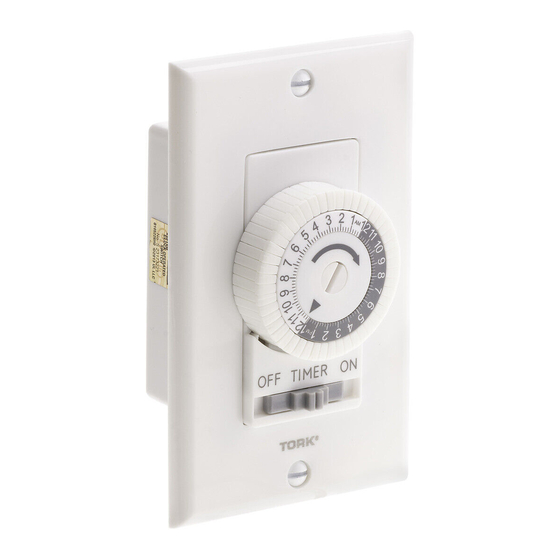

24HR MECHANICAL IN-WALL TIMER
MINUTERIE MÉCANIQUE MURALE 24 HEURES
TEMPORIZADOR MECÁNICO DE PARED DE 24 HORAS
FEATURES
• 24 hour ON/OFF timer. Up to 24 ON and 24 OFF setting in a 24 hour period
• 1 pin = 30 minutes
• Easy to in a standard 2-1/2in vertically installed junction box replacing a
standard single pole switch
CAUTION
FOR INDOOR USE ONLY.
DO NOT USE WITH ANY APPLIANCE THAT EXCEEDS THE CAPACITY OF THE TIMER.
FAN HEATERS AND HEATERS WITH EXPOSED ELEMENTS SHOULD NOT BE CONNECTED TO TIMERS.
INSTALLATION
1. Turn off power to the branch circuit at the circuit breaker.
2. Remove the existing switch.
3. Using the wire nuts provided connect the wires of the timer and wall box as instructed below. (See wiring schematic)
a. Connect the HOT/live of the branch circuit (Black) to the black wire from the timer.
b. Connect the Neutral Wires of the branch circuit and load from the box (white) to the white wire from the timer.
c. Connect the HOT/live wire of the load to the red wire from the timer.
d. Ground wire is not required for this timer because the cover is non conductive.
NOTE: Be sure all wire nut connections are secure.
4. Tuck the wires into the wall box leaving room for the timer.
5. Using the screws provided, mount the timer to the wall box being careful not to crush any wires.
Wallbox
Timer
Black(Hot)
125VAC/60Hz
Power In
White(Neutral)
Front Cover
Red
Black(Hot)
Load
White(Neutral)
White(Neutral)
White(Neutral)
Wiring schematic
LI-1135(A)
701B
INSTRUCTION MANUAL
MODE D'EMPLOI
MANUAL DE INSTRUCCIONES
125VAC 60Hz
General Purpose
Resistive
Tungsten
Electronic Ballast/LED
Motor
CAUTION
• The timer has 3 setting: OFF, ON and TIMER.
• To always on power from load, place the side
switch in ON position.
• To remove power from load, place the side
switch in OFF position.
TO USE THE TIMER:
a. Place the slide switch in the "TIMER"
position.
b. Rotate the dial clockwise until the
current time lines up with the arrow in
the center dial. ( )
c. Timer can set up to 48 ON/OFF
commands per day. Using your finger,
pen or screwdriver, pull up all pins that
corresponds to desired "OFF" time. For
desired "ON" time, make sure pins are
pushed down. Each pin represents
30 minutes:2 pins=1 hour.
FOR TECHNICAL SUPPORT:
SOUTIEN TECHNIQUE :
PARA COMUNICARSE CON
EL SERVICIO TÉCNICO:
888-500-4598
15A
15A
1250W
500VA
1/2HP
