Model/Modelo/Modèle
35766LFp
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
p Specify Finish/Especifíque el Acabado/Précisez le Fini
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
1-800-345-DELTA (3358)
customerservice@deltafaucet.com
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
5/25/2020

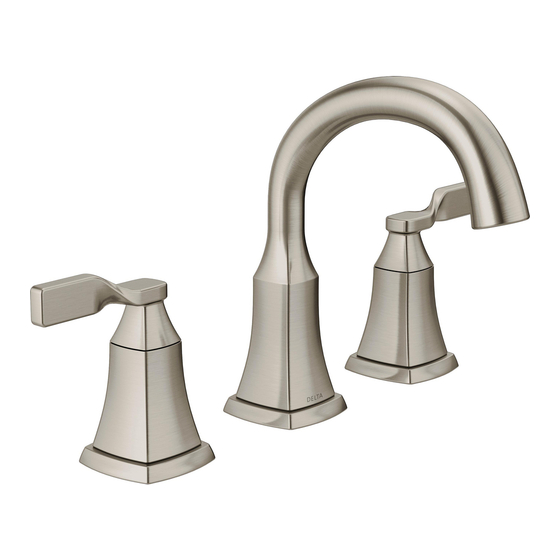

TWO HANDLE WIDESPREAD
88861
BATHROOM FAUCETS
LLAVES DE LAVAMANOS
EXTENDIDAS DE DOS MANIJAS
ROBINETS À ENTRAXE LONG À
DEUX POIGNÉES POUR LAVABO
1
88861 Rev. C
Publicidad
Manuales relacionados para Delta SAWYER 35766LF-SP
Resumen de contenidos para Delta SAWYER 35766LF-SP
- Página 1 Pour obtenir la référence des pièces de rechange ainsi que pour avoir accès à d’autres documents techniques et renseignements sur le produit, allez à www.deltafaucet.com 1-800-345-DELTA (3358) customerservice@deltafaucet.com Read all instructions prior to installation. CAUTION Failure to read these instructions prior to installation may result in personal injury, property damage, or product failure.
- Página 2 Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto.
- Página 3 Place spout (1) with gasket (2) through mounting hole in sink. Secure SHUT OFF WATER SUPPLIES. Remove old faucet. Slide hot and spout with gasket and bracket (3) and nut (4). Note: If sink is uneven, cold end valves (1) with gaskets (2) through sink mounting holes. use silicone under the gasket.
- Página 4 1/2" (13 mm) IPS Install Pop-Up Assembly CONNECT TO WATER SUPPLIES. (HOOK-UPS NOT PROVIDED). Apply silicone to underside of flange (1). Remove stopper (1) and flange (2). Turn on hot and cold water supplies and flush water Insert body (2) into sink. Screw flange onto Screw nut (3) all the way down.
- Página 5 *Install stems (1) correctly for FLUSH SYSTEM/CHECK FOR LEAKS. Maintenance Remove aerator (1) using supplied wrench (2) and turn faucet proper handle rotation: SHUT OFF WATER SUPPLIES handles (3) to the full on mixed position. Turn on hot and cold NOTE: Remove handles by hand turning Note: water supplies (4) and flush water lines for one minute.
- Página 6 Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1 Delta seller by a purchaser who owns but does not live in the residential dwelling in which the faucet is initially installed, such as in a rented or Attention: Customer Solutions Attention: Customer Service leased single unit or multi-unit detached home (duplex or townhome), or a condominium, apartment building or community living center.
