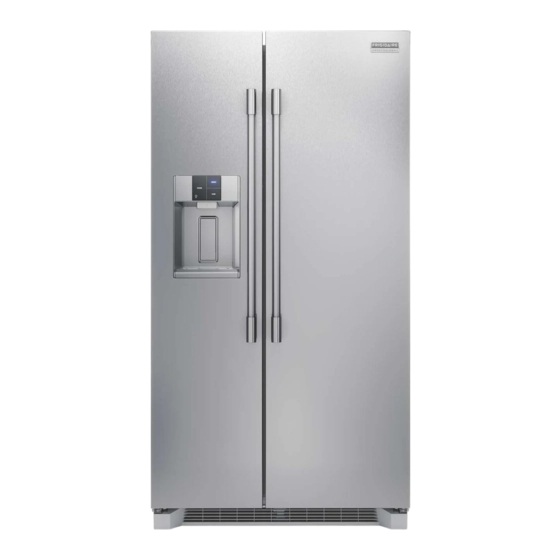

Frigidaire PRSC2222AF Instrucciones De Instalación

WARNING
To avoid electric shock, which can cause death or severe personal injury, do not connect your
appliance to an electrical power source until you have completed Step 3 of these instructions.
Tools Necessary: Adjustable Wrench

AND OR OR
These installation instructions are
provided only as a possible cus-
tomer option. We recommend you
Phillips Head & Socket Wrench Set ⅜" Fixed Wrench
TM
use a service or kitchen contracting
Flat Head Screwdrivers
professional to install your appliance.
1
Site Installation
Your unit is designed to be part of a built-in kitchen

cabinet system. Be sure to coordinate site preparation
and installation with your kitchen contractor. Include
these minimum guidelines in your site preparation:
• Choose a place near a grounded electrical outlet.
Information about cabinetry con-
• Do not use an extension cord or an adapter plug.
struction for your new appliance
• Avoid direct sunlight and close proximity to a
is available for contractors. Call
range, dishwasher or other heat source.
1-877-435-3287.
• The floor should be level and able to support a
fully loaded appliance.
• The ice and water dispenser requires water
supply access.
• Plan for easy access to countertops when
removing food.
Room temperatures below 55°F
• For complete access to drawers and freezer
(13°C) or above 110°F (43°C) will im-
baskets, fully open the doors.
pair cooling ability of the compressor.
Allow the following clearances for ease of
installation, proper air circulation, and plumbing and electrical connections:
Sides & Top: ⅜ in. / Rear: 1 in.
2
Transporting to Refrigerator Site
After removing the external packaging from your refrigera-
tor, you may still need to use a hand truck to move it through
close spaces or entrances. If the refrigerator is larger than an
entrance, consider 2 options:
• Remove the entrance door if one exists.
• Remove the refrigerator doors (see how in your Use & Care Manual).
When using a hand truck:
• Load refrigerator from side of cabinet only.
• Do not run retaining straps over handles.
• Do not overtighten retaining straps.
• Never use refrigerator handles to move
Shifting the refrigerator from side
the refrigerator.
to side may damage flooring.
• Remove tape from the doors only after unit is in place.
3
Water Supply Connection
What you will need:
• Access to a cold water line
with pressure between 30
and 100 psi.
To avoid property damage:
• A water supply line made of
• Use a water supply line made
braided stainless steel tub-
ing or polyline. To determine the length needed,
measure the distance from the water valve inlet
• Ensure water supply complies
at the back of the refrigerator to your cold water
pipe. Then add approximately 6 ft (1.8 m), so you
can move the refrigerator out for cleaning.
• A shutoff valve to connect the water supply line

to your household water system. DO NOT use a
self-piercing type shutoff valve.
• While we do not recommend copper water lines, if
For homes with existing valves,
you choose to use copper, DO NOT reuse com-
use Smart Choice® water line kit
pression fitting or use thread seal tape. Use a new
5304437642 (with a 6 ft. stainless
compression nut and ferrule (sleeve) for connect-
steel water line), and for homes
ing a copper supply line to the inlet water valve.
without an existing valve, use Smart
Choice ® water line kit 5304493869
(with a 6 ft. polyline water line).
Please refer to Frigidaire.com for
more information.
Not satisfied with your refrigerator installation?  Please contact the store from which you purchased it.
Installation Instructions for
Side-by-Side Refrigerator
To connect the water supply line to the ice maker inlet valve:
1. Disconnect the unit from the electrical power source.
2. Place the end of water supply line into a sink or a bucket. Turn ON
the water supply and flush the supply line until the water is clear. Turn
OFF the water supply at the shutoff valve.
3. Remove the plastic cap from water valve inlet and discard the cap.
4. If you use copper tubing, slide brass compression nut, and then
ferrule (sleeve) onto water supply line. Push water supply line
NOTE
into water valve inlet as far as it will go (¼" / 6.4 mm). Slide
ferrule (sleeve) into valve inlet and finger tighten compression
nut onto valve. Tighten another ½ turn with a wrench; DO NOT
overtighten. See Figure 1.
If you use braided flexible stainless steel tubing, the nut is al-
ready assembled on the tubing. Slide nut onto valve inlet and fin-
ger tighten nut onto valve. Tighten another ½ turn with a wrench;
DO NOT overtighten. See Figure 2.
5. With steel clamp and screw, secure water supply line
(copper tubing only) to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper tubing only), about 2½
turns, behind refrigerator as shown and arrange coils so they do
not vibrate or wear against any other surface.
NOTE
7. Turn ON the water supply at the shutoff valve and tighten any
connections that leak.
8. Reconnect refrigerator to an electrical power source.

NOTE
• The ice maker's fill valve may operate noisily if the household
CAUTION
water supply is shut off.
• After ensuring no water leaks exist at any connection, be sure
to check for leaks again in 24 hours.
• See your Use &
setting up and operating the ice and water dispensing system.
A Plastic Water Tubing to Ice Maker Fill Tube
B Steel Clamp
C Brass Compression Nut
D
Ferrule (Sleeve)
E Copper Water Line
F Water Valve Bracket
4
Permanent Position Placement
CAUTION
If possible, use a hand truck to position the refrigerator
directly in front of its cabinet enclosure.
Be careful not to move the refrigerator beyond its wa-
ter supply (copper tubing) connections.
Plug in the power cord, and push the refrigerator
straight back into place.
IMPORTANT
If you are installing your refrigerator without
CAUTION
connecting it to a water supply, make sure the
ice maker's power switch is turned Off (see the
Use & Care Manual for more details).
5
Refrigerator Leveling and Door Adjustment
of braided stainless steel tubing
or polyline.
Installation Checkoff List:
with local plumbing codes.
 All 4 corners of the cabinet must rest firmly on the floor.
 Level the cabinet at the front and rear ensuring the doors will open, close, and seal properly.
NOTE
 Align and level the doors with each other.
Level the cabinet using the leveling feet:
1. Open both doors and remove the toe grille (see Toe Grille
Installation and Removal in the INSTALLATION section of your
Use & Care Manual).
2. Level the cabinet at the front and rear so the front is raised ¼" (6
mm) above the rear. Close the doors. Use an adjustable wrench to
loosen the feet (A). Once you have lowered the leveling feet slightly,
use the wrench on the nut (B) to lower (counterclockwise) or raise
(clockwise) the front of the cabinet ensuring the unit is sitting flat on the floor.
3. Check the pull force on the handles after the unit has run for 5 minutes. This ensures an
air-tight seal forms between the door gasket and the metal part of the cabinet.
A
I
A
K
Care Manual for detailed information about
G
Valve Inlet
H Water Valve
I Copper Water Line from Household Water Supply*
J Braided Flexible Stainless Steel Water Line
K
6 ft. (1.8 m) Braided Flexible Stainless Steel
Water Line from Household Water Supply*
*Include enough tubing in the loop to allow
moving the refrigerator out for cleaning
CAUTION
• Shifting the refrigerator from side
to side may damage flooring.
• Do not block the toe grille on the
lower front of your refrigerator.
Sufficient air circulation is essen-
tial for proper operation.
(if necessary)
1/4"
(6 mm)
This document should only be removed by customer after installation.
Level the doors using the adjustable lower hinge:
B
1. Before leveling either door, remove set screw that locks door
height into position using a / hex key. (See illustration 1.)
3
32
2. If the freezer door is lower than the refrigerator door
C
(2A) or the refrigerator door is lower than the freezer
E
D
door (2B), raise the door by turning the adjustment screw
F
G
counterclockwise using a 12 mm wrench (See illustration 3).
3. After leveling, verify the door stop contacts the lower hinge
H
and the top of the door does not contact the upper hinge
through full movement of the door
(from fully closed to fully open).
4. Reinstall the set screw, locking the
door height.
5. To replace the toe grille, open both
doors. Slide the left and right sides
Figure 1
of toe grille over the lower hinges
of the refrigerator. While pushing
B
the toe grille firmly against cabinet,
fasten the bottom clips of the toe
grille to the cabinet. Fasten the top
clips to the cabinet. Close the doors.
Fasten the right and left side clips
J
F into the groove of the bottom hinge.
G
6
H
Removing Internal Shipping Materials
We use packing foam, clips and tape to secure the internal
parts of your refrigerator for shipping. Once the refrigerator is in
position, you can remove this material.
Location of these
materials may vary
Figure 2
depending on your model.
7
Suggestions
Operation problems are possible if any of the installation tasks are not completed. Here is a
list of things to check for:
• Is the refrigerator's power cord plugged in?
• Is the refrigerator connected to the household water supply?
• If you had to remove the refrigerator and freezer doors, did you reattach water
and power connectors at the door hinges? (See the Use & Care Manual for detailed
instructions on removing and replacing doors.)
• Is the ice maker power switch turned On?
Other possibilities to check:
• Is the power to the receptacle turned on?
• Is the water filter above the fresh food compartment fully seated (see Use & Care Manual
for details)?
If you still have operation problems after checking these suggestions, please see the
TROUBLESHOOTING section in your Use & Care Manual.
Congratulations. You are ready to begin enjoying your new refrigerator.
• To become aware of IMPORTANT SAFETY INFORMATION and learn how to operate your
refrigerator, please read the entire Use & Care Manual.
• Start with the NORMAL OPERATING SOUNDS section of the Manual to learn more about
what to expect during typical operation.
• Please register your product online at Frigidaire.com, or you can simply send in the
Registration Card.
And thank you for choosing Frigidaire!
8
 Installation Checkoff List
Doors
 Handles are secure and tight
 Door seals completely to cabinet on all sides
 Doors are level with each other
Leveling
 The cabinet is leveled at the front and
rear, so the front is raised ¼" (6 mm)
above the rear to ensure door will open/
close and seal properly.
B
 Toe grille is properly attached
A
 Cabinet is level on the floor
1/4"
(6 mm)
Electrical Power
 House power turned on
 Appliance plugged in
Set Screw
Tornillo de
fijacion
Vis fixe
/ "
3
/ "
3 32
32
1
Adjustment
Screw
El tornillo
de ajuste
Vis de
B
A réglage
12 mm
2 3
12 mm
Ice Maker
 House water supply connected
to appliance
 No water leaks present at all
connections - recheck in 24 hours
 Ice maker is turned ON
 Ice and water dispenser operates correctly
Final Checks
 Shipping material removed
 Refrigerator and freezer temperatures
set to recommended setting
 Crisper humidity controls set
(some models)
 Registration card sent in
P/N: A24408102
