25. Graphic Equalizers
These graphic equalizer allows you to adjust the frequency
response of a signal, with a maximum of ±12 dB of signal boost or
cut for each of the frequencies. The Powerpod 620 models feature
a stereo 7-band equalizer for both the Main and Monitor signals.
26. Phantom Power Switch and Indicator
When this switch is in the on position it activates +48V of phantom
power for the XLR inputs on channels 1 to 4, allowing condenser
microphones to be used on these channels. The corresponding
LED will illuminate when the Master Phantom Power is activated.
27. Amp Select Switches
This switches control the activity of the built-in power amp,
enabling the user to alternate between the different signals which
can be processed by the built-in power amp and routed to the
speaker outputs on the rear of the device. This switch allows you
to select from: Main/Monitor – taking the monitor and main signals
and directing them to the appropriate speaker outputs – Main 1 /
Main 2 – using the Main 1/2 signal to feed the speaker outputs –
and Main Bridge – which combines the Main 1 and 2 signals and
feeds them through the Bridge output.
NB. When using a mono bridge connection, do not connect a speaker to any
of the Main/Monitor A or B jacks, located on the rear of the mixer. Use the
"Bridge" speaker jack only.
25
23
24

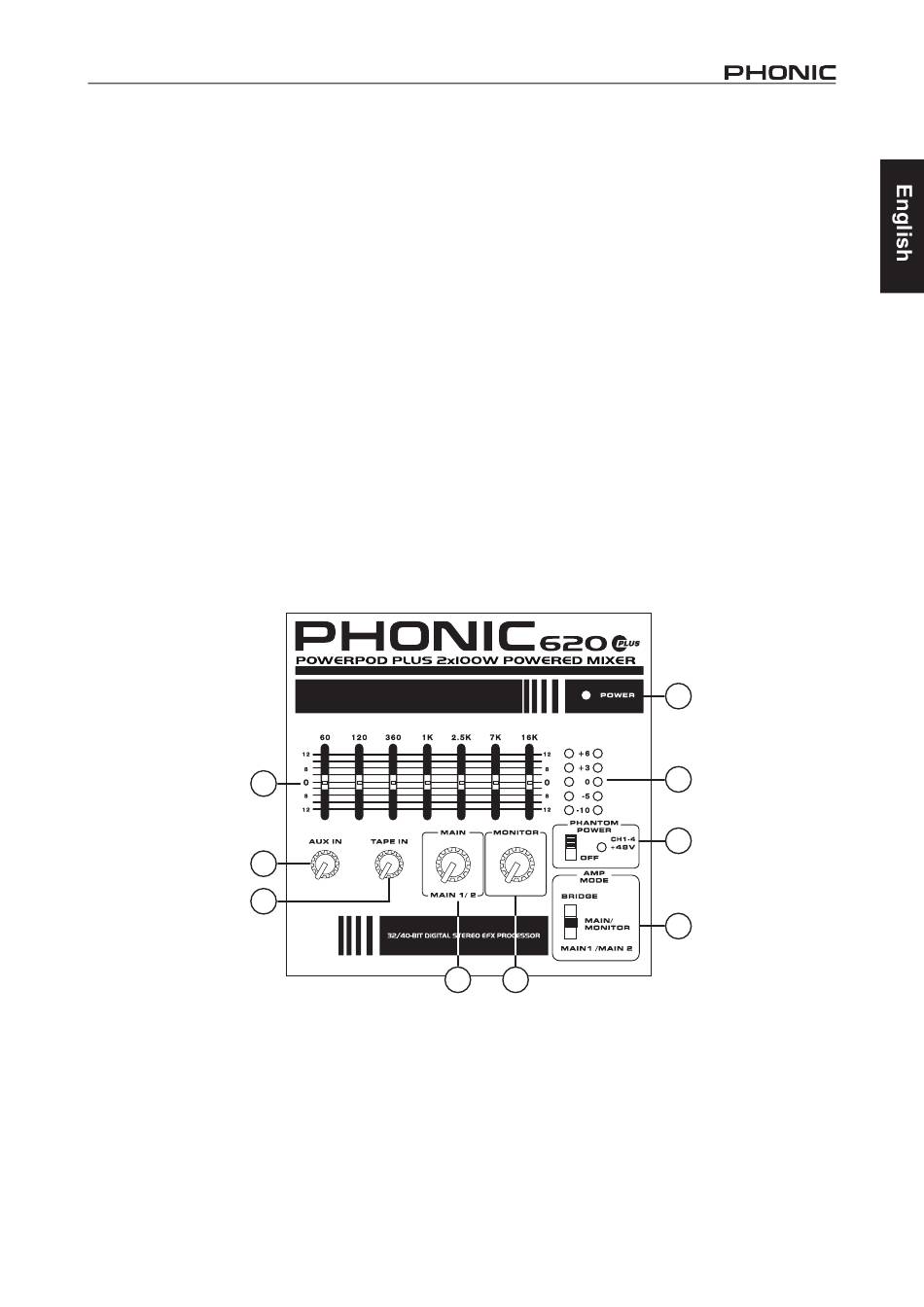

POWERPOD 620 PLUS / POWERPOD 620 R
28. Monitor Level Control
This rotary control allows the user to adjust the final signal level
sent to all Monitor outputs.
29. Main Level Control
This rotary control allows the user to adjust the final signal level
sent to the Main 1-2 and Speaker outputs.
30. Level Meter
These level meters give accurate indications of when audio levels
of the Main 1/2 and Monitor outputs reach certain levels. The 0 dB
indicator illuminates is approximately equal to an output level of
+4 dBu. It is suggested for the maximum use of audio to set the
various levels controls so that it sits steadily between 0 and the
second highest level indicated on the Level Meter to make full use
of audio, while still maintaining fantastic clarity.
31. Power Indicator
This LED indicator illuminates when power of your Powerpod
mixer is activated.
29 28
31
30
26
27
