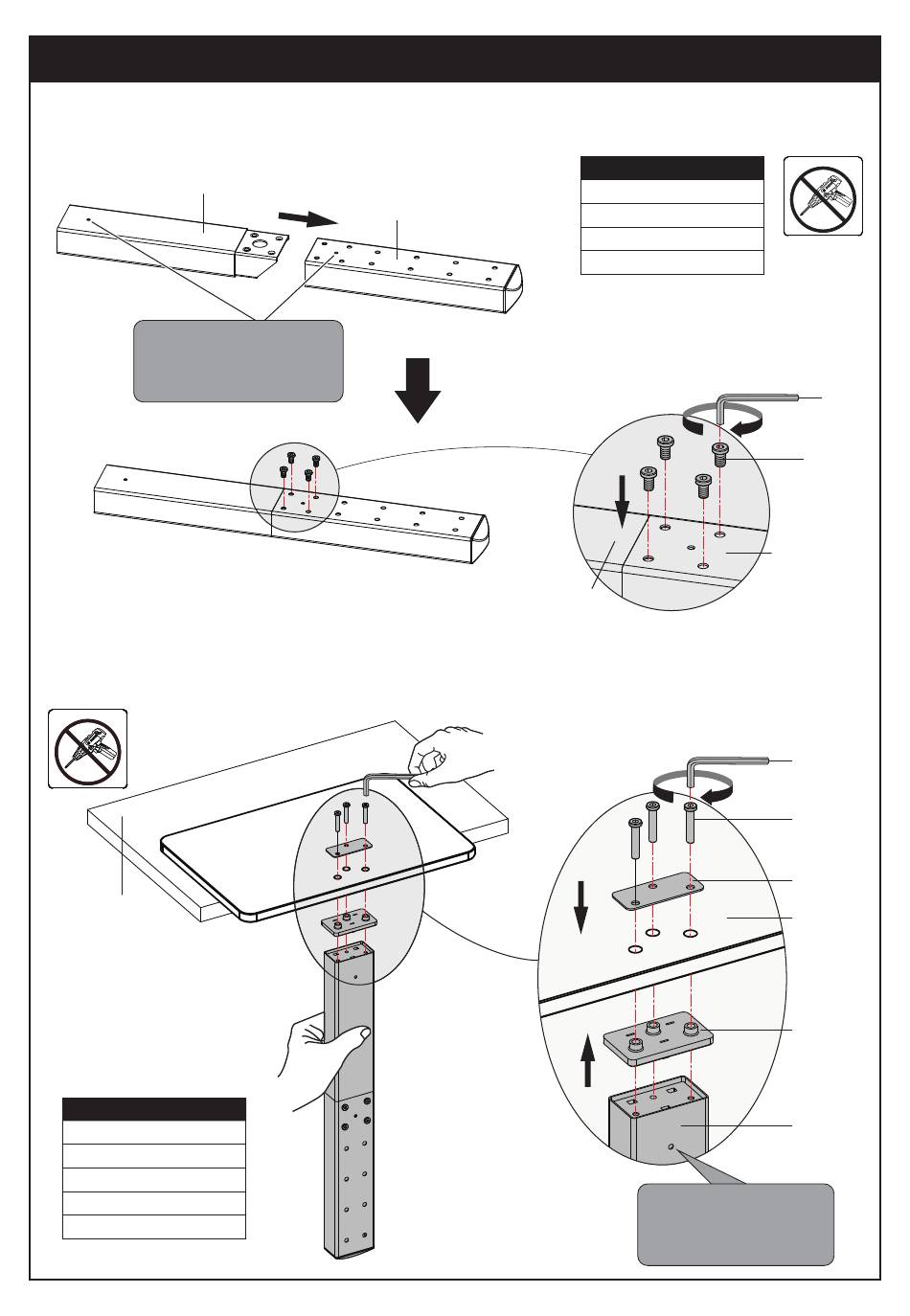

STEP 1: Support Pillar Installation
Step 1-1:
Connect two Support Pillars (②&③). Then insert 4pcs Screws (E) through the holes of Support
Pillars (②&③), and use the 4mm Allen Key (J1) to tighten.
③
Note:
Support Pillar should be
assembled with clip holes
in the same side.
Step 1-2:
Put Base (①) on a table; put washer (B) and M6×30mm bolts (A) on the base; put Plastic Cover (F)
and Support Pillar (③) under the base. Then tighten the bolts (A) with the 4mm allen key (J1).
No! No!
Table

Checklist

① (x1)
Base
A (x3)
Bolt M6×30mm
B (x1)
Washer
F (x1)
Plastic Cover
J1 (x1)
4mm Allen Key
②
03
Checklist
② (x1)
Support Pillar
③ (x1)
Support Pillar
E (x4)
Bolt M6×10mm
J1 (x1)
4mm Allen Key
③
Note:
Support Pillar should be
placed with clip holes
facing backwards.
No!
J1
E
②
J1
A
B
①
F
③
