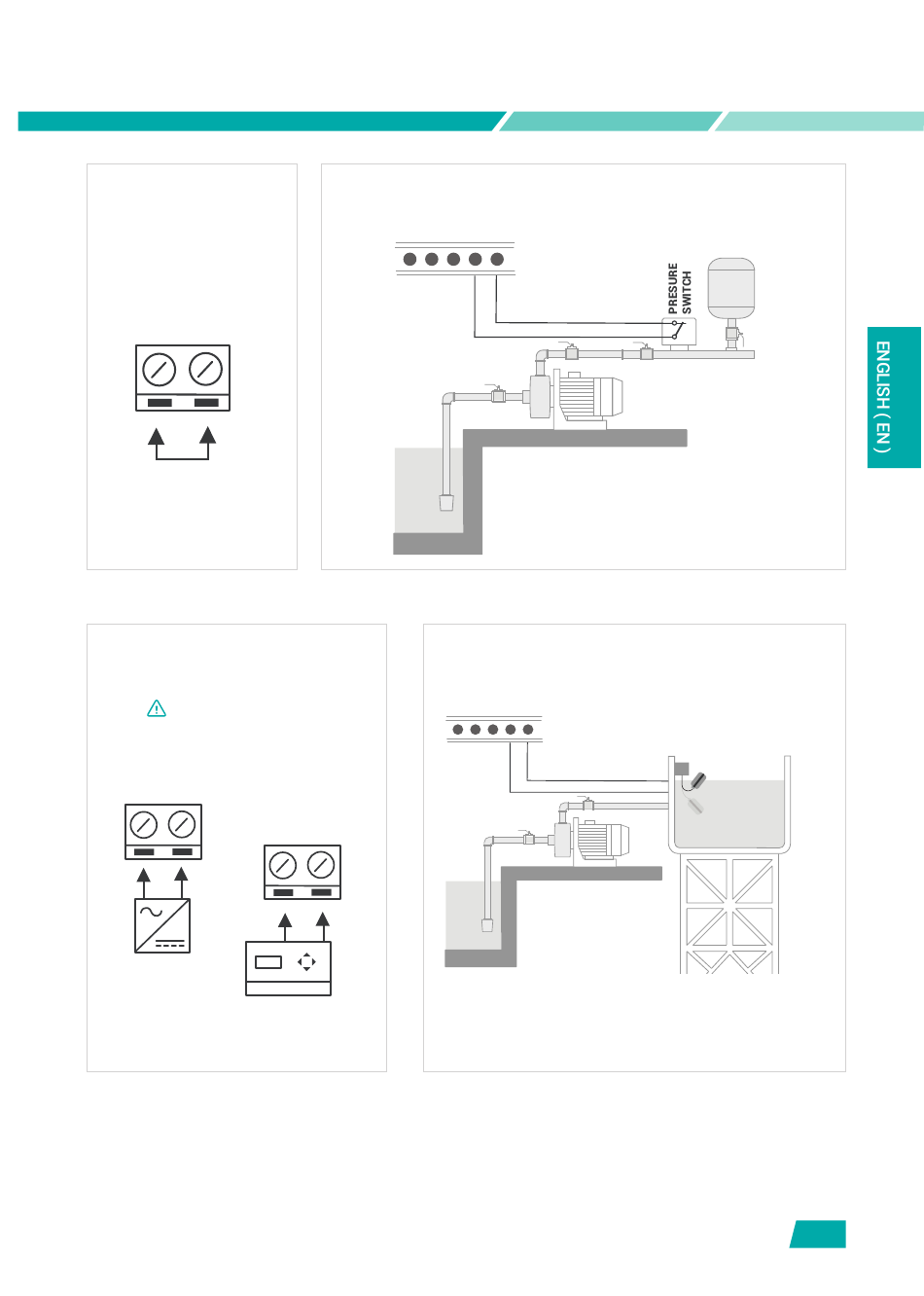

9. EXTERNAL CONTROL ON/OFF

●
Not used
Make a jump between
the terminals 3-4.
3 4
●
Powered external control
6...24 VAC/DC max.
EXT.
ON/OFF
3 4
3 4
EXT.
ON/OFF
3 4
3 4
Example: 24 V irrigation
programmer.
●
Pressure switch (dry contact)
PE 1 2
EXT.
ON/OFF
3 4
3 4
3 4
3 4
3 4
●
Float switch (dry contact)
PE 1 2 3 4
OFF
