Introduction
This passive high-impedance 10:1 oscilloscope probe is suitable for
most oscilloscopes with a 1 MΩ input impedance.

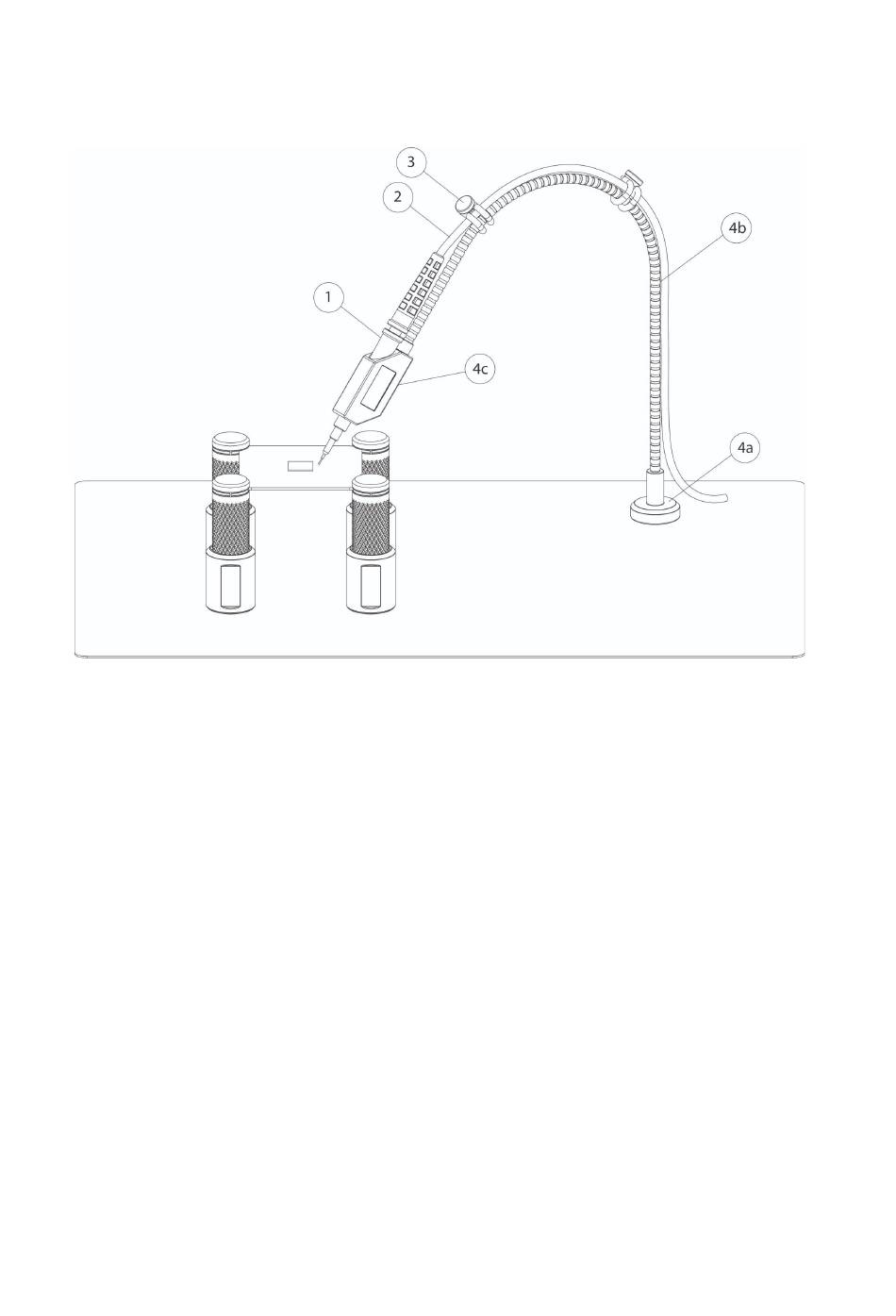

Overview
1. Probe
2. Probe cable
3. Color coded cable holder
4. Probe holder
a. Probe base (with magnet)
b. Flexible arm
c. Probe arm grip

Getting started

1. Insert the probe inside the probe holder cavity
2. Snap on the color coded cable holders on the flexible arm and the
probe cable to hold and identify your oscilloscope channel
3. Choose GND option
4. Connect the probe cable BNC connector (not shown in picture) to
your instrument (oscilloscope)
5. Calibrate your probe according to the Frequency compensation
chapter.
