Operation

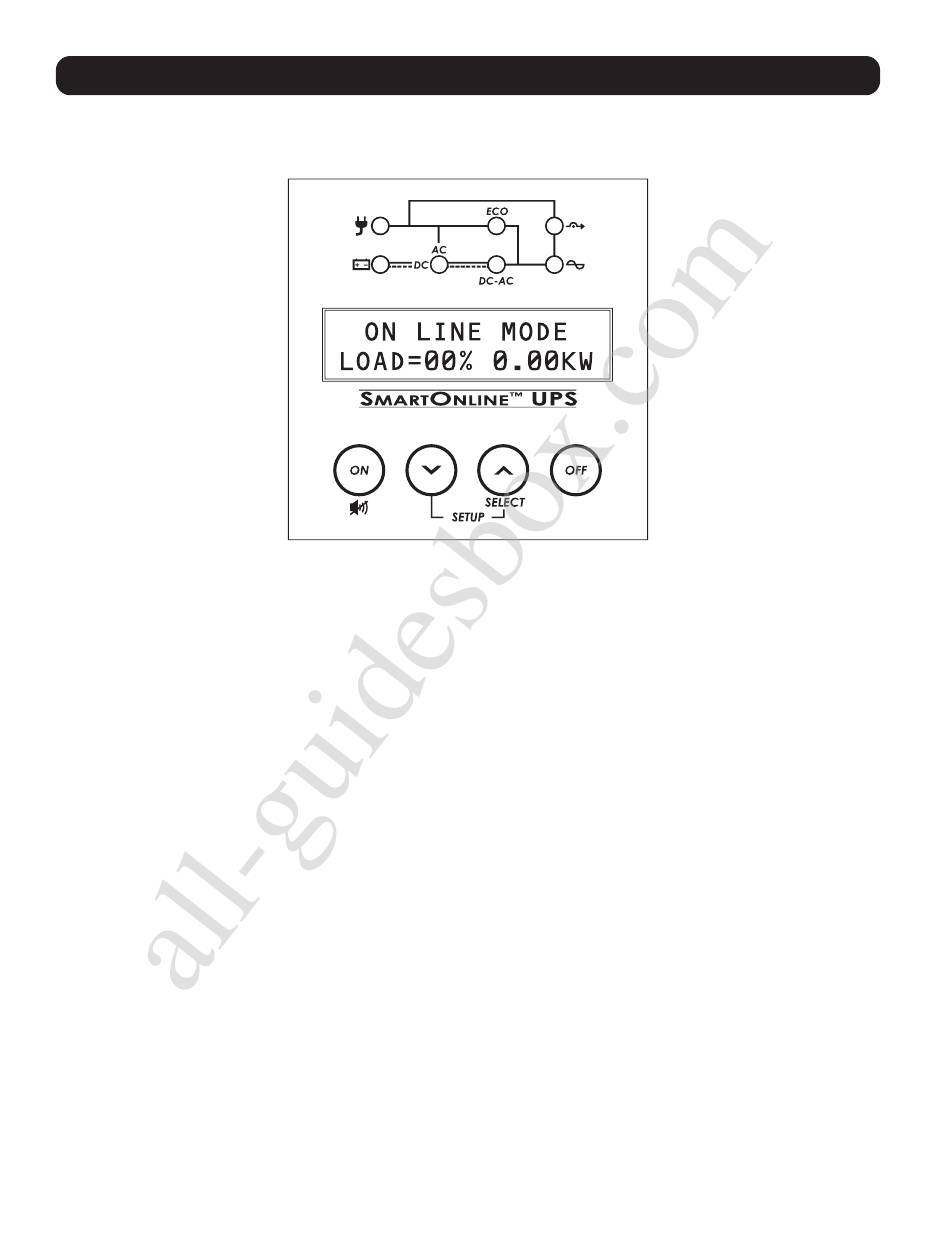

LCD Informational Screens
This UPS is configured with a two-row, 32-character LCD screen to offer detailed UPS status, control and configuration options.
In most display modes, the upper row of text continuously identifies the current operational mode. Supported modes are BYPASS, ON
LINE, ON BATTERY, ECONOMY, FREQ (FREQUENCY) CONVERTER & STANDBY (See OPERATIONAL MODES section for more information on
each operating mode).
The lower row of text identifies particular measurement values. To scroll between the seven available measurement screens, press the
SELECT button repeatedly. The display can be "parked" on a particular value for full-time display while the UPS is running in that mode.
All nine data screens are available to be monitored from each of the six operating modes:
Operating Modes (Top Line)
1. ON LINE MODE
2. ON BATTERY MODE
3. ECONOMY MODE
4. STANDBY MODE
5. BYPASS MODE
6. FREQ CONVERTER
All manuals and user guides at all-guidesbox.com
Data Screens (Second Line)
1. LOAD PERCENTAGE & LOAD KILOWATTS
2. OUTPUT LOAD PERCENTAGE & LOAD (KVA)
3. OUTPUT LOAD POWER FACTOR
4. INPUT VOLTAGE & FREQUENCY
5. OUTPUT VOLTAGE & FREQUENCY
6. BATTERY VOLTAGE & CAPACITY PERCENTAGE
7. ESTIMATED BATTERY RUNTIME (MINUTES)
8. REMAINING WATTS/CAPACITY
9. DEMAND ENERGY FOR LAST HOUR (KILOWATT/HOURS)
