5. CONNECTION

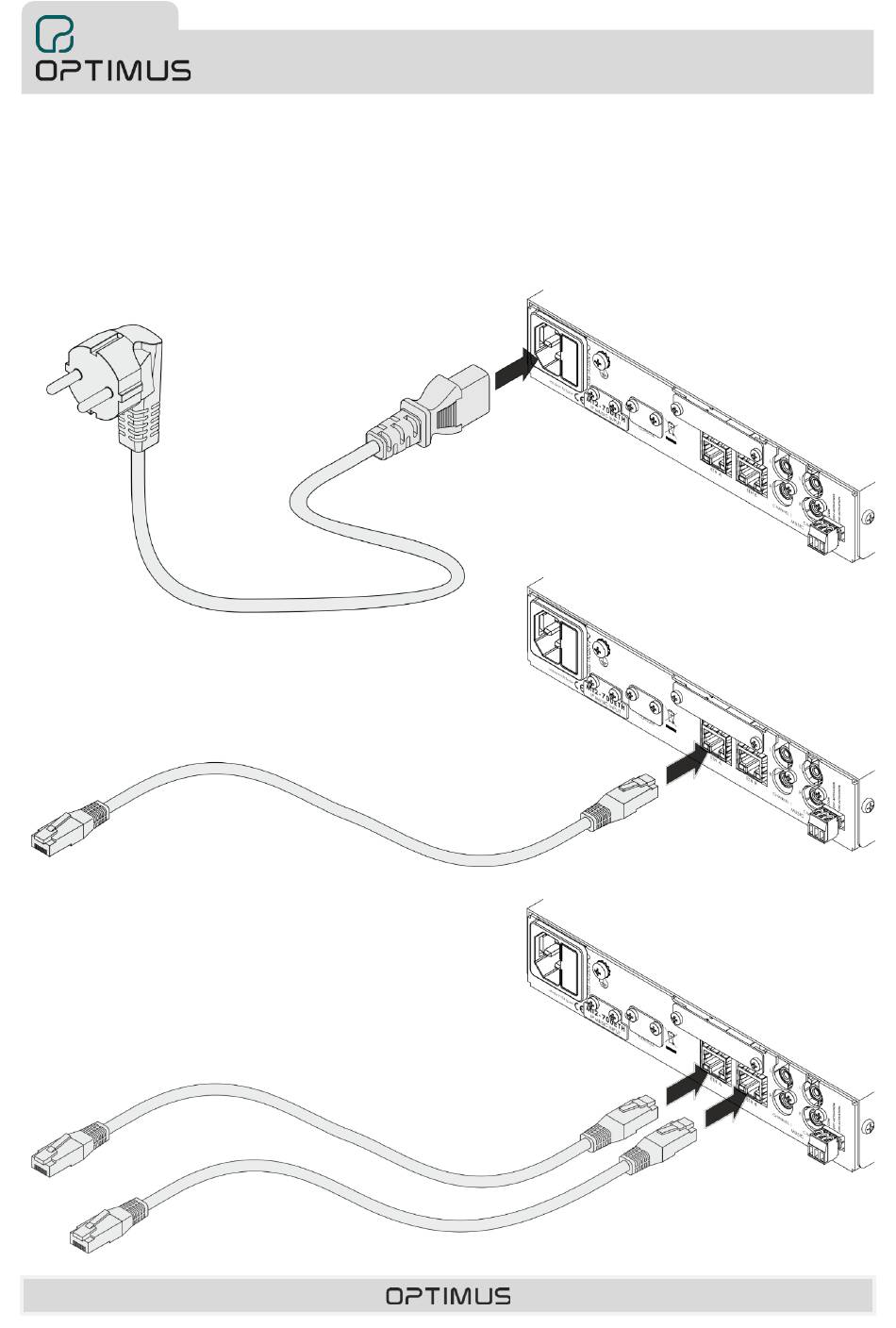

5.1. Power supply

The device has a 100-240Vac 50/60 Hz power supply input that allows the
connection to the mains by means of the supplied cable (CEE7 Male / C13
Female, 1.8m).

5.2. IP Connection

Use the ETH A port (RJ45 connector) and Cat 5e FTP cable to connect the
device to the IP network.
Connection to
Ethernet switch
5.3. IP Connection in installations with redundant
Ethernet network
In installations with network redundancy, use the ETH A and ETH B ports
(RJ45 connectors).
Ethernet connection
to switch 1
Ethernet connection
MI2-700ETH 5.2.002 version
MI2-700ETH
to switch 2
Converter of 2 analogue audio signals
to 2 channels of streaming via IP
Figure 3
Figure 4
Figure 5
