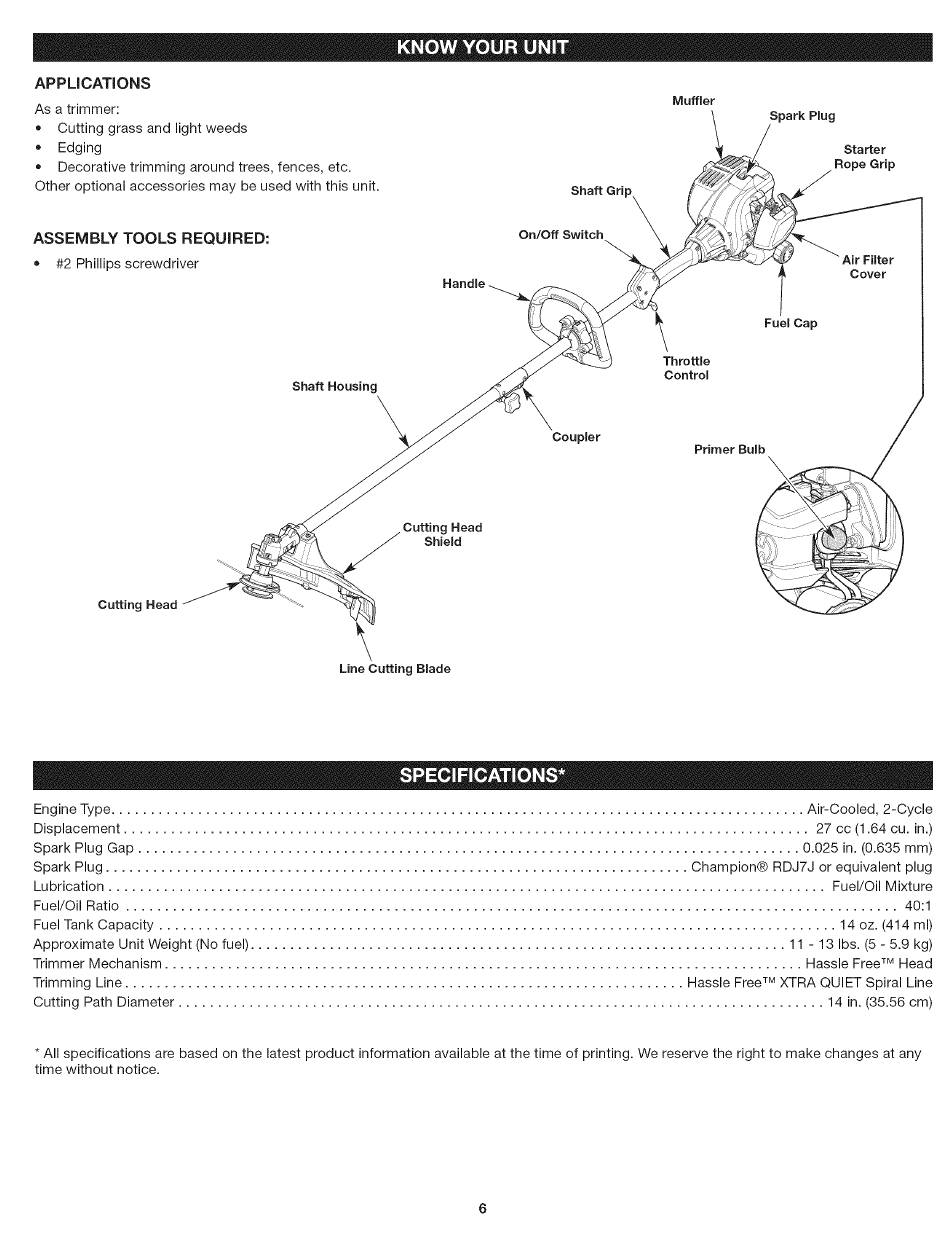

APPLiCATiONS
Asatrimmer:
• Cutting g rass andlight w eeds
Edging
Decorative trimming around t rees, fences, etc.
Other o ptional accessories may beused withthisunit.
Shaft Grip
Muffler
Spark Plug
Starter
ASSEMBLY TOOLS REQUIRED:
= #2 Phillips screwdriver
On/Off Switch
Shaft Housing
Throttle
Control
Fuel Cap
Coupler
Primer Bulb
Cutting Head
Shield
Cutting Head
\
Line Cutting Blade
Engine Type ........................................................................................ Air-Cooled, 2-Cycle
Displacement ....................................................................................... 27 cc (1.64 cu. in.)
Spark Plug Gap .................................................................................... 0.025 in. (0.635 mm)
Spark Plug .......................................................................... Champion® RDJ7J or equivalent plug
Lubrication ........................................................................................... Fuel/Oil Mixture
Fuel/Oil Ratio .................................................................................................. 40:1
Fuel Tank Capacity ...................................................................................... 14 oz. (414 ml)
Approximate Unit Weight (No fuel) .................................................................... 11 - 13 Ibs. (5 - 5.9 kg)
Trimmer Mechanism ................................................................................. Hassle Free
TM
Head
Trimming Line ....................................................................... Hassle Free
TM
XTRA QUIET Spiral Line
Cutting Path Diameter .................................................................................. 14 in. (35.56 cm)
* All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any
time without notice.
