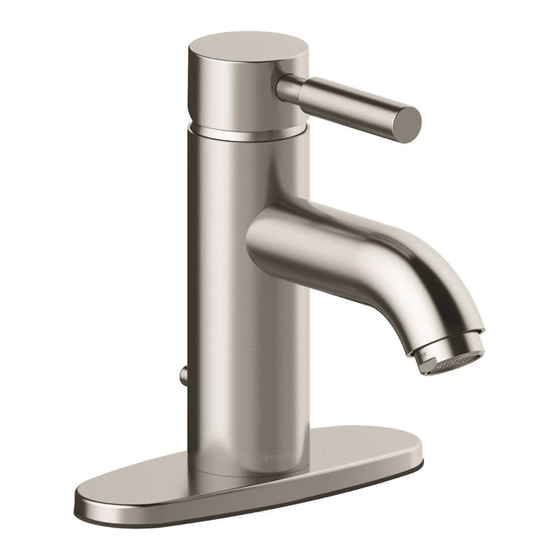

Westwind™ Single Handle Bath Faucet,
With Quick Install Pop Up, Brushed Nickel, 1.2 GPM
Mezcladora Westwind™ para baño, de un solo maneral,
con sistema emergente de instalación rápida,
níquel cepillado, 1.2 GPM
NSF/ANSI/CAN 61: Q ≤ 1
Exclusively Distributed By:
HD Supply
Atlanta, GA 30339
© 2022
With Flange
Con Brida
With Deckplate
Con Placa De Cubierta
1
Part #: 211820
USN #: 320467928
Mfg #: 67709W-8004
To Reorder:
1-800-431-3000
hdsupplysolutions.com
Publicidad
Manuales relacionados para Seasons Westwind 67709W-8004
Resumen de contenidos para Seasons Westwind 67709W-8004
- Página 1 Part #: 211820 USN #: 320467928 Mfg #: 67709W-8004 Westwind™ Single Handle Bath Faucet, With Quick Install Pop Up, Brushed Nickel, 1.2 GPM Mezcladora Westwind™ para baño, de un solo maneral, con sistema emergente de instalación rápida, níquel cepillado, 1.2 GPM With Flange With Deckplate Con Brida...
- Página 2 Preparation / Preparación Before beginning the assembly of this product, make sure all parts are present. Compare parts with the package contents list. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Antes de comenzar el ensamblaje del producto, asegúrese de tener todas las piezas.
- Página 3 Assembly Instructions / Instrucciones de Ensamblaje Shut off water supply at angle stop. Remove old faucet. Clean sink With Flange (optional): surface in preparation for new faucet. Turn the faucet upside down. Before installation, ensure that the flange (B) is placed on the bottom Insert the lift rod knob (1) into the slot and rotate.
- Página 4 Assembly Instructions / Instrucciones de Ensamblaje Preparing the pop-up assembly： Installing the drain body： Remove the pop-up stopper (H), drain flange (I) and washer (J) from Insert the washer (J) into the drain flange (I) and place the drain the drain body (N). flange (I) into the drain hole of the sink.
- Página 5 Assembly Instructions / Instrucciones De Ensamblaje Hole Orificio Fig. 2 Fig. 1 Adjusting the length of lift rod strap (optional)： Attaching the horizontal rod and strap： If the pop up lift rod strap (Q) is interfering with your installation, as Press the horizontal rod (P) down to ensure the stopper (H) is in the shown in Fig.
- Página 6 Assembly Instructions / Instrucciones de Ensamblaje After the faucet installation is complete, store the spanner key (G) for use conveniently next time. Place the slot (1) of the spanner key (G) onto the hose. Then choose the appropriate hole of the spanner key (G) to place the hex wrench.
- Página 7 Replacement Parts / Repuestos Part Description Part # USN # Pieza Descripción Pieza # USN # 183945 Handle Assembly / Ensamblaje de la Llave Cap / Tapa 183916 183917 Bonnet Nut / Tuerca del Bonete Cartridge & Screw / Cartucho y Tornillo 183953 322096669 Aerator / Aireador...
