MikroTik CRS326-24S+2Q+RM Guía Rápida

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.10 or the latest version to ensure compliance with local authority regulations!
It is the end users responsibility to follow local country regulations. All MikroTik devices must be professionally installed

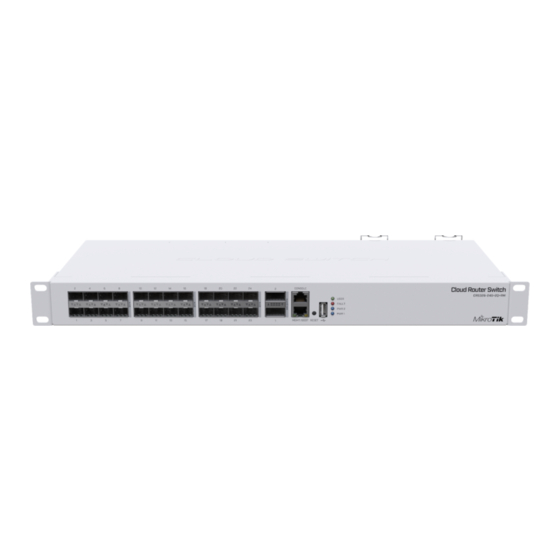

This Quick Guide covers the model: CRS326-24S+2Q+RM.
This is Network Device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, Full EU Declaration of Conformity, brochures, and more info about products
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Configuration manual for software in your language with additional information can be found
MikroTik devices are for professional use. If you do not have qualifications please seek a
First steps:
For models CRS, connect with your PC to any Ethernet port;
Connect the device to a power source;
Set your IP for PC to 192.168.88.2/24;
Use Web browser or WinBox to connect to the default IP address of 192.168.88.1, with the username:
user and wireless passwords on the sticker);
In case IP is not available then use WinBox and connect with MAC address;
Update the device by clicking the (Check_for_updates) button to the latest RouterOS software for this to work the device needs to have an active Internet
connection;
To manually update the device without public IP, go to our download page
Choose your architecture based on your device model under (System/Resources) and download the latest packages from a stable channel to your PC;
Open WinBox and upload packages in the (Files) menu;
Reboot the device;
Set up your password to secure the device.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
Electric shock hazard. This equipment is to be serviced by trained personnel only
Manufacturer: Mikrotikls SIA, Unijas 2, Riga, Latvia, LV1039.
BG - Български. Бързо ръководство
https://mt.lv/um for the full up to date user manual. Or scan the QR code with your mobile phone.
at https://mikrotik.com/products
at https://mt.lv/help
consultant https://mikrotik.com/consultants
admin
https://mikrotik.com/download ;
and no password (or, for some models, check
