Factory reset
This button allows you to restore the device to factory settings by pressing it continuously for
more than 10 seconds.
Reset of the device
Allows you to reset the device without removing any previously set configuration parameters.

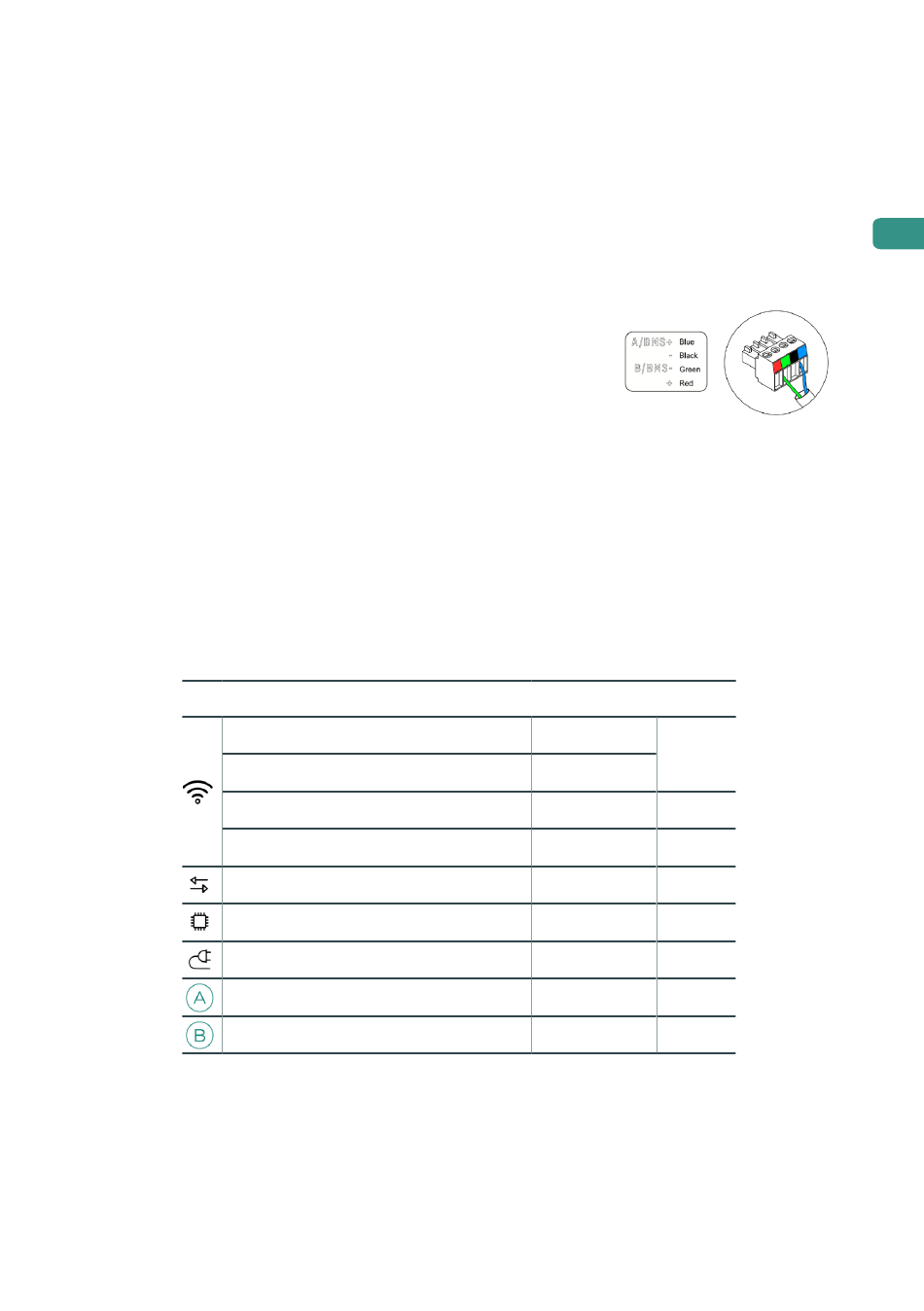

RS-485 port
RS485 port for connecting the AirQ Box or AirQ Sensor
accessories, or for establishing Modbus RTU, BACnet MS/TP
or Lutron communication with the device.
Connection to the indoor unit
This terminal allows the device to communicate with the indoor AC unit or the thermostat via
the connection cable.
Note: both the shape of the terminal on the Aidoo Pro device and the shape of the cable may
vary depending on the compatible manufacturer.
Diagnostic LEDs
Transmission of data to the indoor unit
Reception of data from the indoor unit
Digital input
Configurable voltage free input to switch the unit on/off.
Note: it is recommended that the wiring of the digital inputs be routed through a separate
conduit.
Meaning
Connecting to a Wi-Fi network
Connected to a Wi-Fi network
Connected to the server
Not configured
Cloud Communications
Microprocessor activity
Power supply
Blinking
Green
Steady
Steady Blue
Off -
Blinking
Red
Blinking Green
Steady Red
Blinking Red
Blinking Green
EN
