INPUT CONNECTIONS AND AUDIO DAISY CHAIN

According to the specific configuration (mono or stereo), one or two cables (not supplied) are required at
input and at daisy chain. XLR connectors are required.
CASE A (MONO connection) between subwoofer and

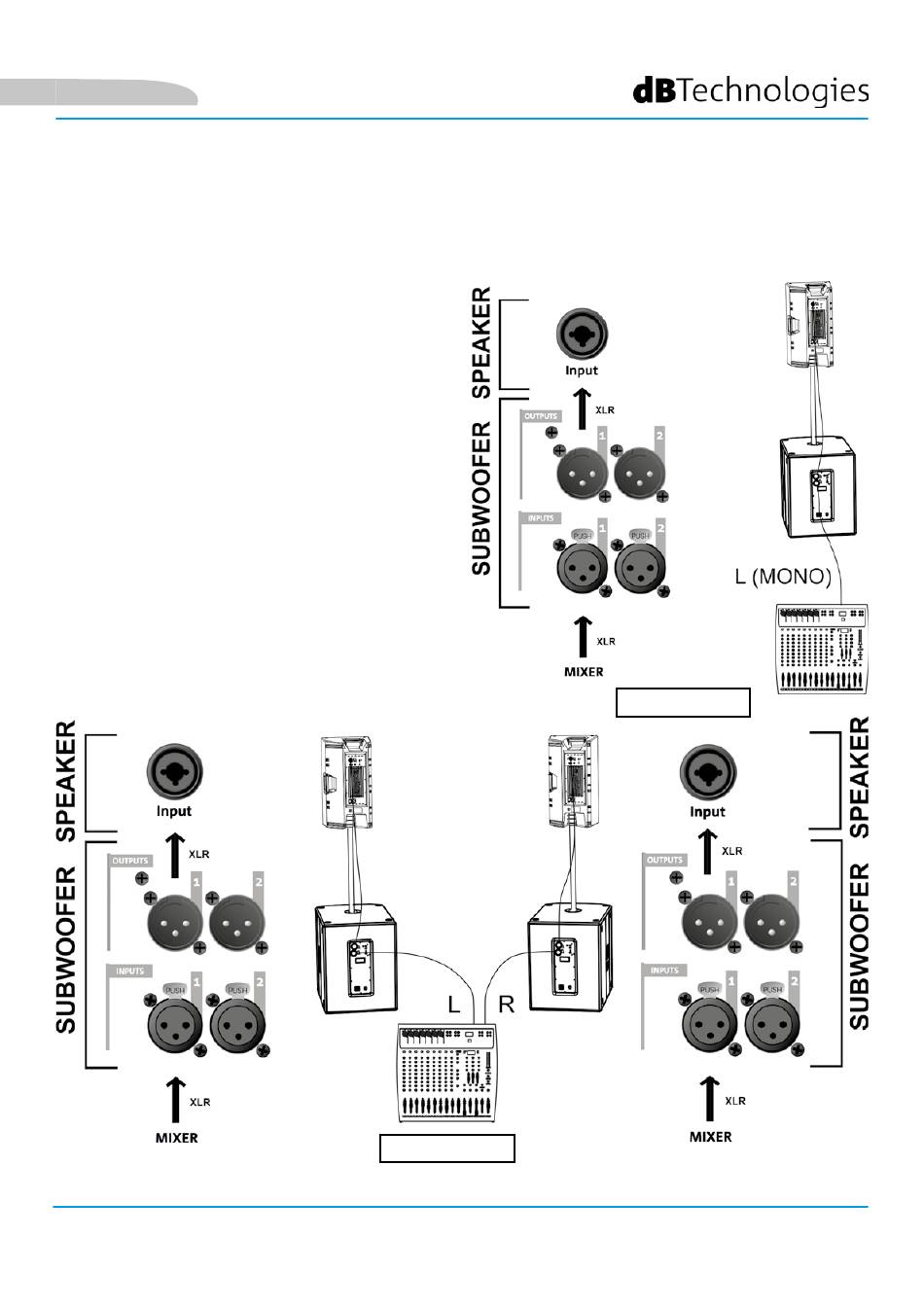

speaker (examples: figure 1, figure 2):
In the event of a MONO connection between
subwoofer and speaker:
1. Connect mixer output to subwoofer INPUTS 1
connector
2. Connect subwoofer OUTPUTS 1 connector to
speaker input.
3. For each speaker, select the type of input
impedance on LINE.
4. For each channel in the configuration, set
subwoofer OUTPUTS MODE [4] to XOVER, in
order to daisy-chain a signal having a crossover
frequency of 120 Hz to the speaker.
