Safety hood assembly
Cutter guide
Depth
Dial
Carriage
shaft
Operating parts identification
Part no. Identification
024B-1 Carriage
025-3X Vise jaw assembly
025-8 Wing nut
045-23 Carriage shaft
P-X23MC P-X23MC cutter
814-00-51 Nylon brush
045-49 Cutter guide (stylus)
045-55A Adjusting screw
040-56 Key gauge
025-62A On/Off switch
025-82 Oil cup
045-86X Safety hood assembly
045-87 Safety shield
Key gauge
Vise jaw
assembly

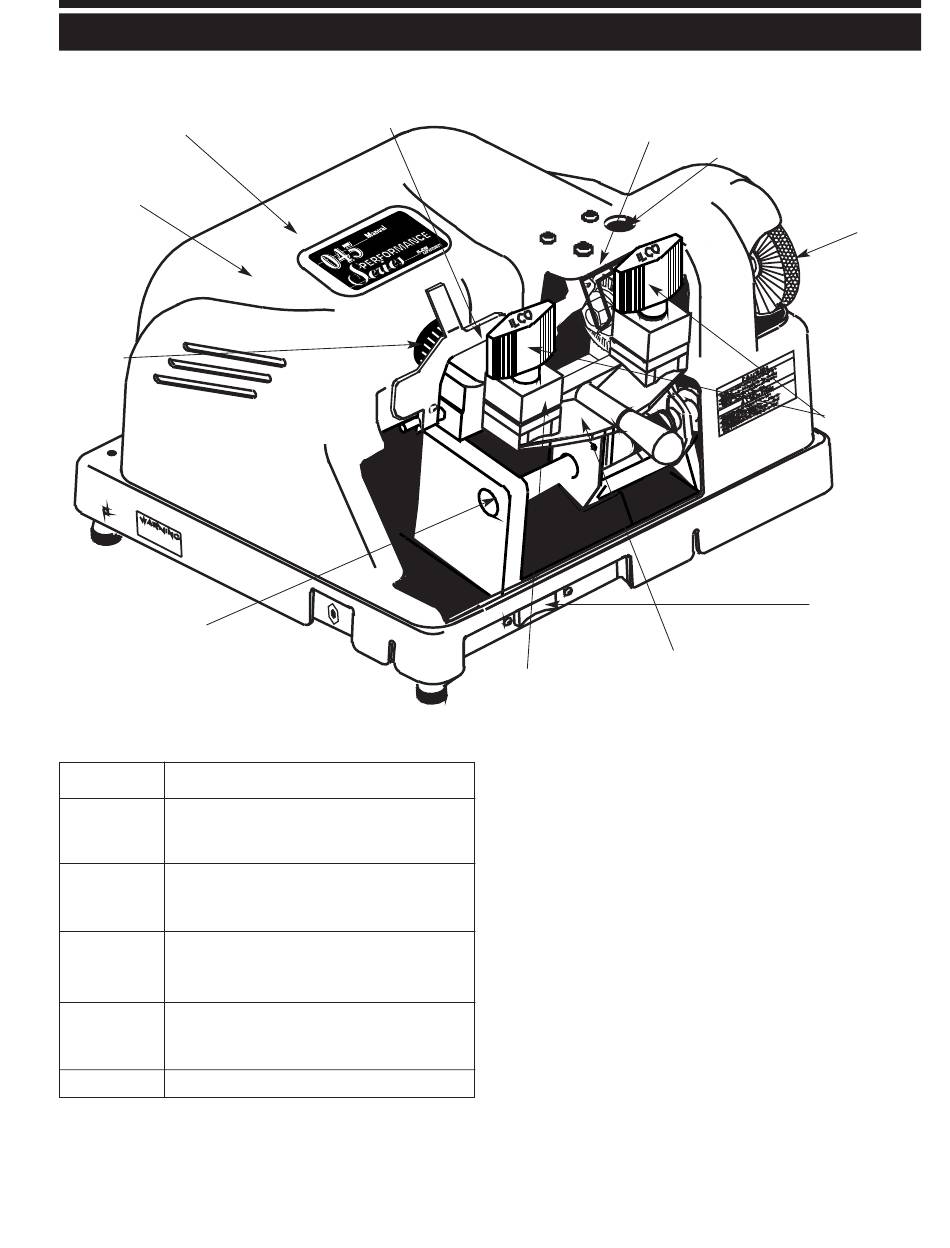

OPERATING PARTS
Safety shield
Oil cup
Carriage
Nylon
brush
Wing nut
On / Off
power switch
