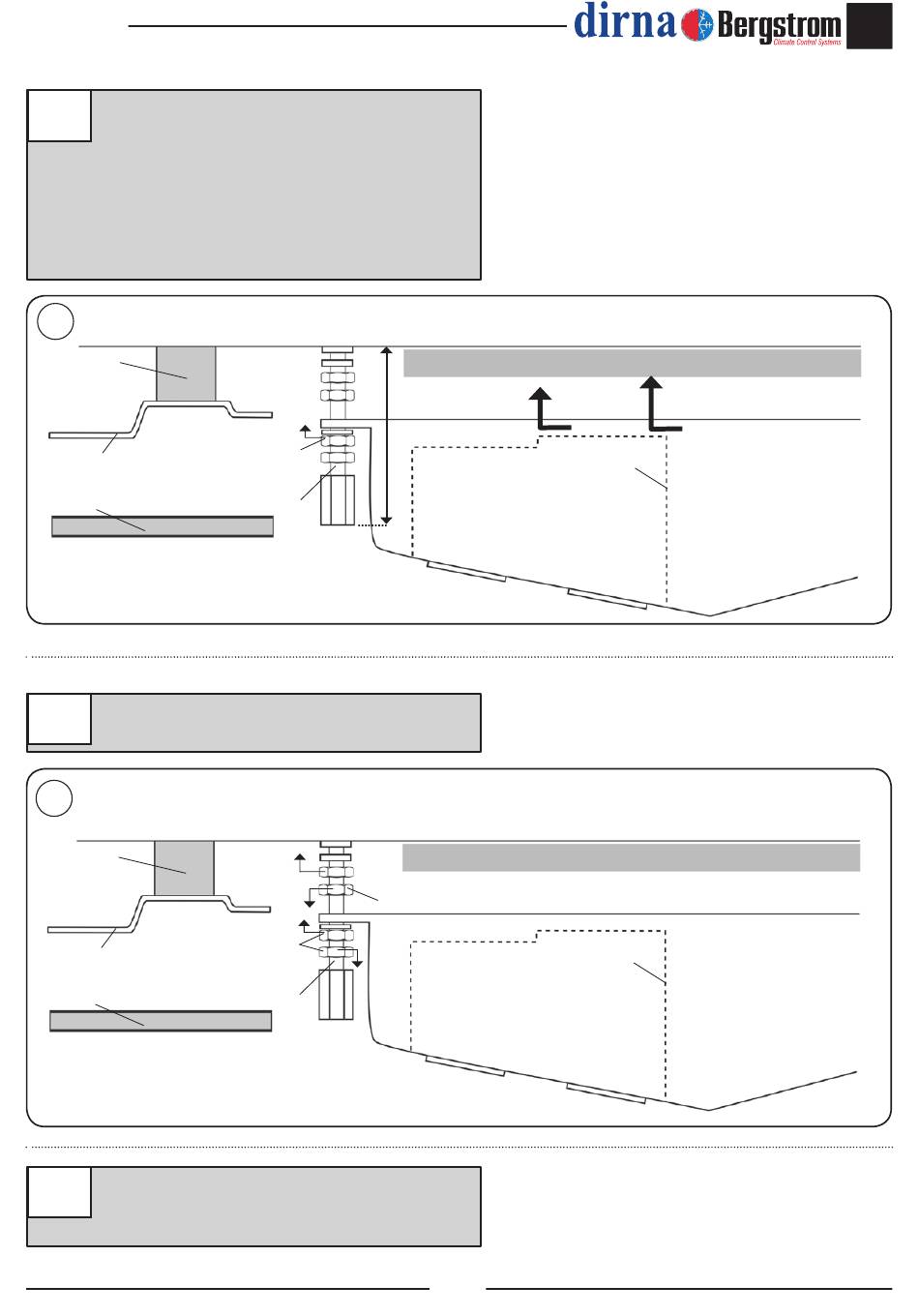

Position the interior air distribution panel
9
on the front studs with (1) M6 wide-rimmed
washer and (1) M6 nut on each stud. Tighten
the nuts until the duct units come up against
the unit's upper foam.
Important: The channellers must meet the
rubber to avoid air leaks.
9
EPDM
Seal
Cab roof
Upholstered
Tighten nut from point 6a until it meets with
10
the top part of the inner air distribution panel.
10
EPDM
Seal
Cab roof
Upholstered
Place the console and centre the equipment on
11
the most suitable place on the cab roof. Once
centred remove the console.
Bycool Base
M6 Nut
M6 Stud bolt
Bycool Base
M6 Nut (8a)
M6 Nut
M6 Stud bolt
(A)
Channellers
Channellers
25
Air conditioning for vehicles
Foam
Interior air distribution
panel
Foam
Interior air distribution
panel
