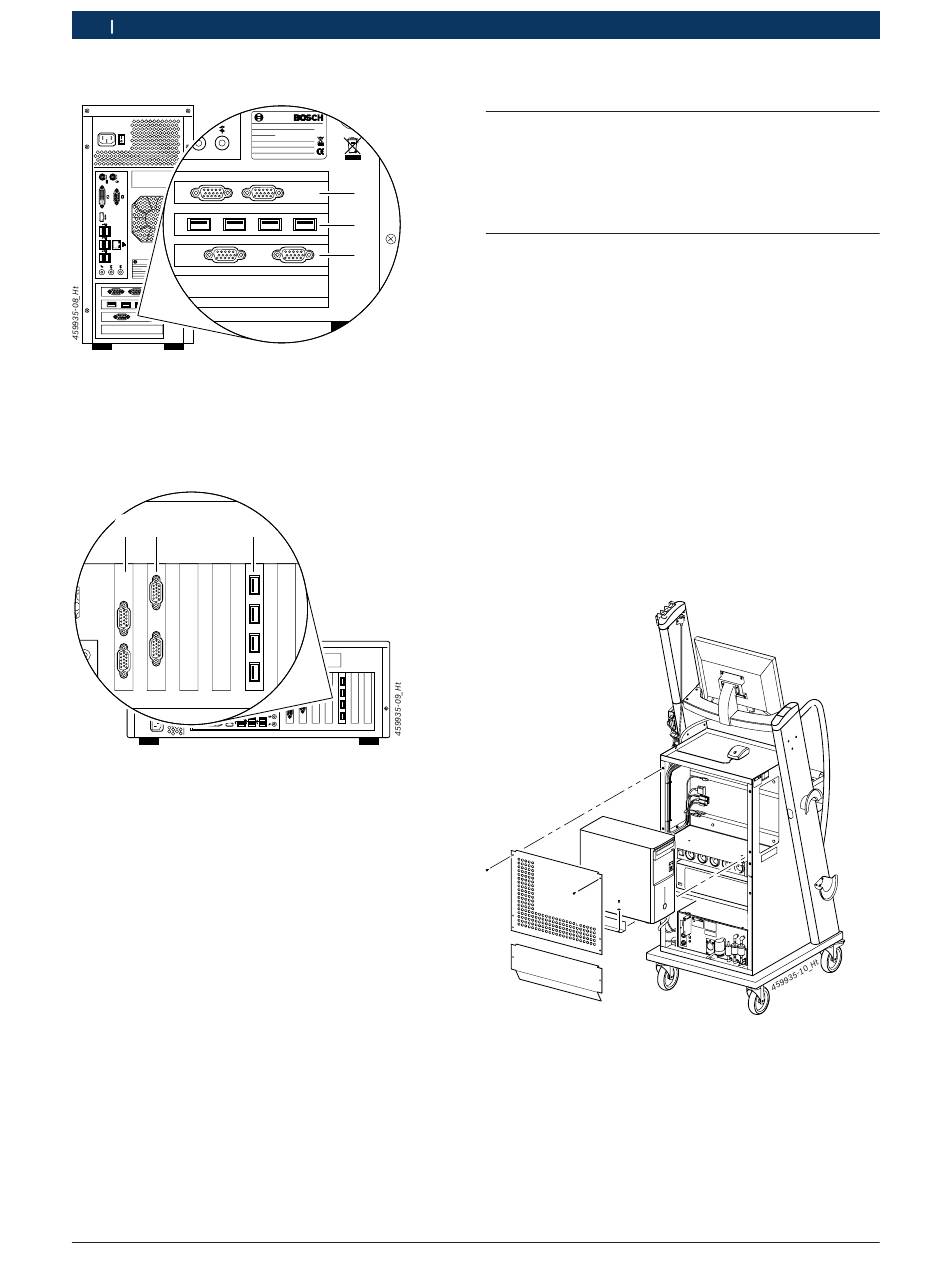

Fig. 9: Connections 1 687 023 654
1 Serial COM 1 / COM 3
2 USB (USB 2.0)
3 Serial COM 2 / COM 4
� ��� ��� ���
1 2 3
Fig. 10: Connections 1 687 023 655
1 Serial COM 1 / COM 3
2 Serial COM 2 / COM 4
3 USB (USB 2.0)
|
1 689 989 158 2012-10-12
4.
4.�
1. Unpack the PC.
2. Check the scope of delivery.
3. Dispose of the packaging materials in the proper
1
manner.
2
4.�
3
i
The PC is supplied already installed and connected
in most Robert Robert GmbH products. Proceed
as described below if a PC has to be installed on
commissioning or if an existing PC is to be replaced.
Otherwise this Section can be ignored.
1. Disconnect the PC from the power supply.
2. Remove the covers.
3. Disconnect the connecting cables from the old PC.
4. Remove the old PC.
5. Fit the new PC.
6. Connect the connecting cables to the new PC.
7. Fit the covers.
4.�.�
Fig. 11:

Commissioning

Unpacking

Installation and connection

Tower
Installation position of tower in trolley
