Connections; Assembly - MYPV AC THOR Instrucciones De Montaje

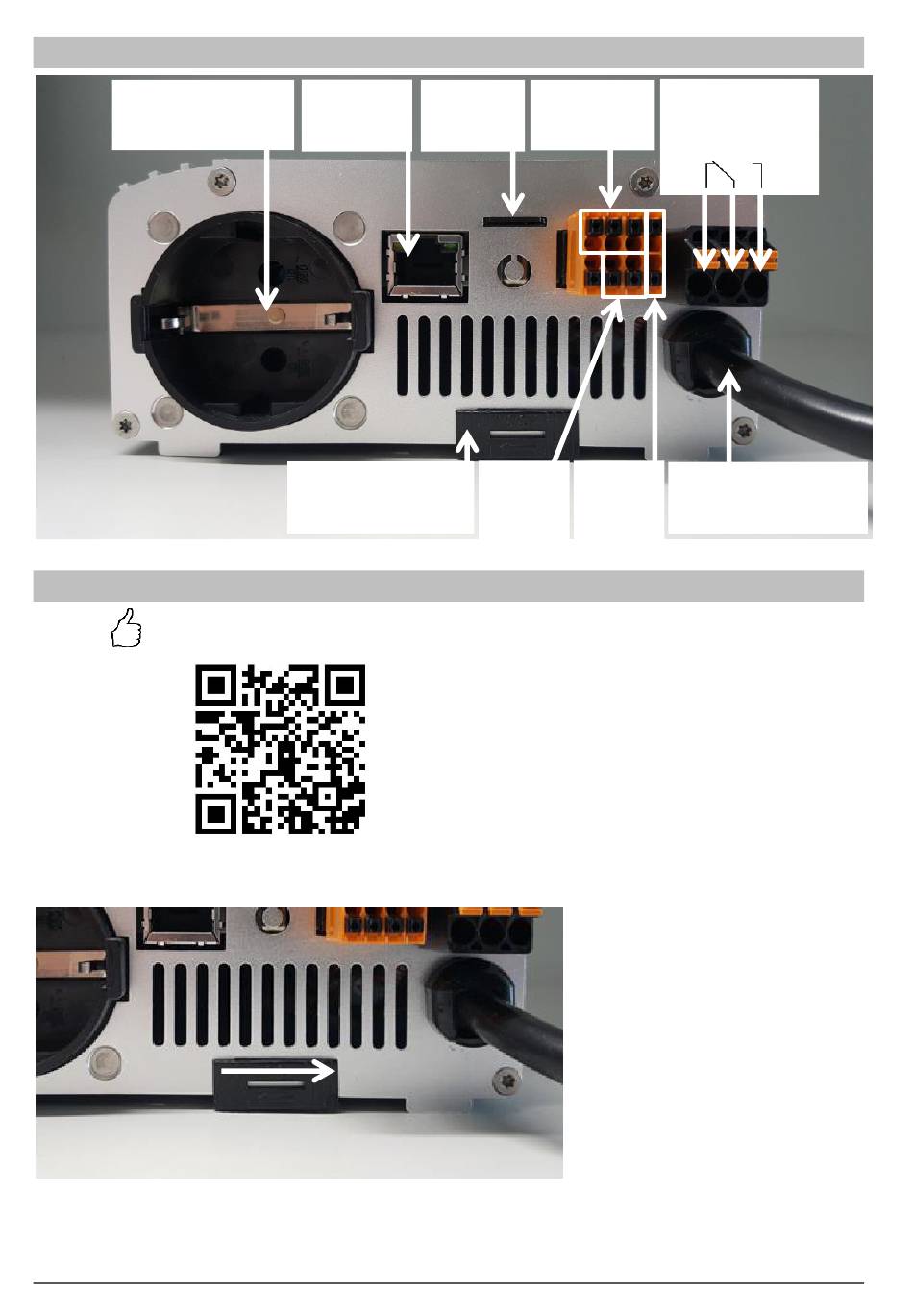

Connections

Load
0 – 3.000 W

Assembly

A brief video (German) to explain assembly will also be found online:
https://www.youtube.com/watch?v=WFHbayf5VDQ
Remove the wall bracket from the rear of the AC•THOR unit. To do this, slide the lock
underneath to the right.
Then fix the wall bracket to the wall with three screws. Three screws and three wall-plugs are
supplied. If the screws supplied are not suitable for the substrate, suitable screw must be
obtained.
AC•THOR ® Montageanleitung / Assembly Instructions, Version 191022
Ethernet
RJ45
Ausgang 0-230 VAC 3000 W max. Nur ohmsche Lasten anstecken!
Output 0-230 VAC 3000 W max. Connect only resistive loads!
Wall bracket
lock
SD Card 4 Temp.
Slot Sensors
PWM PWM
Signal Signal
Out IN
Relais
16A
NC W NO
230 VAC, 15 A max
47-53 Hz
Single-phase
mains connection
13
