Connecting two wire addressable Bus
The two wire addressable bus is used for user interface
devices and individually addressable smart LED drivers.
Each two wire module (SCMD4) will be pre-mounted on the
interior DIN rail per the order specifications and provide four
(4) two wire addressable buses. Each two wire addressable
bus supports up to 64 addresses per bus.
Use 14AWG cable for the two wire addressable bus and do
not exceed 300 meters (984ft). The two wire addressable
bus is polarity and topology free.
The two wire addressable bus provides 250mA per bus to
power addressable devices. The following table provides
information on devices that can connected to the two wire
addressable bus
Device type
Lighting driver or ballast
2 wire wallstation
2 wire relay
2 wire multi sensor
2 wire high bay sensor
2 wire 0-10V fixture control
Follow these rules when connecting the two wire
addressable bus:
• Torque = 0.4N-M (XXX in-lbs)
• Wire Sizes: 18-12AWG solid/stranded copper only
• Load to: 200mA maximum draw
• Acceptable for Class 1 or Class 2 wiring per NFPA 70
section 725.XX and CEC 16.1000 if wiring methods per
16.114 are used
Connecting to the lighting network
Medium and large iLumin Plus panels include the CR1-RJ PC
connection device. A PC can be connected to the iLumin
Plus panel using the SW2 cable kit plugging into the RJ port
on the CR1-RJ. If this iLumin Plus panel is connected to the
lighting network the PC will have access to all iLumin Plus
devices on the lighting network.
In a medium or large iLumin Plus panel one side of the CR1-
RJ will not have wires connected. This terminal is used to
connect to other iLumin Plus panels. The lighting network
is a daisy-chain and requires one in and one out connection.
The lighting network also requires a terminating jumper
installed at the two ends of the network
Lighting network wire should use Eaton LCCP or LCCNP
wire. (alternate: Belden 1502, 1502P)
Current Max per # of addr
draw bus
2mA 64 1
3.75mA 64 1
3.75mA 64 1
3.75mA 8 1
3.75mA 8 1
3.75mA 64 1

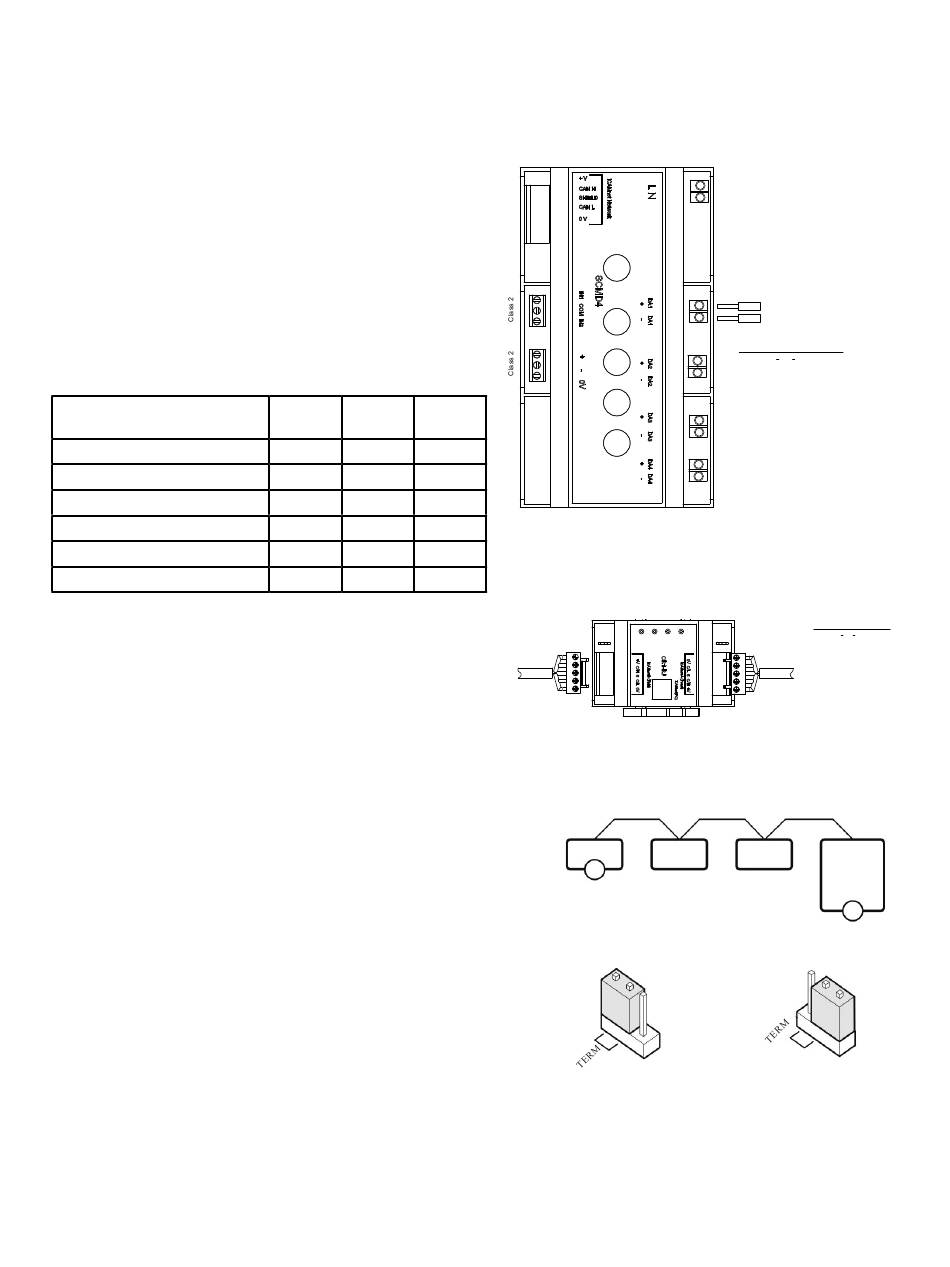

Two Wire Digital Bus Wiring Detail
Four: Two wire data buses
Lighting Network Wiring Detail
Class 2
Field installed five
wire network wire.
Run five wire
network wire to
additional iLumin
Plus panels
maintain daisy
chain
Device
Device
T
Termination
ON
www.eaton.com/lighting
iLumin Plus
Purple
Purple
Wiring Information:
1 5
Strip wire: " to "
2 8
Wire size: 18-14AWG
Solid/stranded copper only
Suitable for Class 1 and Class 2
wiring per NFPA 70
Load: 16VDC -225mA maximum
per channel
*Note: Load no more than 64 addressable
devices per bus. See device information for
bus power consumption.
Wiring Information:
1 5
Strip wire: " to "
2 8
Wire size: 18-22AWG
Class 2 Prewired
Solid/stranded copper only
five wire network
Class 2 wiring
wire.
Wire: Use Eaton catalog # LCCP or LCCNP
Alternate: Beldon 1502 or 1502P or equal
*Note: Lighting control network must be run as a daisy
chain, with termination jumper in place at two ends.
Device
iLumin
Plus
lighting
panel
T
Termination
OFF
7
