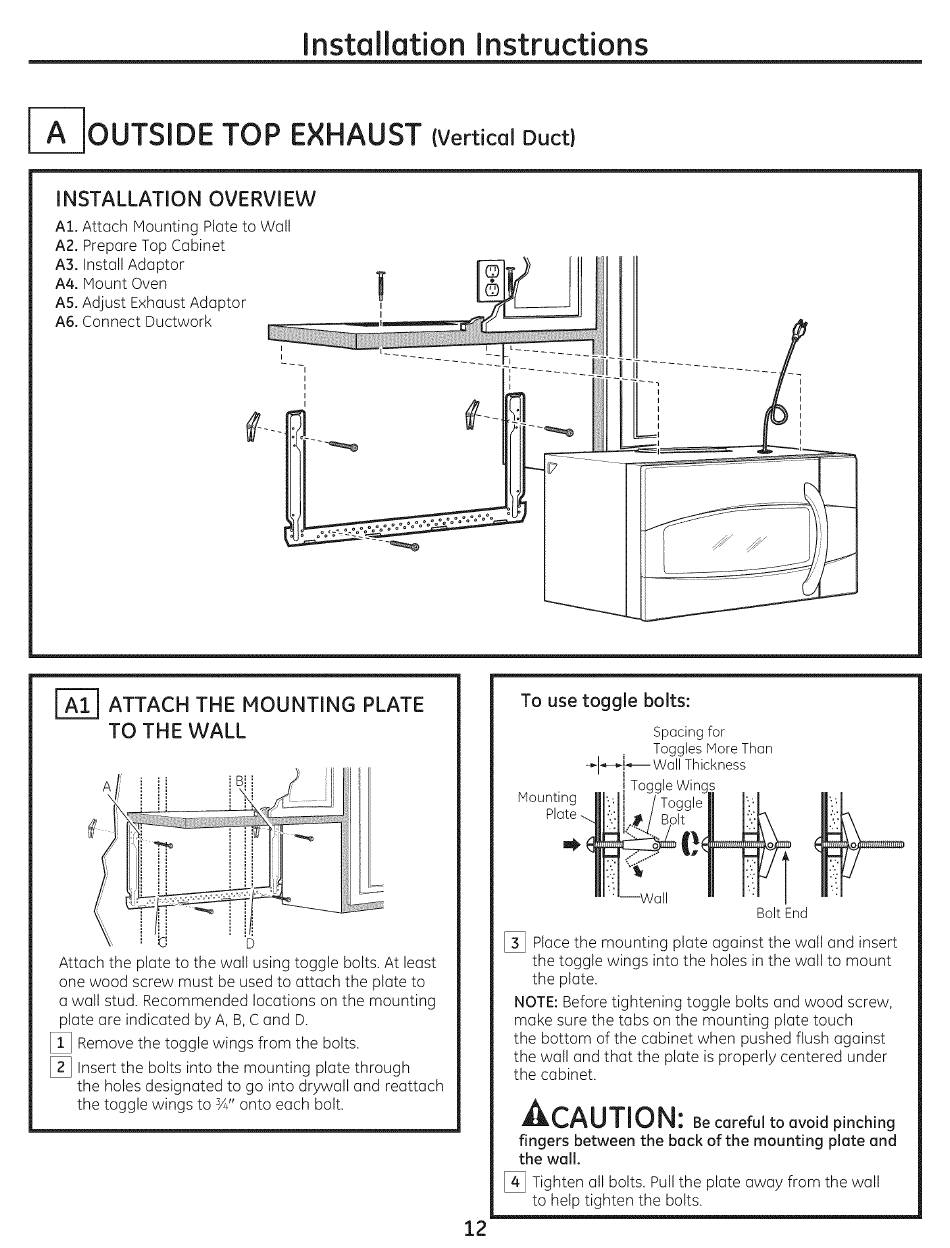

Installation Instructions
IA-IOUTSIDE TOP EXHAUST
(Vertical Duct)
INSTALLATION OVERVIEW
AI. Attach Mounting Plate to Well
A2. Prepare Top Cabinet
A3. Install Adaptor
A4. Mount Oven
AS. Adjust Exhaust Adaptor
A6. Connect Ductwork
ATTACH THE MOUNTING PLATE
TO THE WALL
i B
Attach the plate to the well using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud. Recommended locutions on the mounting
plate are indicated by A, B,C and D.
[_ Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into drywall end reattach
the toggle wings to ¾" onto each bolt.
12
To use toggle bolts:
Mounting
Spacing for
Toggles More Then
"_l_,-k_-- Wall Thickness
i Toggle Wing_
Bolt End
[_ Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
LIILI_,I"_UIIIIJI_I: Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
[_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
