Installation Instructions

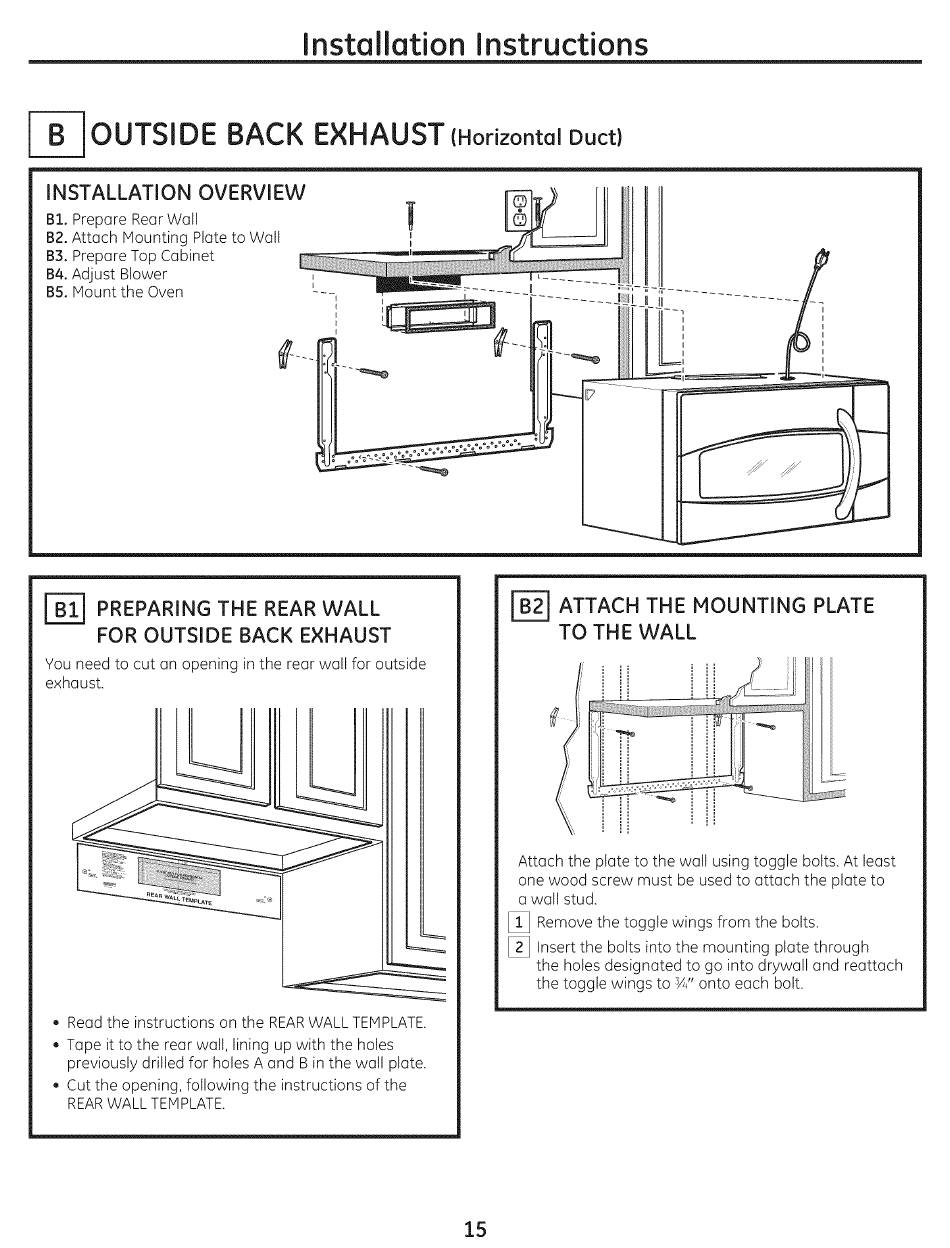

_--B-JOUTSIDE BACK EXHAUST
(Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to Wall
.L
B3° Prepare Top Cabinet
B4. Adjust Blower ,
12
BS. Mount the Oven --- _i_
J_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
, Read the instructions on the REARWALL TEMPLATE.
, Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
, Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
FB_ ATTACH THE MOUNTING PLATE
TO THE WALL
!i
,, i . ..... 3'!! i
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
[_ Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to sA" onto each bolt.
15
