3M™ MicroTouch™ Display M1700SS User Guide
3.74" (95 mm)
Front Edge of
Base
Document #19-268

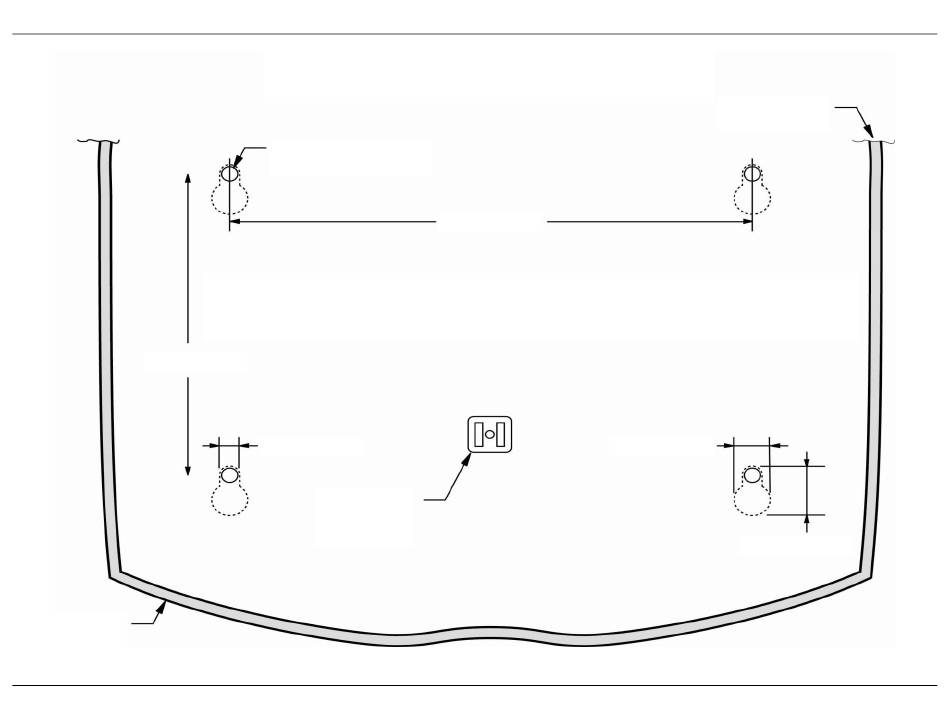

M170055 Base Plate Mounting Template
3M Touch Systems Proprietary Information
Drill 4 Mounting Holes
0.178" (4.5 mm) Dia.
Place this template on mounting surface and drill four holes as shown for mounting screws.
The screw heads must be smaller than 0.39" (10 mm) and larger than 0.21" (5.5 mm).
Adjust height of screw heads to securely lock monitor in place. This height is about 0.178" (4.5 mm).
0.21" (5.5 mm)
Locking
Mechanism
Receptacle
(Drawn actual size)
5.71" (145 mm)
Rev AN
Rear Edge of Base
Not Shown
0.39" (10 mm)
0.70" (17.8 mm)
