Dri-Eaz F413-230V EU El Manual Del Propietario

6
®

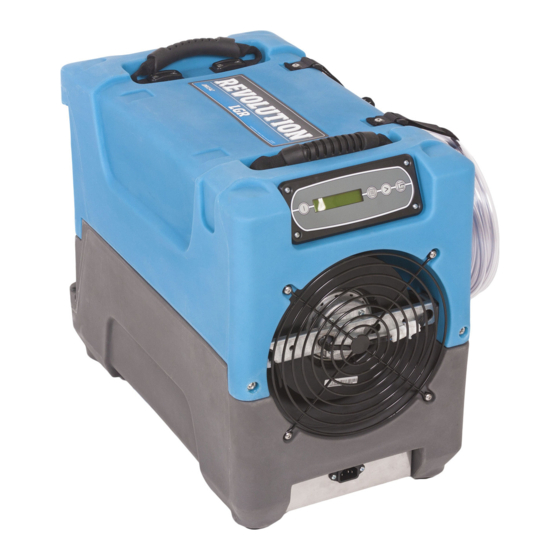

The Dri-Eaz Revolution LGR Dehumidifier reduces humidity in enclosed environments by removing wa-
ter vapor from the air. The Revolution is ideal for water damage restoration, structural drying, construc-
tion, and many other applications requiring temporary, high-performance dehumidification.
WARNING
Read and understand manual before operating.
WARNING! Do not alter or modify your Revolution in
any way. Use only replacement parts authorized by
Dri-Eaz Products, Inc. Modifications or use of unap-
proved parts could create a hazard and will void
your warranty. Contact your authorized Dri-Eaz dis-
tributor for assistance.
WARNING! Electric shock hazard, rotating fan, hot
surface hazards. Unplug unit before opening cover
for cleaning or servicing.
WARNING! Unit must be grounded.
• Keep motor and wiring dry. Keep out of standing wa-
ter and do not install in area likely to be subject to
water intrusion. Do not expose to rain, water or
snow.
• Insert three-prong plug on power cord into a match-
ing electrically grounded outlet. Do not remove or
disable grounding/earth prong from plug.
• Do not use an extension cord.
• To reduce the risk of fire or electric shock, do not
use this unit with any solid-state speed control de-
vice.
FIRE HAZARD
• Keep away from open flames and heat sources.
• Do not use or store where vapors from gasoline, sol-
vents, thinners or other flammable materials may be
present.
07-01899B F413-230V EUUK 2013-12
Warranty 07-00427 DoC 07-00289
Owner's Manual
Revolution LGR Dehumidifier
Model F413-230V EU/UK
DRI-EAZ PRODUCTS, LTD.
22 Plover Close, Interchange Park, Newport Pagnell, MK16 9PS
Tel: +44 (0)1908-611-211 Fax: +44 (0)1908-611-363 www.dri-eaz.co.uk
Patents: http://www.LBpatents.com
O R I G I N A L I N S T R U C T I O N S
WARNING! Unplug unit before cleaning or servicing.
• Turn off unit and unplug before lifting or moving.
• Handle the unit carefully. Always operate the unit on
a stable, level surface. Do not drop, throw, or place
where it could fall. Rough treatment can damage the
unit, and may create a hazardous condition or void
the warranty.
• Inspect the power cord before use. If cord is dam-
aged, do not use. Always grasp the plug (not the
cord) to unplug.
• The unit must be operated on a 230V/50 Hz circuit
protected by a Ground Fault Circuit Interrupter
(GFCI) device.
INTRODUCTION
The Revolution Dehumidifier reduces humidity in en-
closed structural environments by removing water vapor
from the air. With proper use, the Revolution can help to
dry out damp structural materials, insulation, and con-
tents, and maintain a healthy level of humidity. Using the
Revolution may also prevent secondary damage caused
by high humidity.
How the Revolution works
The Revolution refrigerant dehumidifier uses a fan to
draw moist air in and condenses it into water that col-
lects in a tray and is automatically pumped out through a
drain hose. The unit can be set to operate continuously
or the user may select Humidistat Mode. In Humidistat
Mode, the Revolution will turn on and off automatically to
maintain the inlet humidity level the user has selected.
Features:
• Industrial-quality dehumidifier removes up to 63 liters
of water per day.
• Automatic humidistat to set and maintain desired
humidity level.
• Recessed feet indents ensure secure stacking of up
to three Revolution units for storage and transport.
1 Dri-Eaz Products, Ltd.
