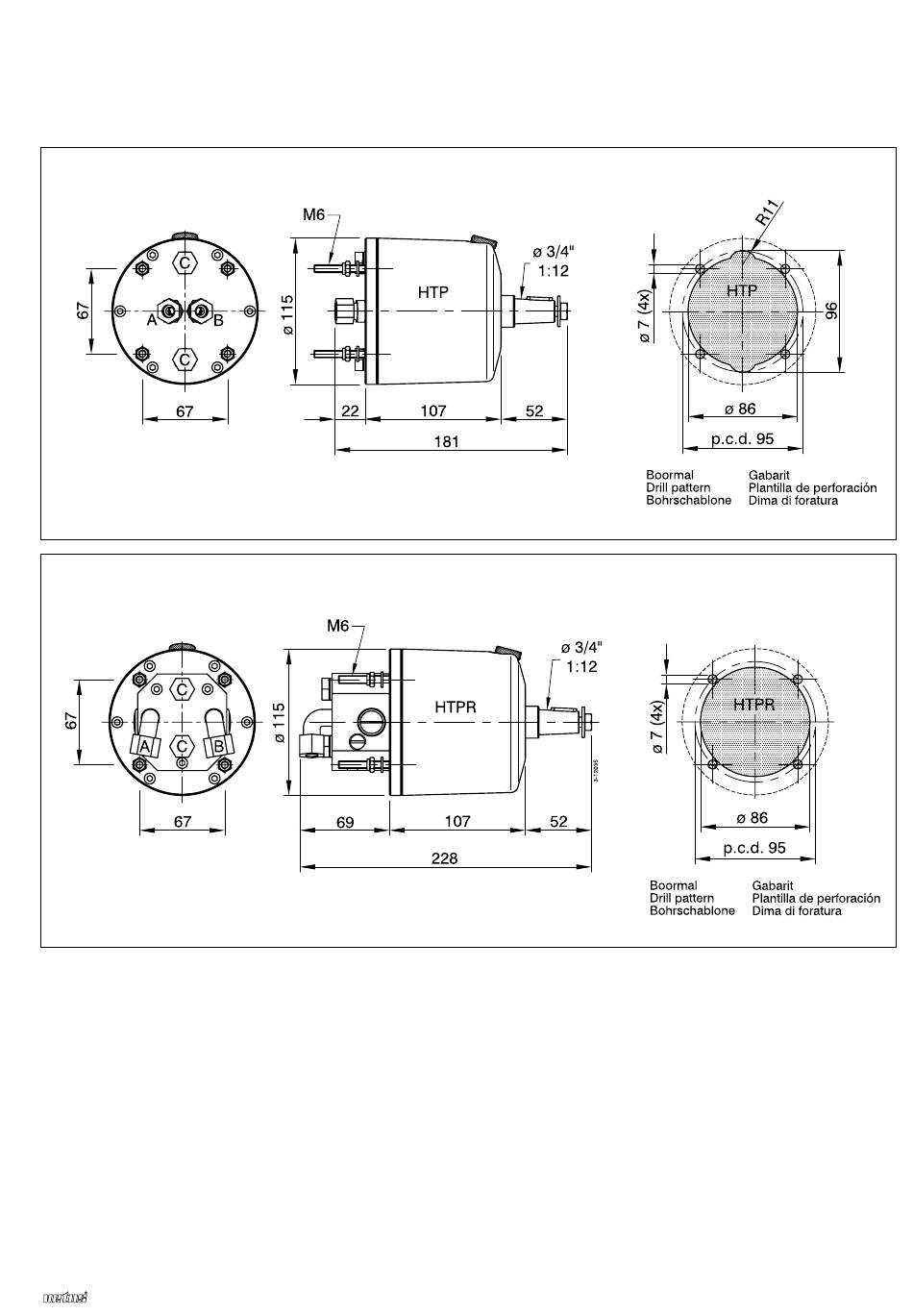

Hoofdafmetingen
Overall dimensions
HTP20, HTP30, HTP42
HTP20R, HTP30R, HTP42R
Aansluitingen
A, B Aansluiting cilinder
C Aansluiting vereffeningsleiding
Connections
A, B Cylinder connections
C Balance tube connection
Anschlüsse
A,B Anschlüsse Zylinder
C Anschlüsse Ausgleichsleitung
Hydraulic Steering Systems 30 - 175 kgm
Hauptabmessungen
Dimensions principles
Raccordements
A, B
C
Conexiones
A, B
C
Raccordi
A, B
C
Dimensiones principales
Dimensioni principali
Raccordement cylindre
Raccordement ligne de compensation
Conexion cilindro
Conexion tubo de compensación
Raccordi cilindro
Raccordi tubolatura d'equilibratura
37
020105.03
