W -i i
alk n nsTallaTion
dOOR/dOOR SECTION
A standard door/door section consists basically of a single wall panel that
contains an entrance door and several accessories.
components contained in this panel were prewired at the factory. They
include the anti-condensate door opening heater, the pilot light, and switch
and a vapor proof interior light.
The door was factory installed on the door panel framing fixture, checked for
squareness and for proper operation under controlled conditions.
CAUTION! While installing the door/door section, extreme care must be
taken to avoid twisting the panel or handling the assembly in such a manner
that it is not square when it is installed. The self-closing feature, door closure
operation and a perfect gasket seal all depend a great deal upon a SQUARE
and PLUMB door/door section.
After all the wall and door panels have been erected and locked securely
together and all the ceiling panels have been positioned above the wall
panels, the ceiling panels have been locked securely to each other, re-check
the position of the ceiling panels with respect to the wall panels.
Now lock all ceiling panels securely to the wall panels.
Recheck the position of the wall panels with respect to the floor panels and
lock them securely together.
NOTE: When a 1" vinyl floor sealer (screed) is used, no attachment to the
wall panels is required.

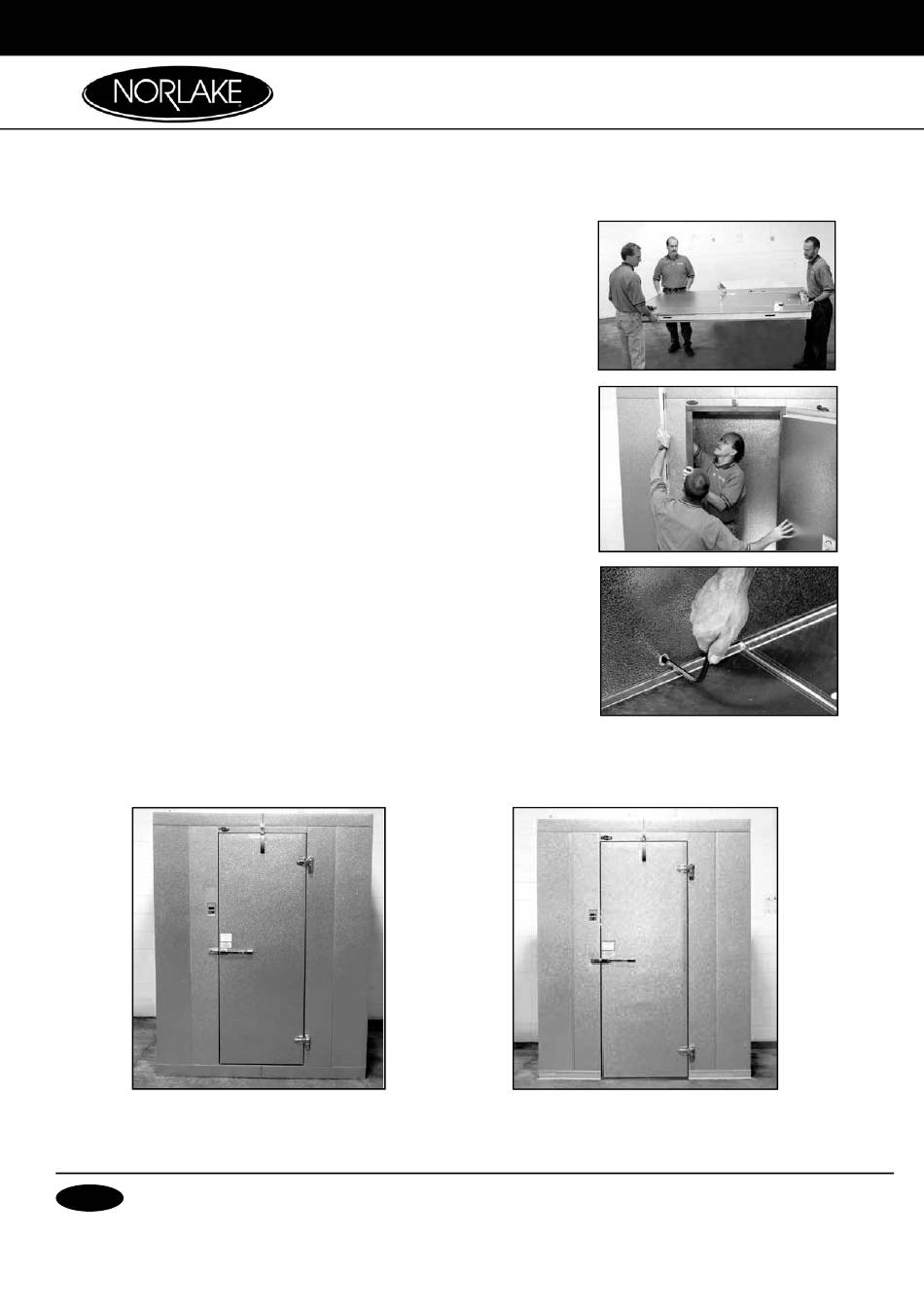

Completed
Walk-in with floor
22
-d /d s
ooR ooR ecTion
2940 Hwy 14 W, Rochester, MN 55901
The electrical
Completed Walk-in floorless- shown
with vinyl floor sealer
