Mazda 626 2001-2002, MX-5 Miata 1999-2005,
Millennia 1995-2002, MPV 1996-1999,
Protege 2001-2004, Protege 5 2001-2004,
Tribute 2001-2006
99-7505
KIT FEATURES
• DIN radio provision with pocket
• ISO DDIN radio provision

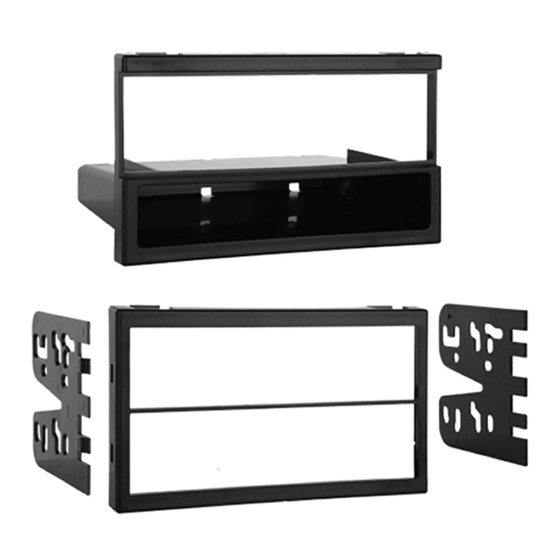

KIT COMPONENTS
A) Radio housing • B) ISO DDIN trim plate • C) ISO DDIN brackets • D) Rear support
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7901 • 70-7903
Antenna Adapter: • Not required
TOOLS REQUIRED
• Ford radio removal keys (2 sets) 86-5618 • Cutting tool • Panel removal tool • Phillips screwdriver • Adjustable wrench
METRA. The World's best kits.
Installation instructions for part 99-7505
C
D
metraonline.com
™
Table of Contents
Dash Disassembly ................................................. 2
Kit Assembly
– DIN radio provision with pocket ............................ 3
–
ISO DDIN radio provision ...................................... 4
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con -
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
© COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
Publicidad
Manuales relacionados para Metra 99-7505
Resumen de contenidos para Metra 99-7505
- Página 1 A) Radio housing • B) ISO DDIN trim plate • C) ISO DDIN brackets • D) Rear support CAUTION! Metra recommends disconnecting the negative bat - tery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local WIRING &...
-
Página 2: Dash Disassembly
(Figure A) 2. Insert (2) sets of Ford radio removal keys (Metra 86-5618), into the sides of the radio until they snap in. (Figure B) 3. Gripping both sets of removal keys,... -
Página 3: Kit Assembly
(Figure C) 5. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation. -
Página 4: Important
Installation instructions for part 99-7505 Kit Assembly IMPORTANT ISO DDIN radio provision If you are having difficulties with the 1. Using a utility knife, carefully cut installation of this product, please call our the center bar out of the ISO DDIN Tech Support line at 1-800-253-TECH. -
Página 5: Características Del Kit
Instrucciones de instalación para la pieza 99-7505 Mazda 626 2001-2002, MX-5 Miata 1999-2005, Indice Millennia 1995-2002, MPV 1996-1999, Desmontaje del tablero ......... 2 Protege 2001-2004, Protege 5 2001-2004, Ensamble del kit Tribute 2001-2006 – Provisión de radio DIN con cavidad ...... 3 99-7505 –... -
Página 6: Desmontaje Del Tablero
(Figura A) 2. Inserte (2) juegos de herramientas de remoción de radio Ford (Metra 86-5618), en los lados hasta que entren a presión. (Figura B) 3. Sujetando ambos lados de las... -
Página 7: Ensamble Del Kit
Metra recomienda que use adaptadores adecuados de acoplamiento de Metra y/o de AXXESS. Vuelva a conectar la terminal negativa de la batería y pruebe el radio para verificar que funcione correctamente. -
Página 8: Importante
Instrucciones de instalación para la pieza 99-7505 Ensamble del kit IMPORTANTE Provisión de radio ISO DDIN Si tiene dificultades con la instalación Con una navaja utilitaria, cuidadosamente de este producto, llame a nuestra línea recorte la barra central del panel de la de soporte técnico al 1-800-253-TECH.
