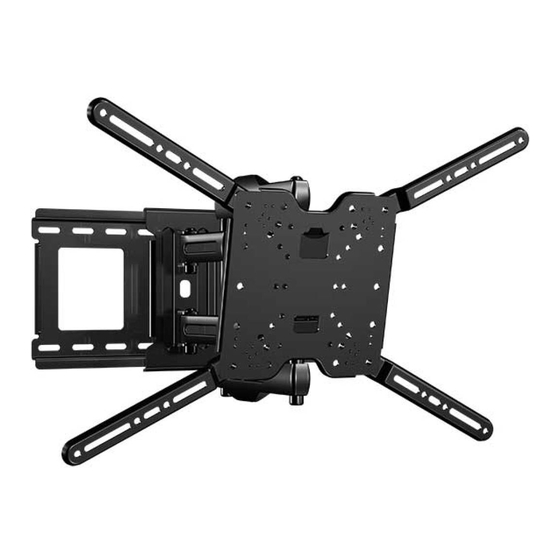

- Página 1 F180c INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-888-333-9952. We’re ready to help! Scan for easy install video san.us/794...
- Página 2 IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Before getting started, let’s make sure this mount is perfect for you! Does your TV weigh more than 100 lb (45.4 kg) including accessories? No — Perfect! 100 lb (45.4 kg) Yes —...
- Página 3 Dimensions NOTE: TV shifts 3 in. (7.61 cm) to the right or left when in the home [cm] 23.62 position. Consider this when select- 60.00 15.75 ing the location of your wall mount. 3.00 OFFSET 40.00 7.87 7.61 20.00 3.94 10.00 12°...
- Página 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
- Página 5 STEP 3 Parts and Hardware STEP 2 Parts and Hardware Wall Plate Template Arm Assembly Locking Screw Wall Plate 1/4-20 x 3/4 in. Safety Screw Lag Bolt Washers 10-24 x 1 in. .695 x .350 x.075 in. Lag Bolts Additional Hardware Cable Ties 5⁄16 in.
- Página 6 Concrete Installation Kit CMK1 (NOT INCLUDED) Contact Customer Service at 1-888-333-9952 to have these additional pieces shipped directly to you. 5/16 x 2¾ in. 5/16 x 2¾ in. Fischer UX 10 x 60 Anchor .695 x .350 x .075 in. .695 x .350 x.075 in.
- Página 7 STEP 1 Attach TV Bracket to TV 1-1 Measure Your TV Hole Pattern Measure the width and height of your TV hole pattern in cm. Record your measurements: Width __________cm x Height ________ cm 75 mm = 7.5 cm ≈ 3 in. 100 mm = 10 cm ≈...
- Página 8 1-2 Assemble Your TV Bracket 40.0 x 40.0 Determine which TV bracket configuration to use, A, B, C, or D 15.75 [cm] based on your TV hole pattern measurements. [40.0] 11.81 [30.0] 7.87 15.75 [20.0] [cm] 3.94 [40.0] 7.5 x 7.5 [10.0] 10.0 x 10.0 11.81...
- Página 9 60.0 x 40.0 40.0 x 20.0 23.62 15.75 [60.0] [40.0] 7.87 [20.0] 15.75 [40.0] 7.87 [20.0] 15.75 20.0 x 40.0 [40.0] [cm] [cm] Assemble TV bracket extenders onto TV bracket as illustrated. Assemble TV bracket extenders onto TV bracket as illustrated. Secure using eight screws in the corner holes shown.
- Página 10 1-3 Select TV Screw Diameter 1-4 Select TV Screw Length Standard configurations are shown. For special applications, or if you If your TV has a flat back AND you want your TV closer to the Hand thread screws into the threaded inserts are uncertain about your wall, use the shorter screws.
- Página 11 1-5 Attach TV Bracket Position your TV bracket configuration (A, B, C, or D) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and level. Secure bracket using your screw/washer (Flat Back) or spacer/screw/washer (Round Back / Extra Space) selection. IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
- Página 12 STEP 2A Attach Wall Plate to Wall Wood Stud Option CAUTION: Avoid potential personal injuries and property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) Locate your stud.
- Página 13 Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Remove wall plate template IMPORTANT: Be sure to drill into the center of the stud. IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Install wall plate using lag bolts .
- Página 14 STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option CAUTION: Avoid potential personal injuries and property damage! Concrete Installation Kit CMK1 is not included (see page 6) Contact Customer Service • Mount the wall plate directly onto the concrete surface at 1-888-333-9952 to have the additional •...
- Página 15 Remove the wall plate template and insert four anchors (Fischer UX 10 x 60 - included in the Concrete Installation Kit*). CAUTION: Be sure the anchors are seated flush with the concrete surface. Install wall plate using four lag bolts and four washers (use only the lag bolts and washers from the Concrete Installation Kit*). Tighten the lag bolts only until the washers are pulled firmly against the wall plate.
- Página 16 STEP 3 Attach TV to Wall Plate HEAVY! You may need assistance with this step. Hang the arm onto the wall plate by first hooking the top support, then resting the arm into place. Install locking screws to secure arm to wall plate NOTE: Arm can slide side-to-side along the wall plate for perfect positioning.
- Página 17 HEAVY! You may need assistance with this step. Fold first section of the arm against the wall plate to provide stability. Hang the TV bracket onto the arm by first hooking the top support, then resting the TV into place.
- Página 18 Lock the TV bracket to the arm with safety screw IMPORTANT: This safety screw must be installed to secure the TV bracket onto the arm...
- Página 19 Manage Cables Cables can be routed through the cable channels on the top and bottom of the arm and secured to the arm with zip ties for a cleaner look.
- Página 20 TV Adjustments TILT ADJUSTMENT LEVEL ADJUSTMENT Your TV should adjust easily when moved, then stay in place. To adjust the leveling of your TV, loosen the safety screw , level your TV, then tighten safety screw If your TV is too loose or too tight, adjust the tilt tension knob by hand. IMPORTANT: This safety screw must be installed to secure NOTE: Once your TV is in place, tighten the tilt tension knob to...
- Página 21 REMOVING THE TV HEAVY! You may need assistance with this step. To remove your TV from the arm assembly , disconnect all cables and then reverse the procedures in STEP 3.
- Página 22 Features Fully articulating arm Adjustments allow fi ngertip control creates 3-point movement of TV or restriction of TV movement for optimal viewing position 60.0 40.0 30.0 20.0 12º 10.0 10.0 20.0 30.0 40.0 Cable channels Level adjustments and tie slots hold TV tilts up or 11º...
-
Página 24: Listo Para Comenzar
ESPAÑOL INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Antes de comenzar, verifiquemos que este soporte sea perfecto para usted. ¿Su televisor pesa más de 45.4 kg (100 libras), incluidos los accesorios? No — ¡Perfecto! (45.4 kg) 100 libras Sí... -
Página 25: Piezas Y Accesorios Suministrados
ESPAÑOL Piezas y accesorios suministrados ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada, no devuelva el artículo al distribuidor;... -
Página 26: Seleccione El Diámetro De Los Tornillos Para El Televisor
ESPAÑOL 1-3 Seleccione el diámetro de los 1-4 Seleccione el largo de los tornillos tornillos para el televisor para el televisor Enrosque manualmente los tornillos en los Si el dorso del televisor es plano, utilice los PRECAUCIÓN: tornillos cortos. encastres roscados del dorso del televisor a Verifique que el tornillo o la combinación fin de determinar qué... -
Página 27: Paso 2B Fijar La Placa Mural A La Pared
ESPAÑOL Instale la placa mural usando tornillos tirafondo . Ajuste los tornillos tirafondo solamente hasta que las arandelas queden firmes contra la placa mural PRECAUCIÓN: El uso indebido podría reducir la capacidad de retención de los tornillos tirafondo. NO ajuste en exceso los tornillos tirafondo. PASO 2B Fijar la placa mural a la pared - Opción para hormigón sólido o bloques de cemento PRECAUCIÓN:... -
Página 28: Paso 3 Colgar El Televisor En La Placa Mural
ESPAÑOL PASO 3 Colgar el televisor en la placa mural ¡ELEMENTO PESADO! Es posible que necesite ayuda en este paso. Para colgar el brazo de la placa mural , primero enganche el soporte superior y luego apoye el brazo en su lugar. Instale los tornillos de seguridad para fijar el brazo a la placa mural Pliegue la primera sección del brazo... -
Página 29: Ajustes Del Televisor
ESPAÑOL Ajustes del televisor AJUSTE DE LA INCLINACIÓN AJUSTE DEL NIVEL Para modificar la nivelación de su televisor, afloje el tornillo de seguridad El televisor debe acomodarse fácilmente al moverlo, y luego quedar , nivele su televisor, y luego ajuste el tornillo de seguridad en su lugar. -
Página 30: Descripción
ESPAÑOL Descripción Los ajustes permiten el El brazo completamente articulado crea un 60.0 control manual o la restricción movimiento de 3 puntos para alcanzar una 40.0 30.0 del movimiento del televisor. posición de visualización óptima. 20.0 10.0 12º 10.0 20.0 30.0 40.0 Los canales para... - Página 31 ESPAÑOL...
- Página 32 Thank you for choosing Sanus Vuepoint! Please take a moment to let us know how we did: Call us: 1-888-333-9952 Email us: info@sanus.com Leave a review: vuepoint.sanus.com Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations.
