200H 2R

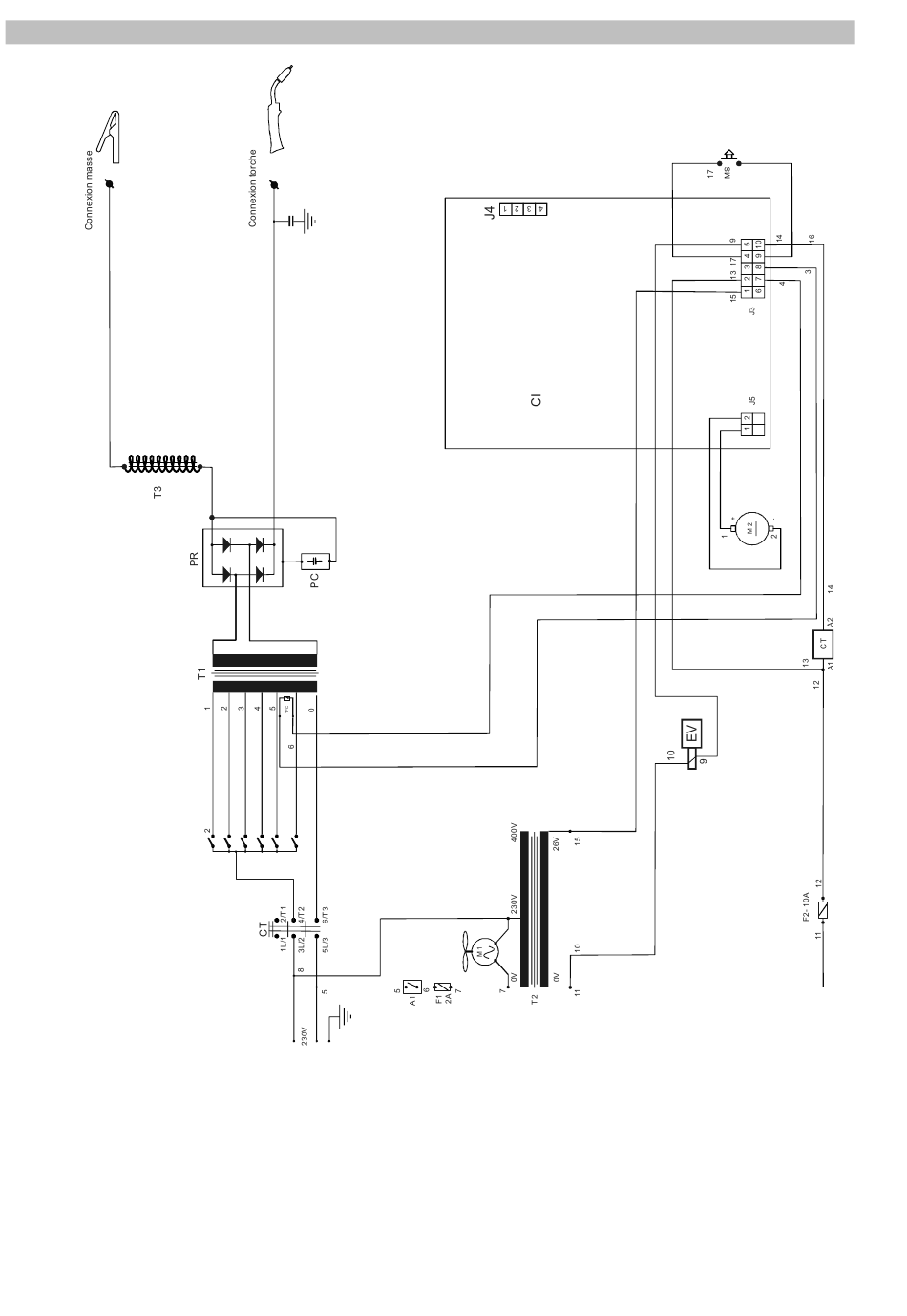

6 - ELECTRIC SCHEMA

A1 – General switch
CI – PCBoard
CT – Contactor
EV – Solenoid valve
F1 – Fuse 2A
F3 – Fuse 10A
M1 – Cooling fan motor
M2 – Wire feeding motor
MS – Torch microswitch
PC – Capacitor board
PR – Rectifier Bridge
T1 – Main transformer
T2 – Auxiliary transformer
T3 – Inductance
TºC – Thermal switch
8
