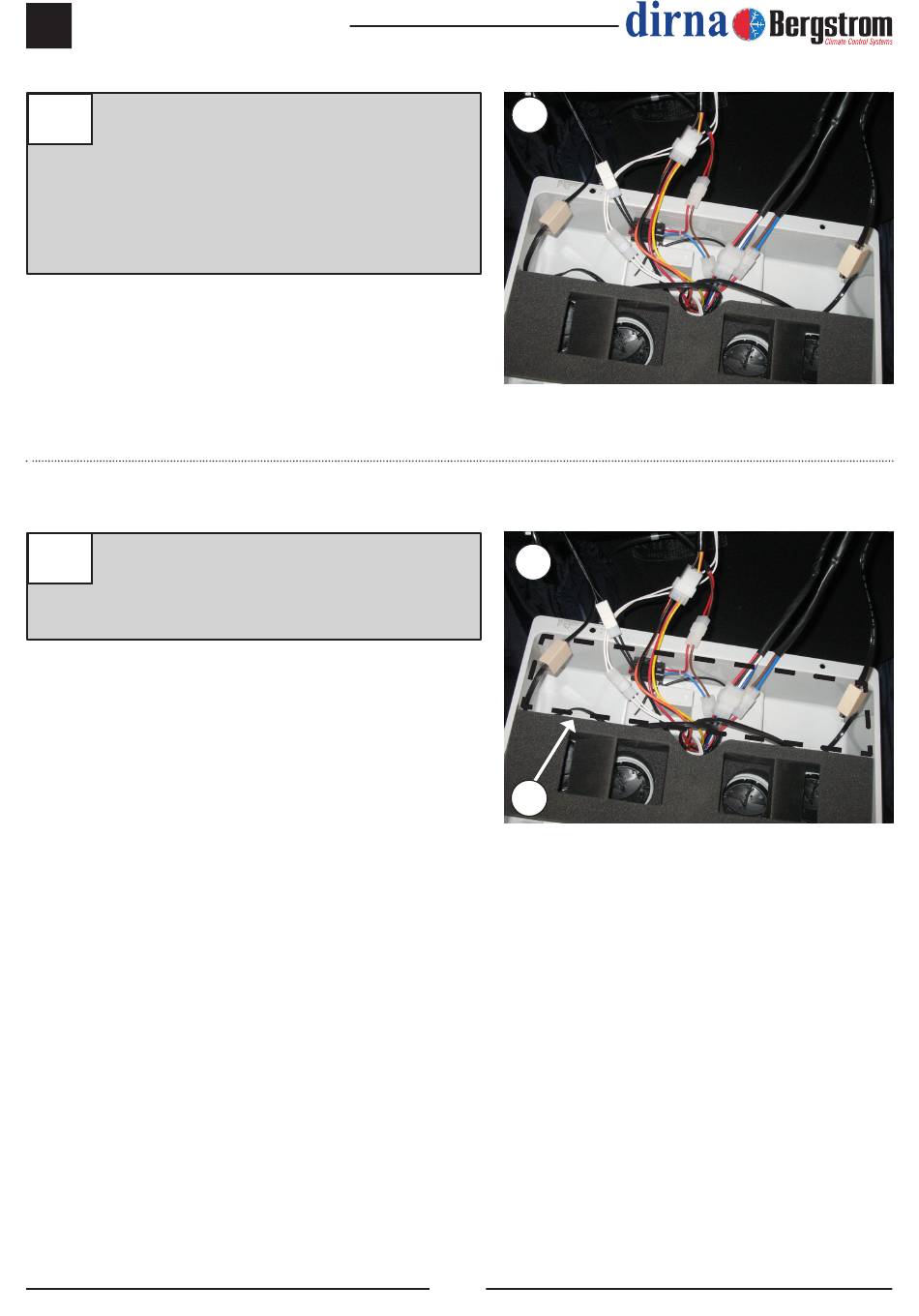

Connect (2) communication cables A, the (2)
10
4-way and (4) 2-way boxes, on the front, with
those of the Compact.
Bear in mind that the two-way box marked
with white cables is joined to the connector
with white cables that comes out of the cen-
tral part of the equipment.
Insert the cables in the hole (H) present on the
11
front to avoid interfering with the adjustment
of the channelling element with the base of
the equipment.
10
11
H
