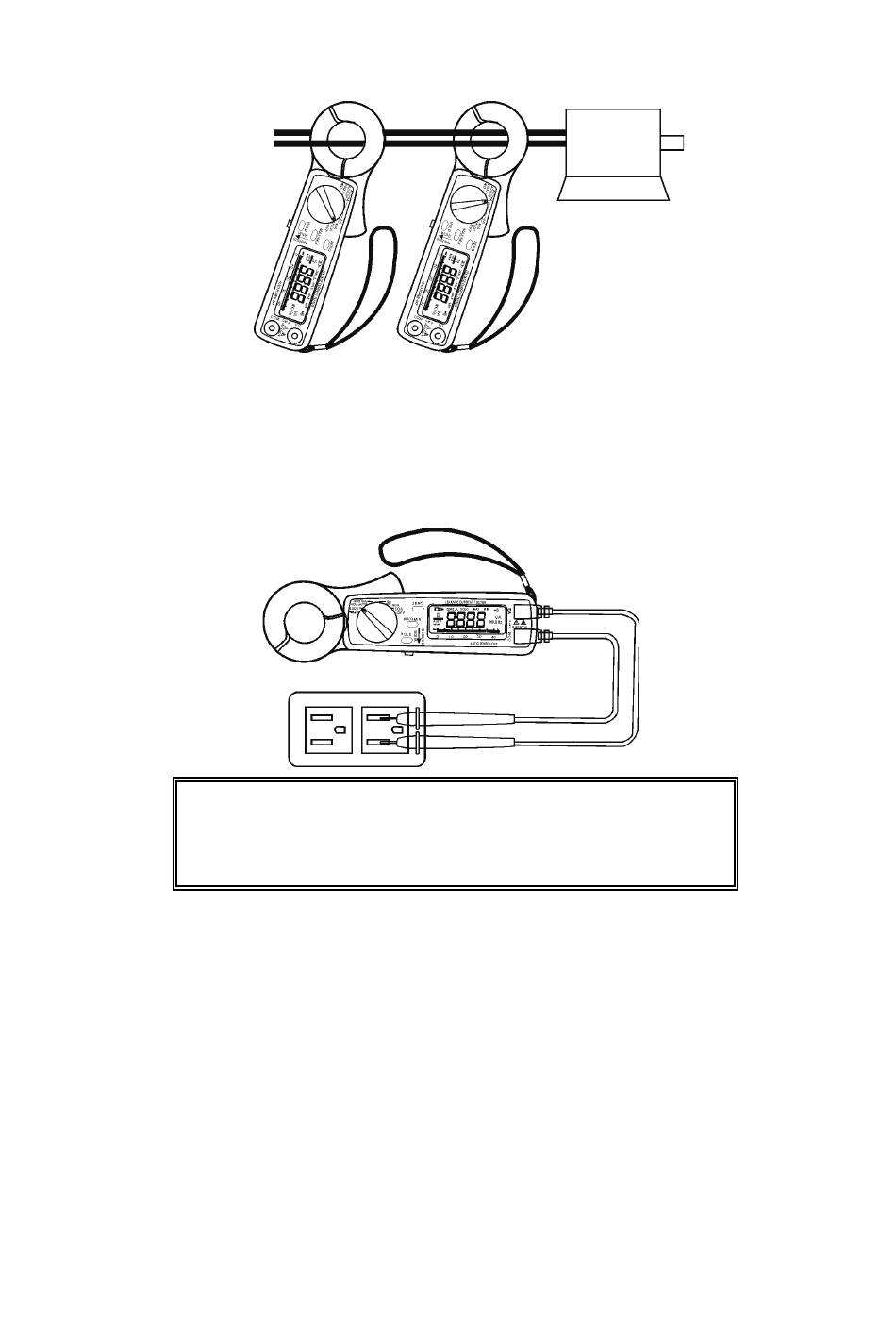

B.AC Load Current Measurement

LOAD CURRENT
a. Set the rotary switch at desired range.
b. Press the trigger to open the jaw and fully enclose only one wire. No
air gap is allowed between the two half jaws.
c. Read the measured value from the LCD display.

C.AC Voltage Measurements

WARNING: Maximum input for DC V is 600,and for AC V is 600. Do
not attempt to take any voltage measurement that exceeds the limits.
Exceeding the limits could cause electrical shock and damage to the
clamp meter.
