Pontiac Grand Prix
1997-2003

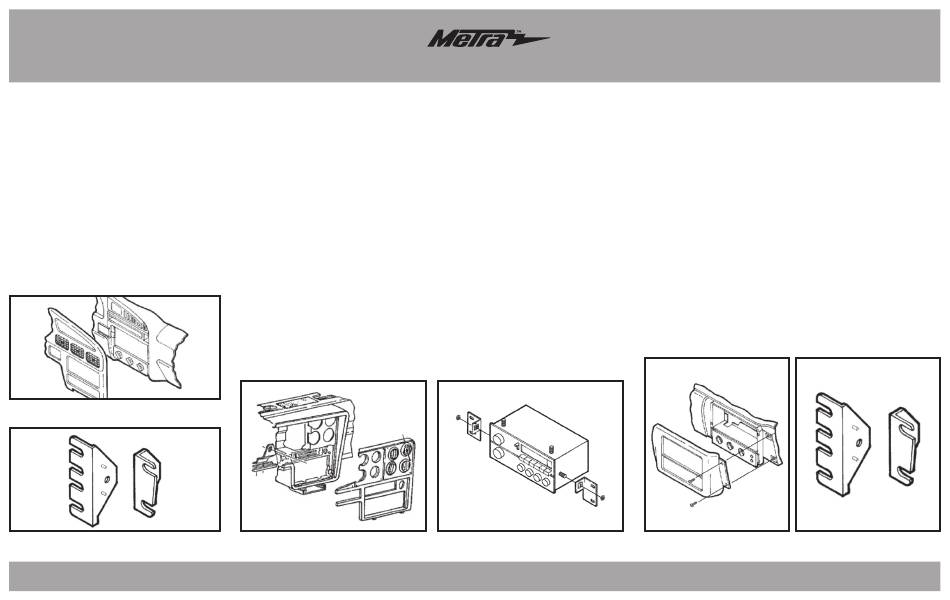

1. Unclip the entire dash trim bezel.
(Figure A)
2. Remove the screws securing
the factory radio and disconnect
the wiring.
3. Locate Bracket Set #9. (Figure B)
Continue to kit assembly
(Figure A)
(Figure B)
Dash Disassembly 99-4544
Pontiac Grand Prix 1985-1987
Bonneville 1982-1986
1. Remove (3) screws from the top edge of the dash trim bezel.
2. Remove (4) screws from the metal steering column trim and
remove the trim.
3. Remove (4) screws exposed at the bottom edge of the dash trim bezel.
4. Remove the cigarette lighter and retainer ring and remove the dash
trim bezel. (Figure A)
5. Remove the hardware securing the factory mounting brackets to
the factory radio. (Figure B)
6. Remove and retain the brackets.
Continue to kit assembly
(Figure A)
(S-10 application
shown as example)
(Figure B)
27
Pontiac Sunfire
1995-1999
1. Open the glove box and remove (2) Phillips screws
exposed on the right edge of the radio trim bezel.
(Figure A)
2. Unclip the bezel and remove.
3. Remove (2) 7mm hex-head screws securing the
factory radio and disconnect the wiring.
4. Locate Bracket Set #9. (Figure B)
Continue to kit assembly
(Figure A) (Figure B)
