Metra Electronics 95-9701 Instrucciones De Instalación página 4

Harley Davidson Road Glide 2015-Up
1. Remove the lower torx screws on
either side holding the wind deflector
wings (only the lower two need to be
removed). (Figure A)
2. Remove (1) 3/16 Allen screw securing
each turn signal. (Figure B)
3. Remove (4) Phillips screws from the
windshield and set the windshield
aside. (Figure C)
4. Remove the top fairing trim clipped to
the top of the radio. (Figure D)
5. Unplug the turn signals.
6. Remove the speaker grills with a panel
removal tool and remove (1) torx screw
from each side.(Figure E)
CAUTION: The fairing will be loose at this
point. Have a helper hold it to keep from
damaging it when removing the screws.
4

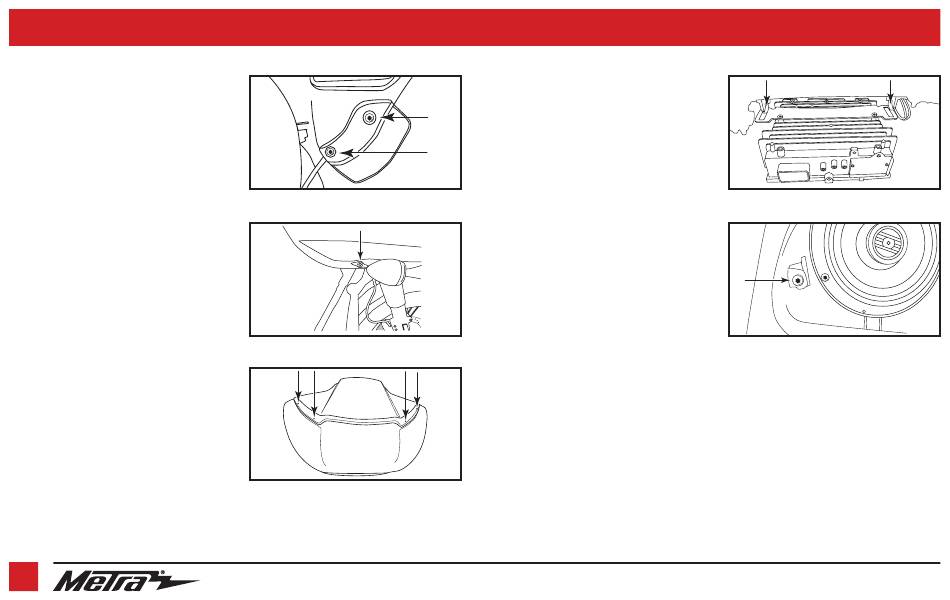

FAIRING DISASSEMBLY
(Figure A)
(Figure B)
(Figure C)
(CONT)
7. Remove the fairing and set aside.
8. Remove (4) 3/16 Allen screws from the
sides of the radio.
Note: These screws will be reused in
Kit Assembly.
CAUTION: Be sure to hold the radio when
removing the last screw so it will not drop.
9. Unplug and remove the radio.
10. Remove (2) Torx screws securing the
fairing bracket attached to the radio.
Note: This bracket will be reused in
re-assembly. Please note the orientation
of the bracket. The curved portion faces
the rear of the bike.
(Figure D)
(Figure E)
|
