Toyota/Lexus/Scion ASWC-1 harness
LEXUS
ES 330
ES 350
GS 300/350/430/430h/460
GS 350/450h/460
GX Series
HS 250h
IS 250/250C/350/350C/ISF
LS 460/600h
LX 470
LX 570
RX Series
RX 330
*Note, these models, the OE steering wheel harness must be 20-pin. Models needing a 28-pin harness must use the
AX-TOY28SWC. This applies to the 2013-up models only.

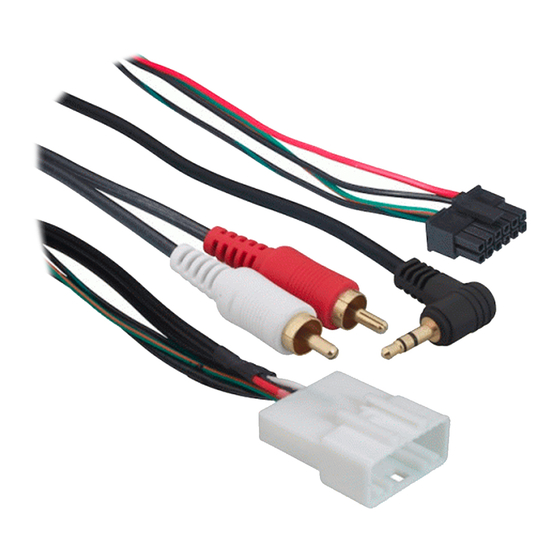

When installing an aftermarket radio, the 70-8114 will allow the user to retain their factory installed
steering wheel controls without having to splice into the factory wiring (ASWC-1 required and sold
separately). In addition, we include RCA's to allow the user to retain their factory installed 3.5mm AUX IN
jack (aftermarket radio must have a audio AUX IN).
INSTALLATION:
Connect the Red wire to 12-volt accessory power.
1.
Connect the Black wire to chassis ground (by itself).
2.
3.
Connect the 3.5mm jack to the steering wheel control input, in the aftermarket radio.
Connect the White RCA jack to the left audio AUX IN of the aftermarket radio (if equipped).
4.
5.
Connect the Red RCA to the right audio AUX IN of the aftermarket radio (if equipped).
NOTE:
1.
Audio devices connected through the 3.5mm jack will be controlled from the audio device, not the
aftermarket radio.
2.
Please refer to the ASWC-1 programming instructions for programming of the ASWC-1.
REV. 3-3-14
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
INSTALLATION INSTRUCTIONS
RX 350
2005-2006
RX400H
2007-2009
SCION
iQ
2006-2008
tC
2009
xA
2003-2009
xB
2010
xD
2006-2010
TOYOTA
2007-2009
4Runner*
2003-2009
Avalon
2008-2009
Camry
2004-2009
Corolla
2004-2006
FJ Cruiser*
1-800-221-0932
70-8114
2007-2010
2006-2008
2012-2013
2006-2013
2006
2006-2012
2008-2013
2003-up
2005-2012
2005-2011
2009-2012
(all trims)
2007-up
axxessinterface.com
Highlander*
2004-up
Land Cruiser
2003-2007
Land Cruiser
(non-NAV)
2008-2013
Matrix*
(standard audio)
2009-2013
Prius
2004-2009
RAV4
2004-2011
Sequoia*
2003-up
Sienna
2004-up
Solara
2004-2008
Tacoma
2005-2012
Tundra
2003-2013
Venza
2009-2012
Yaris
2012
(sedan)
INST70-8114
